Representative photo of this series
Shadowless lights
300 x 220 mm Four-sided shadowless light (LS-HSP326246)
Model LS-HSP326246
- ColourRed, Green, Blue, White
- Emitting area300 x 220 mm
- Voltage24 V
- Cable length500 mm
$1,009.00
In stock - ships the same business day (3 available, order by 2 PM ET)
2.6 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Uses a unique illumination structure: LED light is diffused evenly by special optical material while a flexible circuit board fixes the illumination angle at 90 degrees; after refraction it lights the target area efficiently and evenly. Suited to large objects.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HSP326246 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 300 x 220 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Power, green / blue / white (W) | 65 |
|---|---|
| Power, red (W) | 40 |
| Recommended controller | LS-HMDPC2480-2T, -4T |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HMDPC2480-2T |
Mechanical

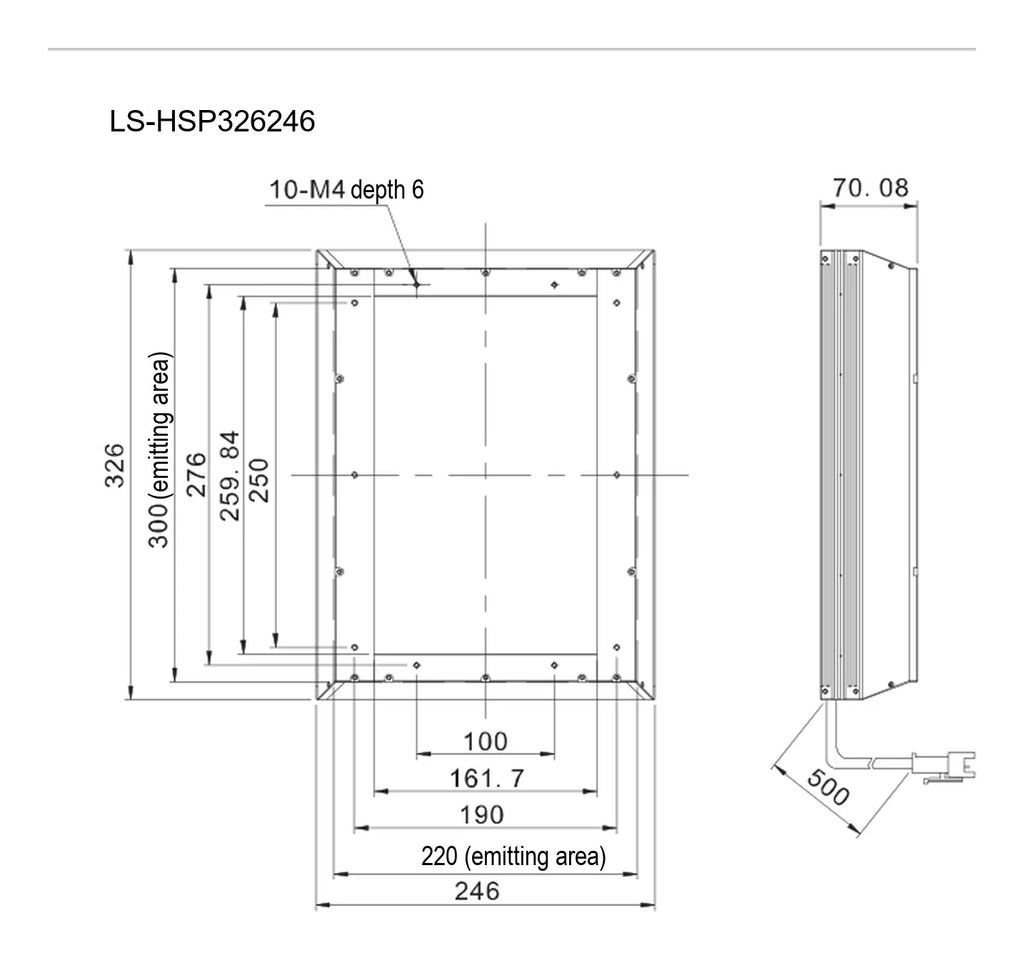

| Size (mm) | L 326 x W 246 |
|---|---|
| Shipping weight | 2.60 kg |
Other models in the Four-sided shadowless light (HSP) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HSP150120 | 123 x 93 mm | $279.00 | 10 in stock | View |
| LS-HSP426246 | 410 x 200 mm | $1,699.00 | 13 in stock | View |
