Bar lights
Combined bar light, 366 x 366 mm (LS-HROL366K)
Model LS-HROL366K
- ColourRed, Green, Blue, White
- TypeStrip / combination
- Voltage24 V
- Cable length500 mm
$229.00
In stock - ships the same business day (4 available, order by 2 PM ET)
3.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Combined bar light with 4 independently controllable lighting units evenly distributed on its four sides; each unit's angle is adjustable from 0 to 90 degrees and its brightness can be controlled separately, making it a very versatile light. Engineers can set angle and brightness to the actual inspection features for the best result; well suited to laboratories and research institutes.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HROL366K |
|---|---|
| Bar angle adjustment | 0 to 90 deg |
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| LED rows | 4 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-HAPC2424P-1T, -2T / LS-HAPC2460P-4T / LS-HMDPC2480-2T, -4T / LS-HDPC2465D-2T, -4T, -6T, -8T |
|---|---|
| Power, green / blue / white (W) | 52.8 |
| Power, red (W) | 38.5 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HAPC2424P-1T, LS-HAPC2460P-4T, LS-HMDPC2480-2T, LS-HDPC2465D-2T |

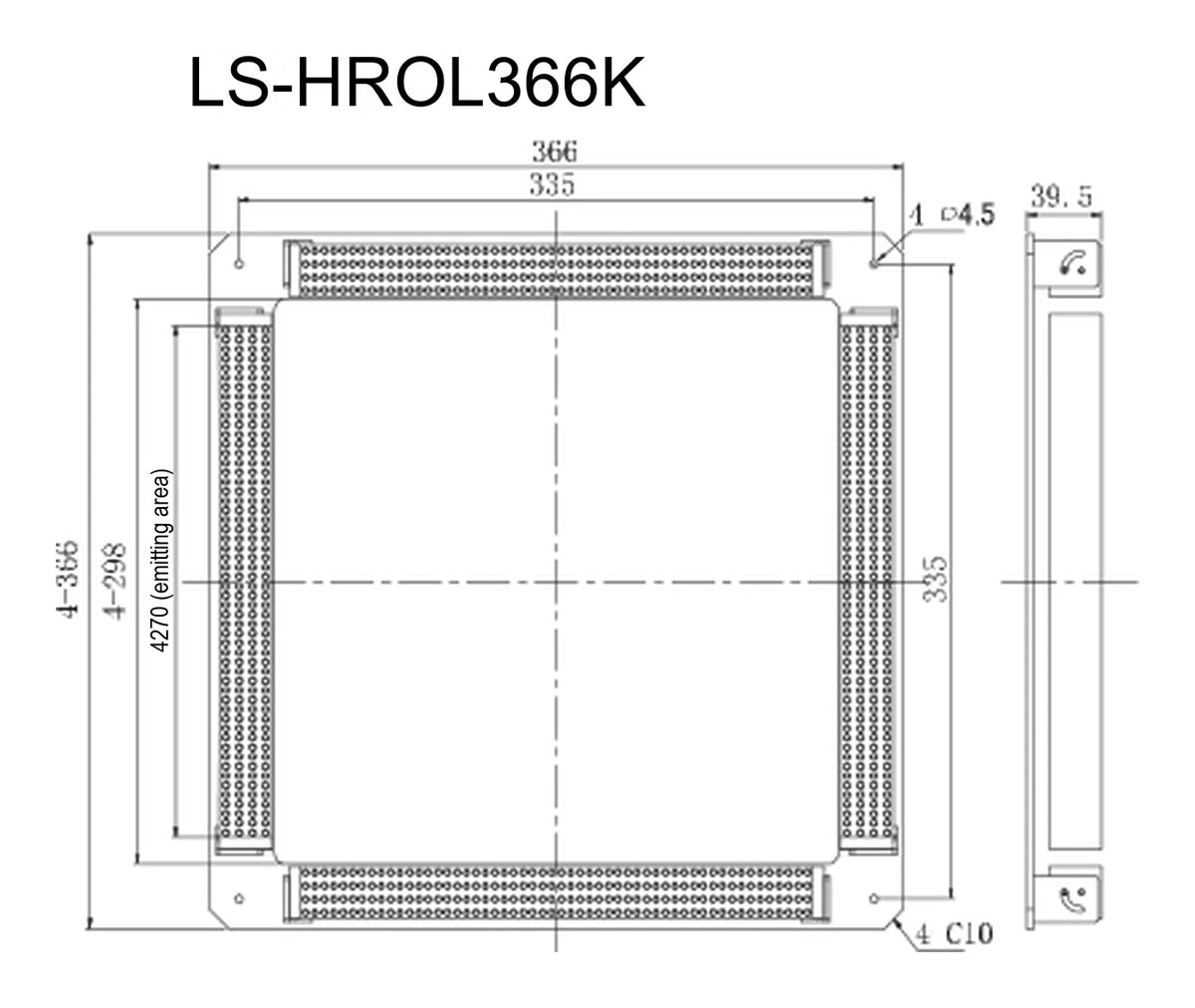

Mechanical
| Size (mm) | L 366 x W 366 |
|---|---|
| Height (mm) | 39.5 |
| Shipping weight | 3.45 kg |
