MAPC analog power supply controller, 2 ch (LS-HMAPC2420-2T)

Model LS-HMAPC2420-2T

Channels2
Output0-24 V
InputAC100-240V 50/60Hz
Total output0.7A
ControlStepless knob

$99.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.4 kg shipping weight

Volume pricing, Net 30 or a formal quote?

MAPC series analog controllers provide brightness-control power for 24 V LED lights. Brightness is set precisely with stepless knobs on the front panel; small, flexible and able to stay lit for long periods.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-HMAPC2420-2T
Control	Stepless knob

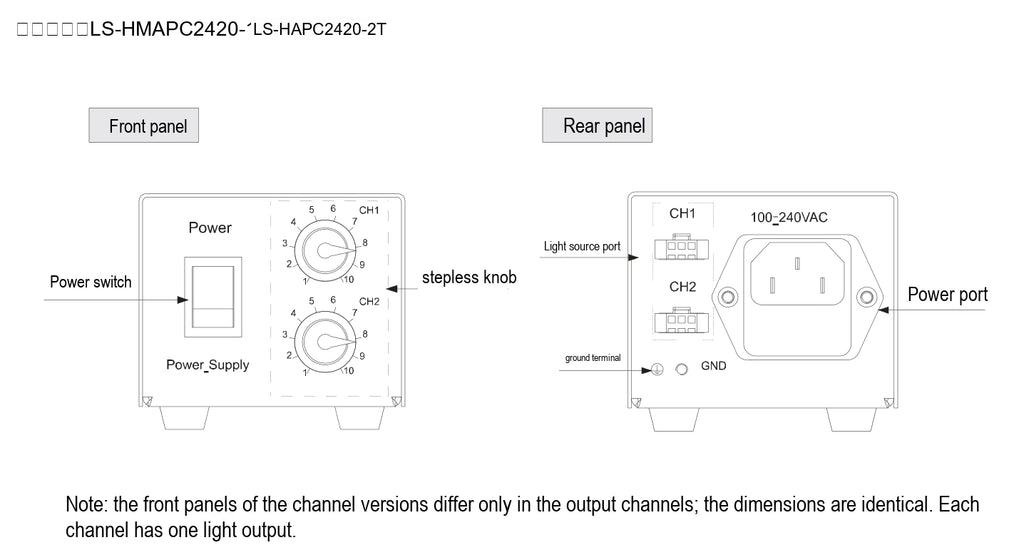

Front panel	Power switch, stepless knobs
Rear panel	Light output ports, power input, ground terminal
Panel note	Front panels for different channel counts differ only in the output channels; outer dimensions are otherwise the same. One channel drives one light output.
Control (perform)	Knob

Electrical

Input voltage	AC100-240V 50/60Hz
Output voltage	0-24 V
Trigger input	No
Channel / output	C2 O2 (2 channels, 2 outputs)
Single channel current	0.7A
Total output current	0.7A
Channels	2

Mechanical

Shipping weight	0.40 kg

Other models in the MAPC analog power supply controller series

See the category

Model	Size / key data	Price	Availability	Link
LS-HMAPC2420-1T	1 ch	$89.00	3 in stock	View
