Representative photo of this series
Coaxial lights
40 x 40 mm Corner coaxial light (LS-HHCOLC40)
Model LS-HHCOLC40
- ColourRed, Green, Blue, White
- Emitting area40 x 40 mm
- Voltage24 V
- Recommended controllersLS-HAPC2424P-1T, -2T / LS-HAPC2460P-4T
$109.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Corner coaxial light in which the prism and the light source are combined into one; small and space-saving, with good uniformity and high brightness, plus a specially coated beam splitter that reduces light loss.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HHCOLC40 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 40 x 40 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-HAPC2424P-1T, -2T / LS-HAPC2460P-4T |
|---|---|
| Power, green / blue / white (W) | 6 |
| Power, red (W) | 5 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HAPC2424P-1T, LS-HAPC2460P-4T |
Mechanical

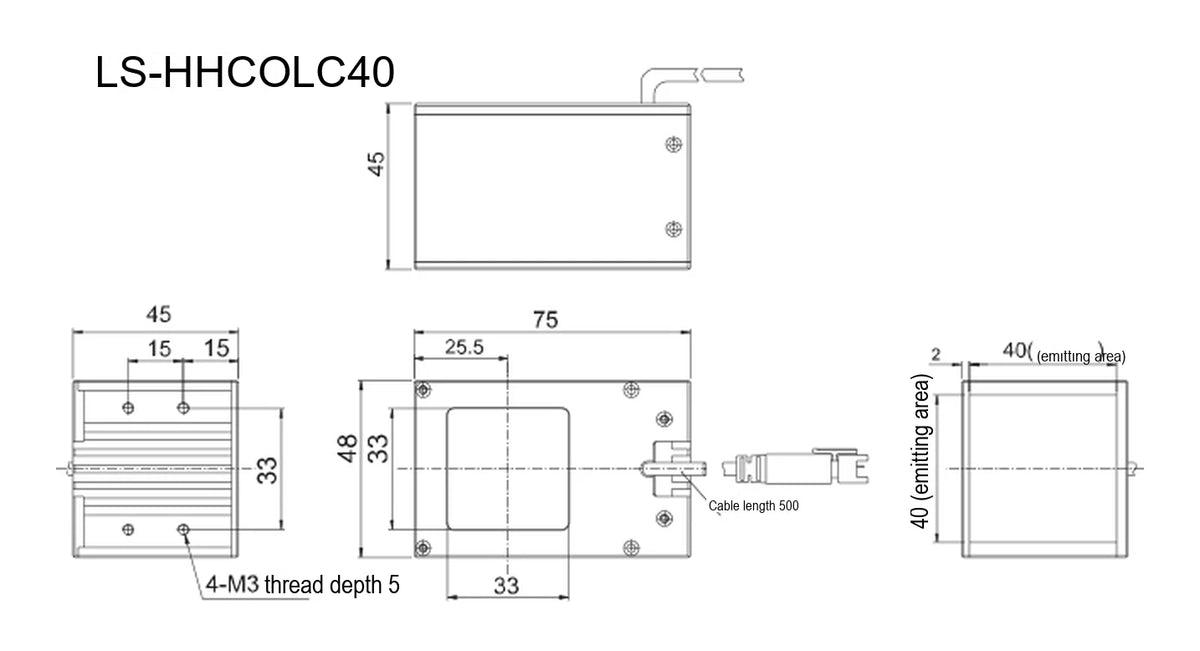

| Mounting | M3/M4 threads (per drawing) |
|---|---|
| Shipping weight | 0.30 kg |
Other models in the Corner coaxial light (HCOLC) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HHCOLC26 | 26 x 26 mm | $79.00 | 12 in stock | View |
| LS-HHCOLC5540 | 55 x 40 mm | $139.00 | 10 in stock | View |
| LS-HHCOLC67 | 67 x 67 mm | $179.00 | 14 in stock | View |
| LS-HHCOLC80 | 80 x 80 mm | $219.00 | 11 in stock | View |
