Representative photo of this series
Coaxial lights
40 x 40 mm High-brightness coaxial light (LS-HHCOL40)

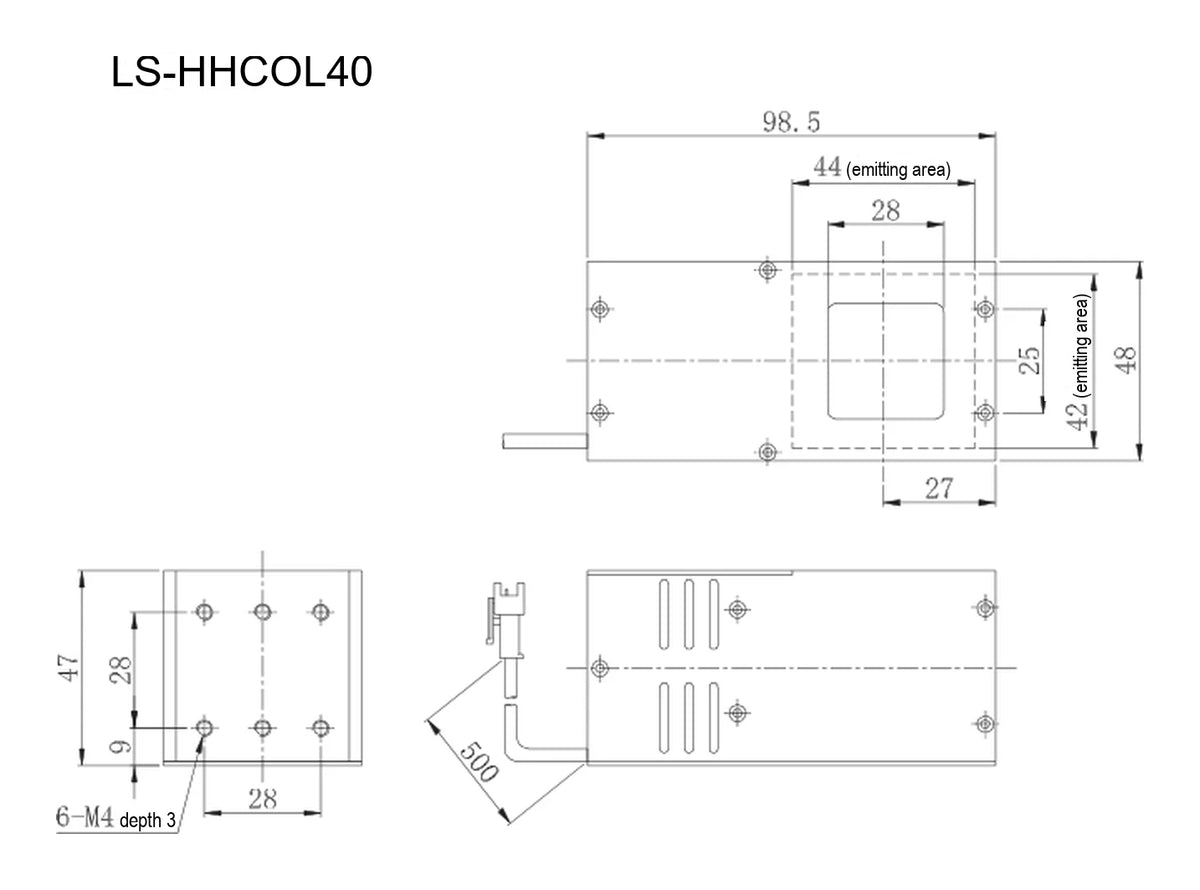

Model LS-HHCOL40
- ColourRed, Green, Blue, White
- Emitting area40 x 40 mm
- Power31 W
- Voltage48 V
$109.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.35 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High-brightness coaxial light using high-power SMD LEDs; brighter and more uniform than a conventional coaxial light. Because of heat dissipation it is somewhat larger than a conventional coaxial light with the same emitting area.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HHCOL40 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 40 x 40 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controller | LS-HDPC48150D-2T |
|---|---|
| Power (W) | 31 |
| Supply voltage (derived) | 48 V DC, derived from the 48 V output of its recommended controllers LS-HDPC48150D-2T |
Mechanical
| Shipping weight | 0.35 kg |
|---|
Other models in the High-brightness coaxial light (HHCOL) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HHCOL60 | 60 x 60 mm | $159.00 | 11 in stock | View |
| LS-HHCOL80P | 80 x 80 mm | $219.00 | 15 in stock | View |
| LS-HHCOL100 | 100 x 100 mm | $289.00 | 13 in stock | View |
