Representative photo of this series. Colour shown for illustration; the actual product may differ
Bar lights
100 x 32 mm High-brightness bar light (LS-HHBL11238K)
Model LS-HHBL11238K
- ColourRed, Green, Blue, White
- Emitting area100 x 32 mm
- Power18 W
- TypeLinear / high intensity
$89.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.4 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High-brightness bar light whose brightness is more than 3 times that of the standard bar light; uses high-power LEDs for long working distances; colour matched to the inspection and length customisable.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HHBL11238K |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| LED rows | 2 |
|---|---|
| Emitting area (mm) | 100 x 32 |
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Power (W) | 18 |
|---|---|
| Recommended controller | LS-HAPC2460P-4T / LS-HMDPC2480-2T, -4T / LS-HDPC2465D-2T, -4T, -6T, -8T |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HAPC2460P-4T, LS-HMDPC2480-2T, LS-HDPC2465D-2T |
Mechanical

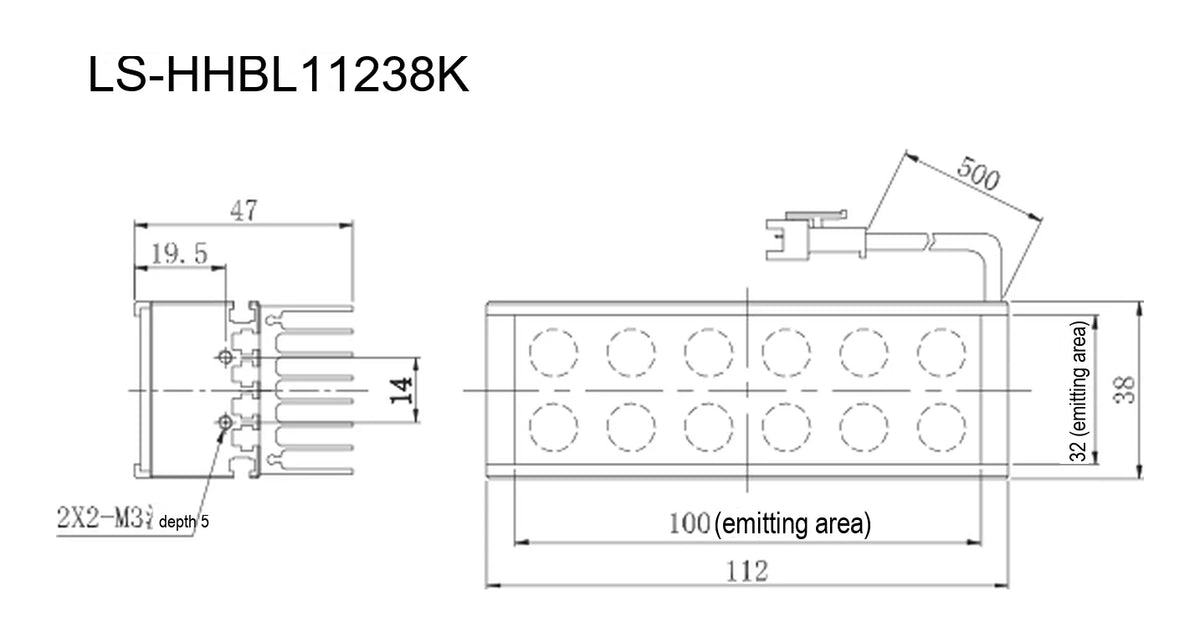

| Mounting | 2 x 2-M3 threads, depth 5 (per drawing) |
|---|---|
| Size (mm) | L 112 x W 38 |
| Height (mm) | 47 |
| Shipping weight | 0.40 kg |
Other models in the High-brightness bar light (HHBL) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HHBL21238K | 200 x 32 mm | $139.00 | 15 in stock | View |
| LS-HHBL31238K | 300 x 32 mm | $189.00 | 16 in stock | View |
| LS-HHBL51238K | 500 x 32 mm | $299.00 | 17 in stock | View |
| LS-HHBL81238K | 800 x 32 mm | $459.00 | 12 in stock | View |
