500 x 400 mm Back light source (LS-BKL-1310)
  • 500 x 400 mm Back light source (LS-BKL-1310)
  • LS-BKL-1310 dimensions (mm)

Representative photo of this series

Backlights

500 x 400 mm Back light source (LS-BKL-1310)

Model LS-BKL-1310-R

  • ColourRed, Green, Blue, White
  • TypeStandard
  • Wavelength red620-630 nm
  • Wavelength green520-530 nm
  • Highest power R of the 20 models in its series: 121 W (series: 0.9 W to 121 W)
$1,269.00

Ships in 2-3 weeks

5.2 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

500 x 400 mm Back light source (LS-BKL-1310)LS-BKL-1310-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BKL-1310: luminous size 500 x 400 mm, overall H 26.3 mm, power R 121 W.

Backlight with high-density LEDs distributed across the bottom of the light source, giving good uniformity and soft, natural, high-brightness light. Flexible sizes with easy customization and several mounting methods.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BKL-1310
Optional accessoriesExtension cable
Service life (red)60000 h continuous at 25 °C, 50% illumination, to 50% decrement
Service life (white)30000 h continuous at 25 °C, 50% illumination, to 50% decrement
Overall L (mm)539
Overall W (mm)414
Overall H (mm)26.3

Light

Wavelength red620-630 nm
Wavelength green520-530 nm
Wavelength blue465-475 nm
Colour temperature white6000-6500 K
Luminous size (mm)500 x 400

Environment and compliance

Storage temperature-20 to 60 °C
Operating temperature0 to 40 °C
Humidity20-85 %RH (non-condensing)

Electrical

ControllerLS-CTL-S69 series, LS-CTL-S28 series, LS-CTL-S125 series for strobe overdrive with 48 V pulses (the selected controller should match the power of the light source)
Power R (W)121
Power G/B/W (W)174
Supply voltage (derived)24 V DC (matches the 24 V output of its recommended constant-voltage controllers)

Mechanical

Shipping weight5.20 kg

Engineering data

Drive and fit the LS-BKL-1310

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 VRed: 5042 mAGreen / Blue / White: 7250 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 174 W
Emitting area500 × 400 mmKeep the camera's field of view inside it for an even background.
Operating temperature0 to 40 °C

Mounting and installation

MountingSee the dimension drawing, Hole positions are not given in the written specifications

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

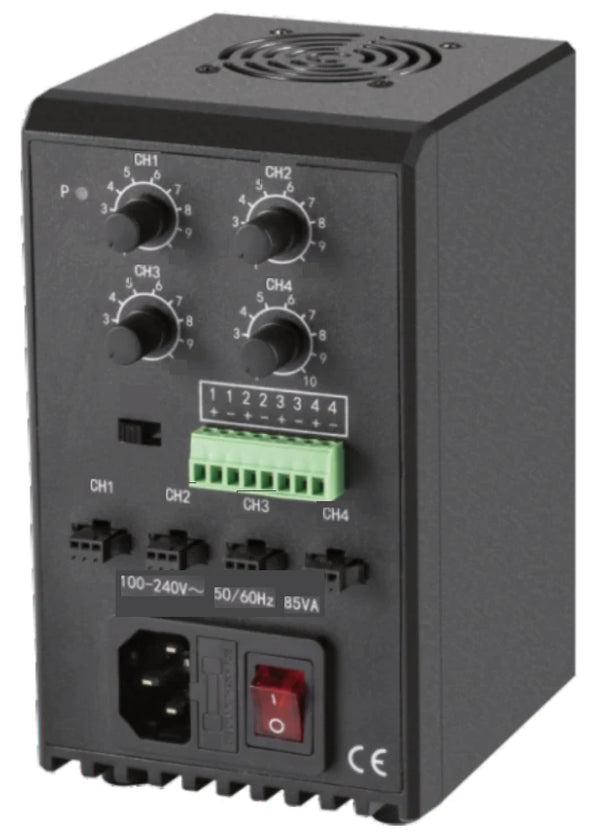

Controllers for this light
