Backlights
300 x 300 mm Side light / edge-lit area light (LS-HFL300300K)
Model LS-HFL300300K
- ColourRed, Green, Blue, White
- Emitting area300 x 300 mm
- TypeEdge-lit / ultra-thin
- Voltage24 V
$399.00
In stock - ships the same business day (4 available, order by 2 PM ET)
1.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Edge-lit area light: the LEDs are distributed evenly along the sides of the light and a light-guide plate and diffuser form an even emitting surface. Sizes are flexible and easy to customise; square or round holes can be made.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HFL300300K |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 300 x 300 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Power, green / blue / white (W) | 31.0 |
|---|---|
| Power, red (W) | 22.0 |
| Recommended controllers | LS-HAPC2424P-1T, -2T / LS-HAPC2460P-4T / LS-HMDPC2480-2T, -4T / LS-HDPC2465D-2T, -4T, -6T, -8T |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HAPC2424P-1T, LS-HAPC2460P-4T, LS-HMDPC2480-2T, LS-HDPC2465D-2T |
Mechanical

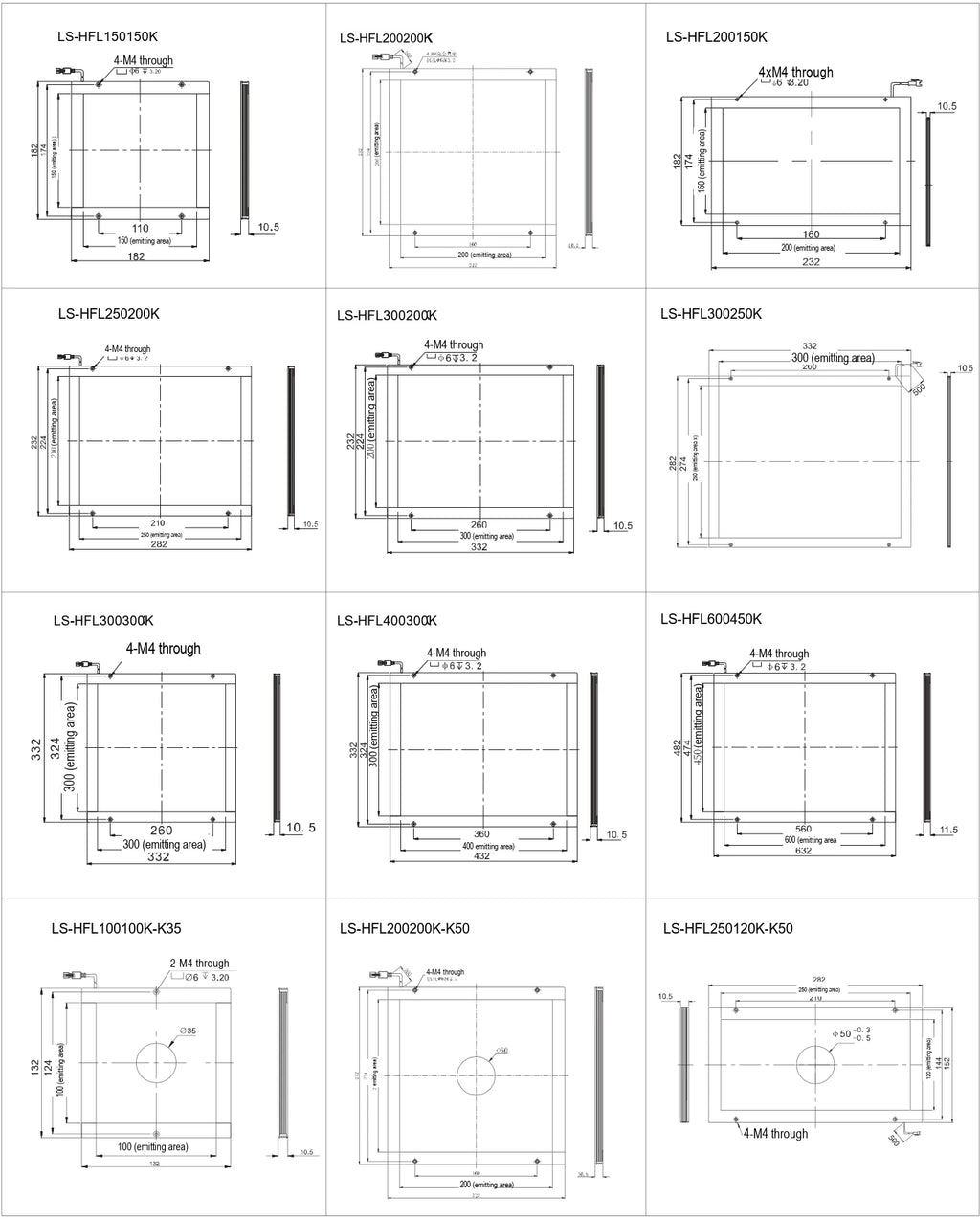

| Mounting | M4 through holes (per drawing) |
|---|---|
| Shipping weight | 1.45 kg |
Other models in the Side light / edge-lit area light (HFL) series
See all 27 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HFL100100K | 100 x 100 mm | $109.00 | 13 in stock | View |
| LS-HFL100100K-K35 | 100 x 100 mm | $109.00 | 12 in stock | View |
| LS-HFL150150K | 150 x 150 mm | $159.00 | 13 in stock | View |
| LS-HFL250120K-K50 | 250 x 120 mm | $189.00 | 14 in stock | View |
| LS-HFL200150K | 200 x 150 mm | $189.00 | 15 in stock | View |
| LS-HFL250150K | 250 x 150 mm | $209.00 | 17 in stock | View |
| LS-HFL250150K-K50 | 250 x 150 mm | $209.00 | 11 in stock | View |
| LS-HFL200200K | 200 x 200 mm | $219.00 | 15 in stock | View |
| LS-HFL200200K-K50 | 200 x 200 mm | $219.00 | 13 in stock | View |
| LS-HFL250200K | 250 x 200 mm | $259.00 | 16 in stock | View |
| LS-HFL300200K | 300 x 200 mm | $289.00 | 11 in stock | View |
| LS-HFL300200K-K50 | 300 x 200 mm | $289.00 | 18 in stock | View |
| LS-HFL250250K-K50 | 250 x 250 mm | $299.00 | 18 in stock | View |
| LS-HFL300250K | 300 x 250 mm | $349.00 | 12 in stock | View |
| LS-HFL400200K-K40 | 400 x 200 mm | $359.00 | 11 in stock | View |
| LS-HFL300300K-K50 | 300 x 300 mm | $399.00 | 14 in stock | View |
| LS-HFL400300K | 400 x 300 mm | $509.00 | 13 in stock | View |
| LS-HFL400300K-K50 | 400 x 300 mm | $509.00 | 14 in stock | View |
| LS-HFL500400K-K70 | 500 x 400 mm | $789.00 | 16 in stock | View |
| LS-HFL600450K | 600 x 450 mm | $1,039.00 | 16 in stock | View |
| LS-HFL600450K-K50 | 600 x 450 mm | $1,039.00 | 16 in stock | View |
| LS-HFL800600K-K50 | 800 x 600 mm | $1,789.00 | 14 in stock | View |
| LS-HFL900618K-K50 | 900 x 618 mm | $2,059.00 | 18 in stock | View |
| LS-HFL568668K-K50 | 1568 x 668 mm | $3,819.00 | 16 in stock | View |
