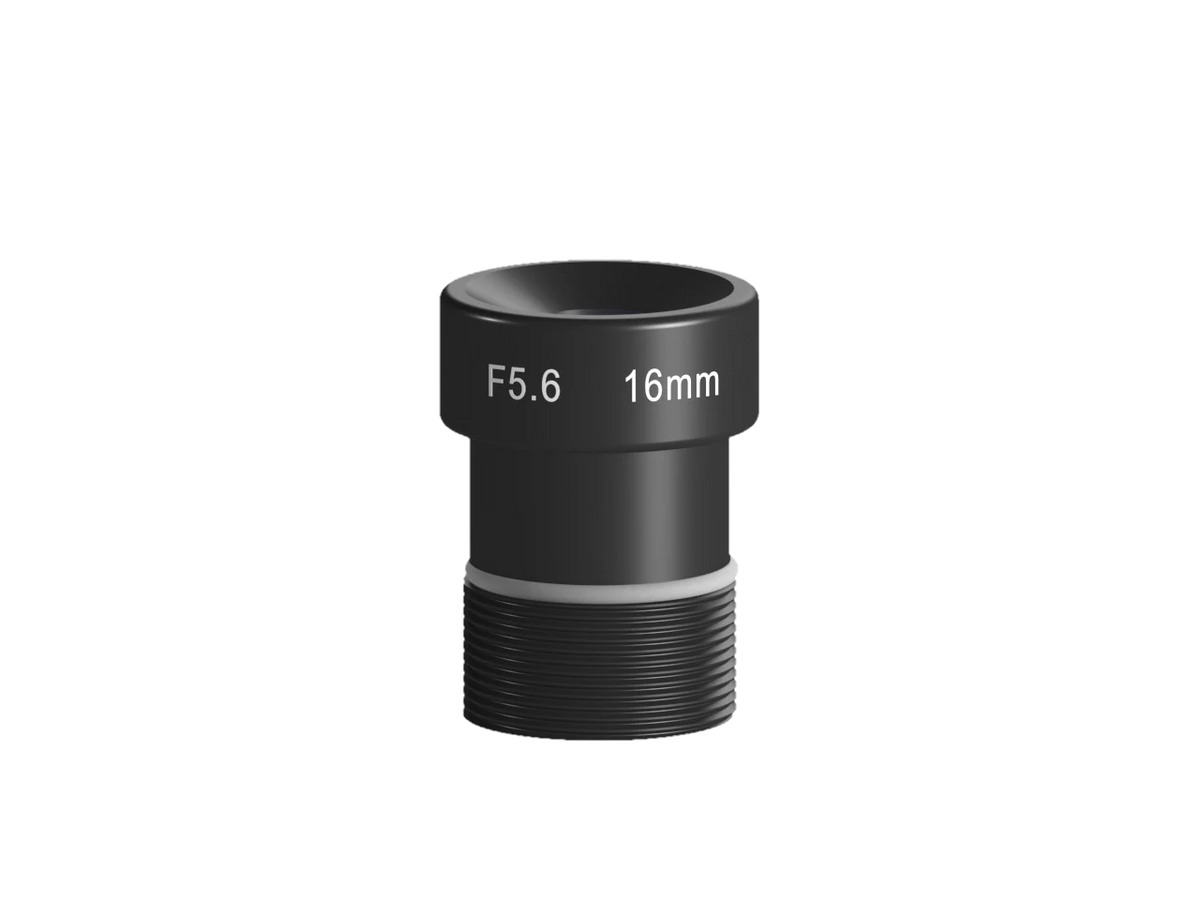

16mm, F5.6, 1/1.7", 12 MP, M12-mount lens (LS-HF1656-12S)
Model LS-HF1656-12S
- Focal length16 mm
- MountM12
- Sensor1/1.7"
- Working distance100 mm ~ ∞
- ApertureF5.6
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.13 kg shipping weight
Volume pricing, Net 30 or a formal quote?
16mm, F5.6, 1/1.7", 12 MP, M12-mount lens. Optimized for industrial machine-vision working distances 12 MP high resolution with highly consistent sharpness across the image
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HF1656-12S |
|---|
Optics
| Focal length | 16 mm |
|---|---|
| F-number | F5.6 |
| Image size | Φ9.4 mm(1/1.7′′) |
| TV distortion | ≤ 0.15% |
| Working distance range | 100 mm ~ ∞ |
| Field of view | D(8.86 mm):31°; H(7.37 mm):26°; V(4.91 mm):17° |
| TTL | 23.28 ~ 26.08 mm |
Interfaces and I/O
| Connector type | S-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Dimension | Φ14 × 18.93 mm |
|---|---|
| Shipping weight (estimated) | 0.13 kg |
