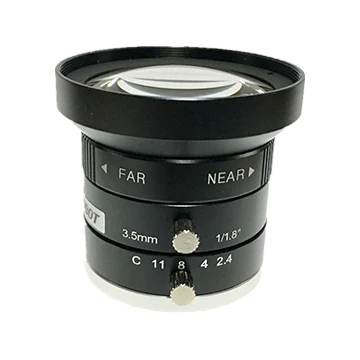

3.5 mm focal length, 1 MP lens, 1/1.8”, F2.4 (LS-HF03524M-MP)
  • 3.5 mm focal length, 1 MP lens, 1/1.8”, F2.4 (LS-HF03524M-MP)
  • LS-HF03524M-MP dimensions (mm)

Machine vision lenses

3.5 mm focal length, 1 MP lens, 1/1.8”, F2.4 (LS-HF03524M-MP)

Model LS-HF03524M-MP

  • Focal length3.5 mm
  • MountC-mount
  • Sensor1/1.8"
  • ApertureF2.4 ~ C
$99.00

In stock - ships the same business day (2 available, order by 2 PM ET)

0.23 kg shipping weight

Volume pricing, Net 30 or a formal quote?

3.5 mm focal length, 1 MP lens, 1/1.8”, F2.4. High image sharpness with good uniformity Maximum aperture F2.4

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HF03524M-MP
Minimum object distance0.15 m

Optics

Focal length3.5 mm
F-numberF2.4 ~ C
Image sizeΦ9 mm(1/1.8'')
TV distortion-1.23%
Field of viewD(8.96 mm):104.5°; H(7.38 mm):94.3°; V(4.92 mm):78.0°
Iris controlManual
Focus controlManual
Filter threadM40.5 × 0.5
Distortion-1.23%

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10 ~ 50°C
CertificationRoHS2.0

Mechanical

Flange back length17.526 mm
DimensionΦ42*37.7 mm
Weight89.39 g
Shipping weight (estimated)0.23 kg
