Dome lights
66 mm Dome light (LS-HDL100)
Model LS-HDL100
- ColourRed, Green, Blue, White
- Voltage24 V
- Cable length500 mm
- Emitting dia.66 mm
$139.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Dome light is a diffuse-reflection shadowless light: optimally arranged LEDs shine into a spherical diffuse reflector, which spreads the light smoothly and evenly over the object surface. Its large diffusing surface lights the object evenly from all directions; suited to uneven, reflective objects, even curved metal surfaces.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HDL100 |
|---|---|
| Expected life | Red and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
| Outer dia. (mm) | 116 |
| Camera hole dia. (mm) | 25 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting dia. (mm) | 66 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Power, green / blue / white (W) | 14.5 |
|---|---|
| Power, red (W) | 7.5 |
| Recommended controllers | LS-HMAPC2420-1T, -2T / LS-HAPC2424P-1T, -2T |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HMAPC2420-1T, LS-HAPC2424P-1T |

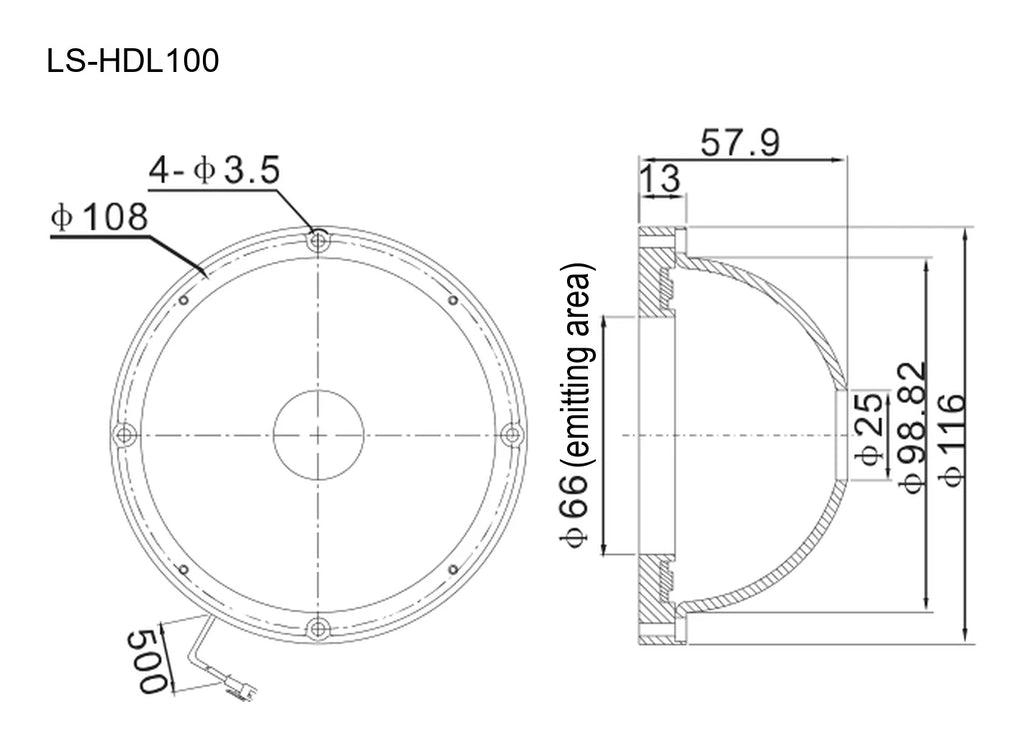

Mechanical
| Height (mm) | 57.9 |
|---|---|
| Shipping weight | 0.30 kg |
