Representative photo of this series. Colour shown for illustration; the actual product may differ
Coaxial lights
60 x 60 mm Parallel coaxial light (LS-HCOPL60P)
Model LS-HCOPL60P
- ColourRed, Green, Blue, White
- Emitting area60 x 60 mm
- Power4.5 W
- Voltage24 V
$159.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Diffuse light from high-power, high-brightness LEDs passes through a special lens module and optical glass to form parallel light, so it reaches every point of the object at the same angle; especially suited to defect inspection on smooth flat surfaces and to laser-engraving recognition.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HCOPL60P |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 60 x 60 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-HMAPC2420-1T, -2T / LS-HAPC2424P-1T, -2T |
|---|---|
| Power (W) | 4.5 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-HMAPC2420-1T, LS-HAPC2424P-1T |
Mechanical

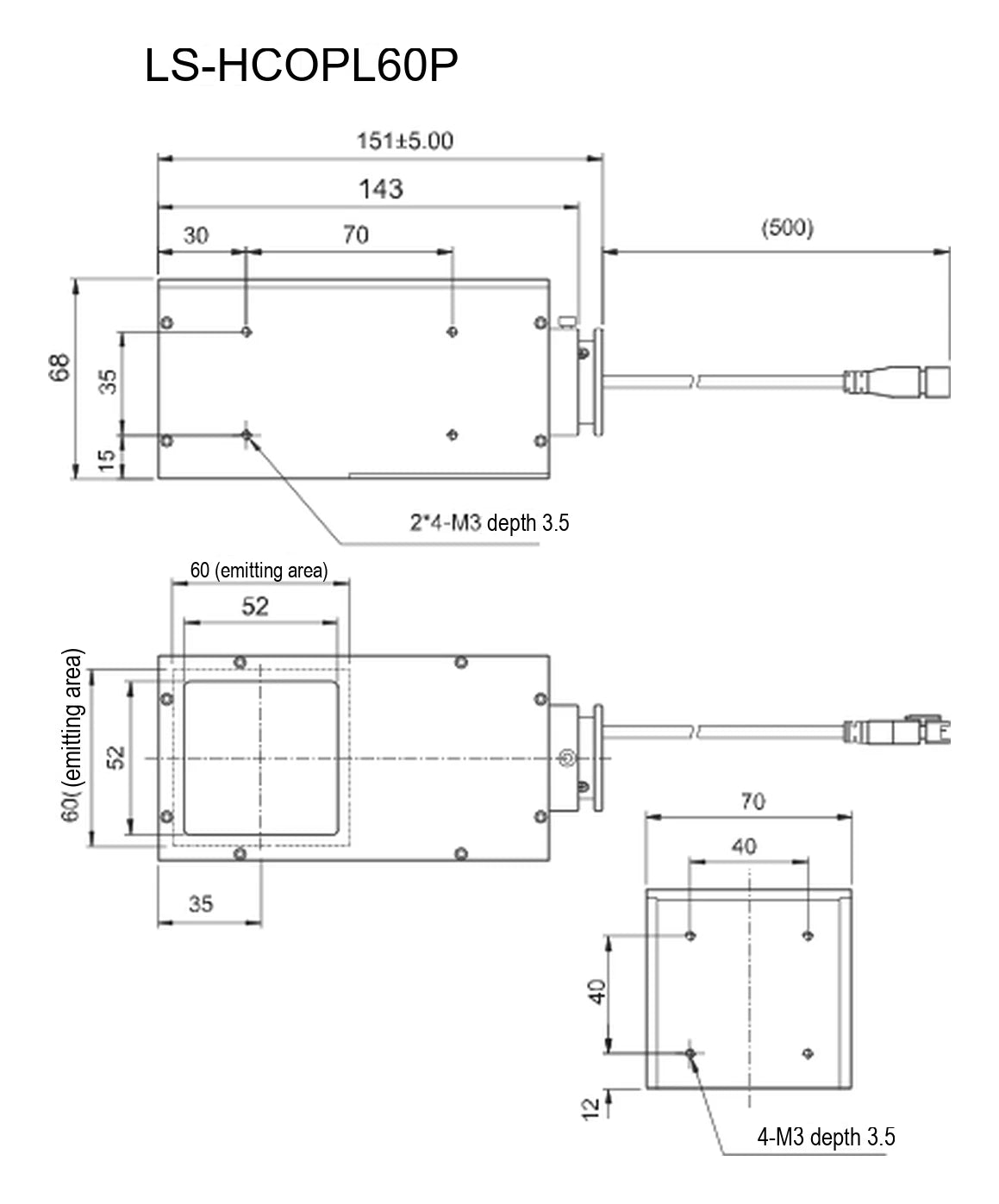

| Overall length (mm) | 151 +/-5 |
|---|---|
| Shipping weight | 0.70 kg |
Other models in the Parallel coaxial light (HCOPL) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-HCOPL30P | 30 x 30 mm | $89.00 | 14 in stock | View |
| LS-HCOPL40P | 40 x 40 mm | $109.00 | 13 in stock | View |
