Bar light (HBL)
  • Bar light (HBL)

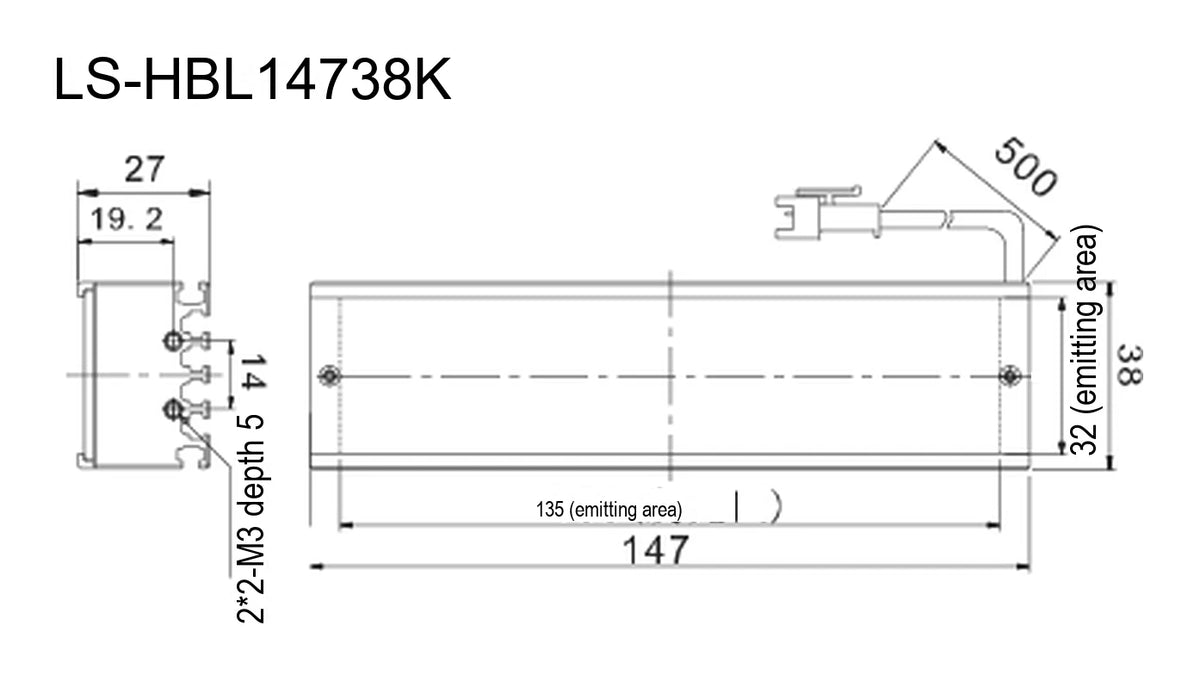

  • LS-HBL14738K dimensions (mm)

Representative photo of this series

Bar lights

135 x 32 mm Bar light (LS-HBL14738K)

Model LS-HBL14738K

  • ColourRed, Green, Blue, White
  • Emitting area135 x 32 mm
  • TypeStandard
  • Voltage24 V
$259.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.35 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

Bar lights are especially suited to imaging large features; lengths range from a dozen-odd millimetres to several metres and the light colour is chosen as needed. Several bar lights can be combined freely and the illumination angle adjusted to the inspection. (Length can be customised: length = 57 + 45 x N; above 1002 mm splicing is recommended.)

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HBL14738K
Expected lifeRed and white: 30000 h continuous, decays to 50% (typical one-year decay 8-15%); blue and green: 30000 h continuous, decays to 60% (typical one-year decay 10-18%)
Support1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view

Interfaces and I/O

Cable length (mm)500

Light

LED rows6
Emitting area (mm)135 x 32
Wavelength red620-630 nm
Wavelength green525 nm
Wavelength blue470 nm
Colour temperature white5000-8000 K

Environment and compliance

Operating environmentAmbient about 25 °C, operating temperature within 35 °C

Electrical

Recommended controllersLS-HAPC2424P-1T, -2T / LS-HAPC2460P-4T / LS-HMDPC2480-2T, -4T / LS-HDPC2465D-2T, -4T, -6T, -8T
Power, green / blue / white (W)10.0
Power, red (W)7.5
Supply voltage (derived)24 V DC, derived from the 24 V output of its recommended controllers LS-HAPC2424P-1T, LS-HAPC2460P-4T, LS-HMDPC2480-2T, LS-HDPC2465D-2T

Mechanical

Mounting2 x 2-M3 threads, depth 5 (per drawing)
Size (mm)L 147 x W 38
Height (mm)27
Shipping weight0.35 kg

Other models in the Bar light (HBL) series

See all 66 models
ModelSize / key dataPriceAvailabilityLink
LS-HBL5718K 45 x 12 mm $149.00 13 in stock View
LS-HBL5728K 45 x 22 mm $149.00 13 in stock View
LS-HBL5738K 45 x 32 mm $149.00 13 in stock View
LS-HBL10218K 90 x 12 mm $209.00 11 in stock View
LS-HBL10228K 90 x 22 mm $209.00 15 in stock View
LS-HBL10238K 90 x 32 mm $209.00 13 in stock View
LS-HBL14718K 135 x 12 mm $259.00 14 in stock View
LS-HBL14728K 135 x 22 mm $259.00 12 in stock View
LS-HBL19218K 180 x 12 mm $279.00 10 in stock View
LS-HBL19228K 180 x 22 mm $279.00 12 in stock View
LS-HBL19238K 180 x 32 mm $279.00 12 in stock View
LS-HBL23718K 225 x 12 mm $359.00 13 in stock View
LS-HBL23728K 225 x 22 mm $359.00 12 in stock View
LS-HBL23738K 225 x 32 mm $359.00 13 in stock View
LS-HBL28218K 270 x 12 mm $299.00 11 in stock View
LS-HBL28228K 270 x 22 mm $299.00 14 in stock View
LS-HBL28238K 270 x 32 mm $299.00 11 in stock View
LS-HBL32718K 315 x 12 mm $339.00 13 in stock View
LS-HBL32728K 315 x 22 mm $339.00 14 in stock View
LS-HBL32738K 315 x 32 mm $339.00 15 in stock View
LS-HBL37218K 360 x 12 mm $379.00 15 in stock View
LS-HBL37228K 360 x 22 mm $379.00 12 in stock View
LS-HBL37238K 360 x 32 mm $379.00 12 in stock View
LS-HBL41718K 405 x 12 mm $519.00 18 in stock View
