Backlights
50 x 42 mm Ultrathin flank back light (LS-FTC5042)
Model LS-FTC5042
- ColourRed, Green, Blue, White
- Emitting area100mm x 100mm
- Voltage24 V
- TypeEdge-lit / ultra-thin
$89.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Ultrathin side-lit back light down to 7 mm thickness that is easy to install in narrow spaces, with high uniformity; sizes can be customized.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FTC5042 |
|---|---|
| Customizable | length and width, colour and colour temperature, cable length, installation method |
| FOV | 1~190mm |
Optics
| Recommended working distance | 1~200mm |
|---|
Interfaces and I/O

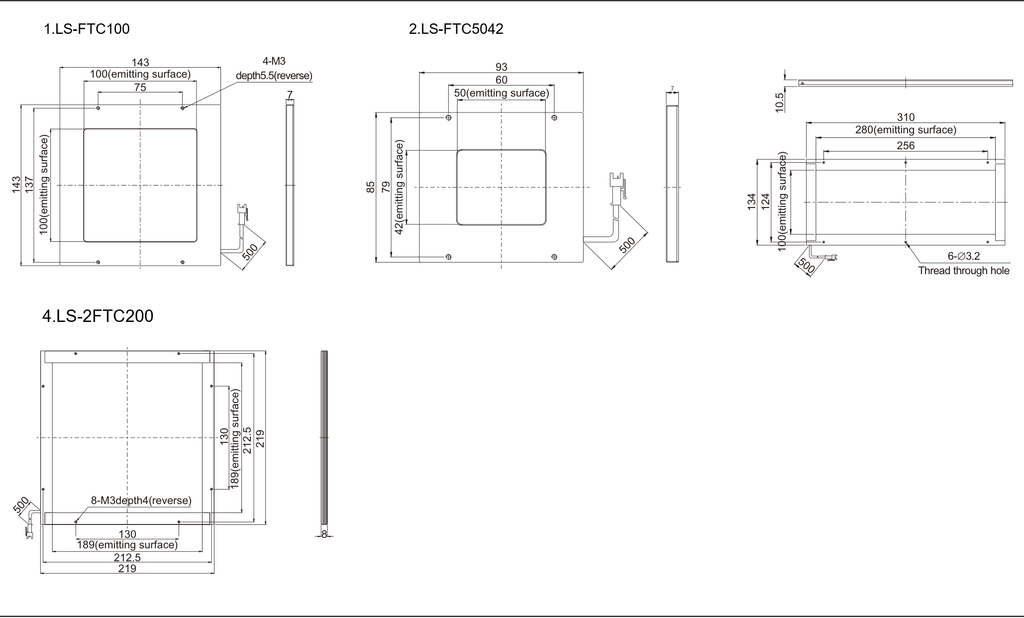

| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Min. emitting area | 100mm x 100mm |
|---|---|
| Max. emitting area | 200mm x 200mm |
| Colours (overview) | red / green / blue / white |
| Colour temperature of white | 6600K |
| Custom wavelengths | UV & IR light can be customized as required |
| Emitting surface (mm) | 50 x 42 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controller | Analog controller, digital controller, high power controller |
| Power, R (W) | 7.7 |
| Power, G/B/W (W) | 11.6 |
Mechanical
| Weight (g) | 110 |
|---|---|
| Thickness (mm) | 7 |
Other models in the Ultrathin flank back light (FTC) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FTC100 | 100 x 100 mm | $109.00 | 12 in stock | View |
| LS-2FTC280100 | 280 x 100 mm | $179.00 | 12 in stock | View |
| LS-2FTC200 | 189 x 189 mm | $209.00 | 11 in stock | View |
