Representative photo of this series
Shadowless lights
142 mm Low angle shadowless light (LS-FPR150)
Model LS-FPR150
- ColourRed, Green, Blue, White
- Emitting area142 mm
- Voltage24 V
- Power31.7W/39.9W
$219.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.55 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Low-angle shadowless ring light with a special emitting structure for uniform emission; efficient low-angle illumination strengthens surface characteristics, highlights defect contrast and reduces reflections and flare.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FPR150 |
|---|---|
| FOV | 1~150 mm |
| Note | UV & IR light can be customized as required. |
Optics
| Recommended working distance | 10~100 mm |
|---|
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
| Cable polarity | 1: +, 2: NC, 3: - |
Light
| Colour temperature of white | 6600 K |
|---|---|
| Emitting surface dia. (mm) | 142 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Power (R) | 11.5W |
| Power (G/B/W) | 19.2W |
| Power | 31.7W/39.9W |
| Input voltage | DC 24V (max) |
Mechanical
| Min. diameter | dia. 80 |
|---|---|
| Max. diameter | dia. 180 |
| Weight | 329g |

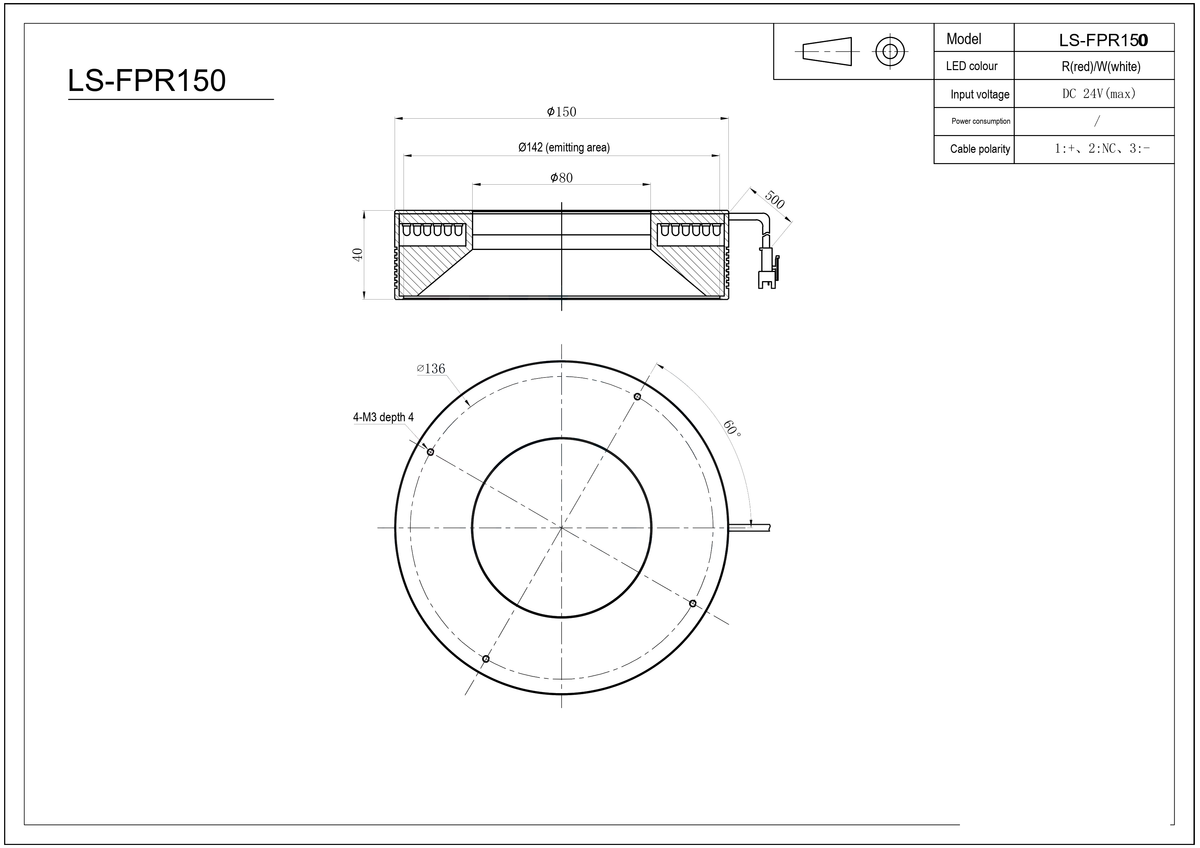

| Dimension | Outer dia. 150mm,Inner dia. 80mm,Height 40mm |
| Mounting holes | 4-M3 depth 4 |
Other models in the Low angle shadowless light (FPR) series
See all 11 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FPR50 | Red, Blue, Green, White · 24 V | $89.00 | 12 in stock | View |
| LS-FPR67 | Red, Blue, Green, White · 24 V | $119.00 | 10 in stock | View |
| LS-FPR80 | 73 mm | $129.00 | 10 in stock | View |
| LS-FPR94 | 87 mm | $139.00 | 12 in stock | View |
| LS-FPR100 | 80 mm | $139.00 | 15 in stock | View |
| LS-FPR120 | 113 mm | $179.00 | 16 in stock | View |
| LS-FPR140 | Red, Blue, Green, White · 24 V | $219.00 | 12 in stock | View |
| LS-FPR160 | 150 mm | $229.00 | 15 in stock | View |
| LS-FPR180 | 170 mm | $259.00 | 12 in stock | View |
| LS-FPR230 | Red, Blue, Green, White · 24 V | $339.00 | 17 in stock | View |
