Representative photo of this series
Backlights
120 x 120 mm Back light (LS-FL120120K)
Model LS-FL120120K
- ColourWhite, Green, Blue, Red
- Emitting area120 x 120 mm
- Voltage24V
- Power10.0 W
$129.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.6 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Back light is distributed LED uniformly at the bottom of the light, and forms a uniform irradiated light on the surface through diffuser. Mainly used for detection of contour size and so on.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FL120120K |
|---|---|

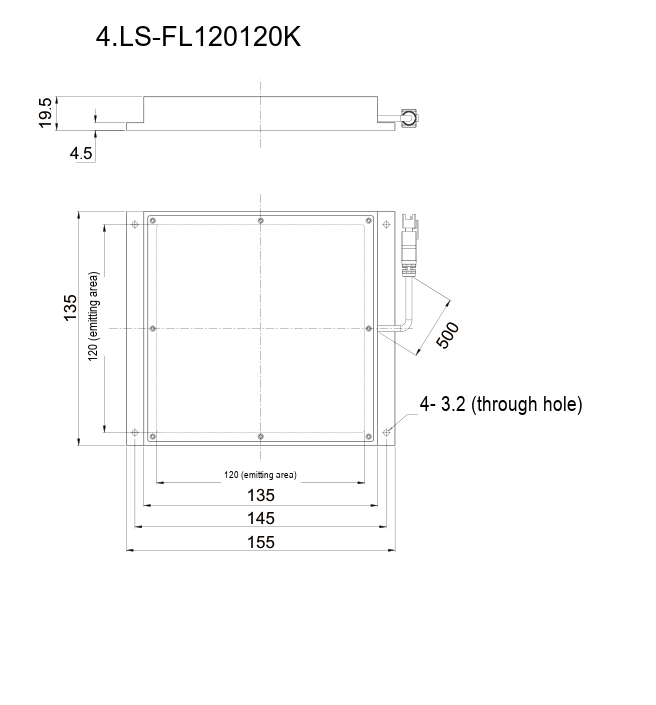

| Outline L x W x H (mm) | 155 x 135 x 19.5 |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 120 x 120 |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Matched controller model | LS-APC2424K, LS-CPL2430D |
| Power W/G/B (W) | 10.0 |
| Power R (W) | 10.0 |
Mechanical
| Mounting | through holes in the flange |
|---|---|
| Shipping weight | 0.60 kg |
Other models in the Back light (FL series) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FL5050K | 50 x 50 mm | $89.00 | 19 in stock | View |
| LS-FL7070K | 70 x 70 mm | $99.00 | 13 in stock | View |
| LS-FL100100K | 100 x 100 mm | $109.00 | 15 in stock | View |
| LS-FL150100K | 150 x 100 mm | $129.00 | 11 in stock | View |
| LS-FL180150K | 180 x 150 mm | $169.00 | 18 in stock | View |
| LS-FL200150K | 200 x 150 mm | $189.00 | 18 in stock | View |
| LS-FL200200K | 200 x 200 mm | $219.00 | 18 in stock | View |
| LS-FL250250K | 250 x 250 mm | $299.00 | 12 in stock | View |
