Machine vision lenses

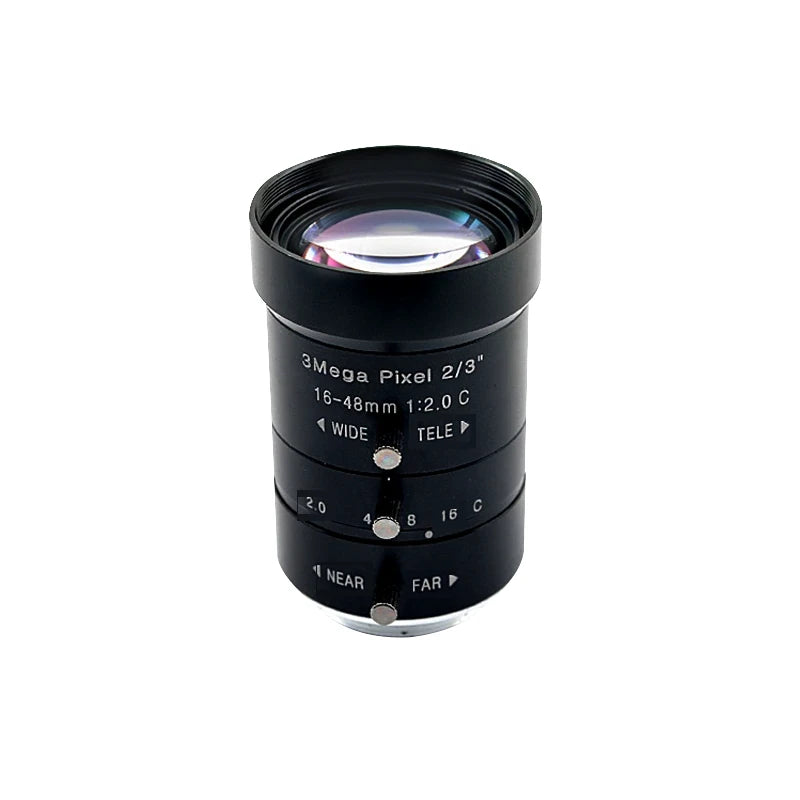

Zoom lens, 16-48 mm, 2/3", C-mount (LS-FFL-1708)
Model LS-FFL-1708
- Focal length16-48mm
- MountC-mount
- Sensor2/3"
- Resolution3
- Field of view29.5-9.5 degree
$519.00
Ships in 2-3 weeks
0.28 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Zoom lens zoom in and out of images by moving a lens inside the lens to change the position of focus, thereby changing the length of focus and the size of the view Angle.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1708 |
|---|---|
| Image format | 2/3" |
| Type | Zoom Lens |
| D/fˊ | F2.0 |
| F.O.V (D/H/V) | 29.5-9.5 degree |
| Optical | Manual/locked |
| Structure | Aluminum alloy (anode black)+12G |
Optics
| MTF | 3MP |
|---|---|
| Focal length | 16-48mm |
| Max.Aperture Ration | F2.0 |
| Iris Type | Manual |
| Back focal length | 17.53mm |
| M.O.D ( m ) | 0.20m |
| Field of view | 29.5-9.5 degree |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 3 |

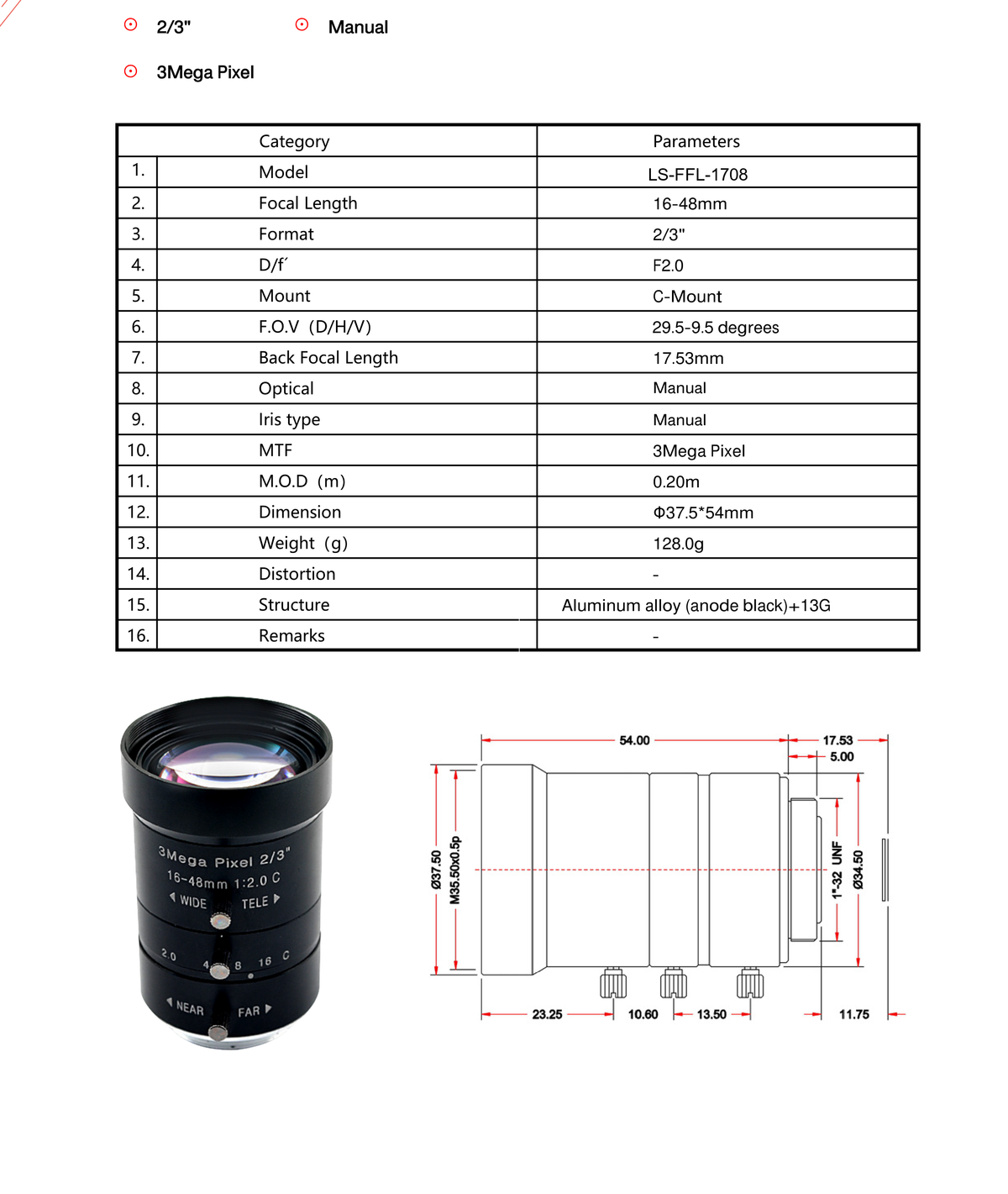

Mechanical
| Mount | C |
|---|---|
| Dimension | dia. 37.5*54 |
| Weight (g) | 128.0g |
Other models in the Zoom lens (LS-FFL-S170) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1705 | 8-50 mm, 1/2.3", C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1706 | 10-50 mm, 1/1.8", C-mount | $519.00 | Ships in 2-3 weeks | View |
| LS-FFL-1707 | 12-36 mm, 2/3", C-mount | $519.00 | Ships in 2-3 weeks | View |
