Machine vision lenses

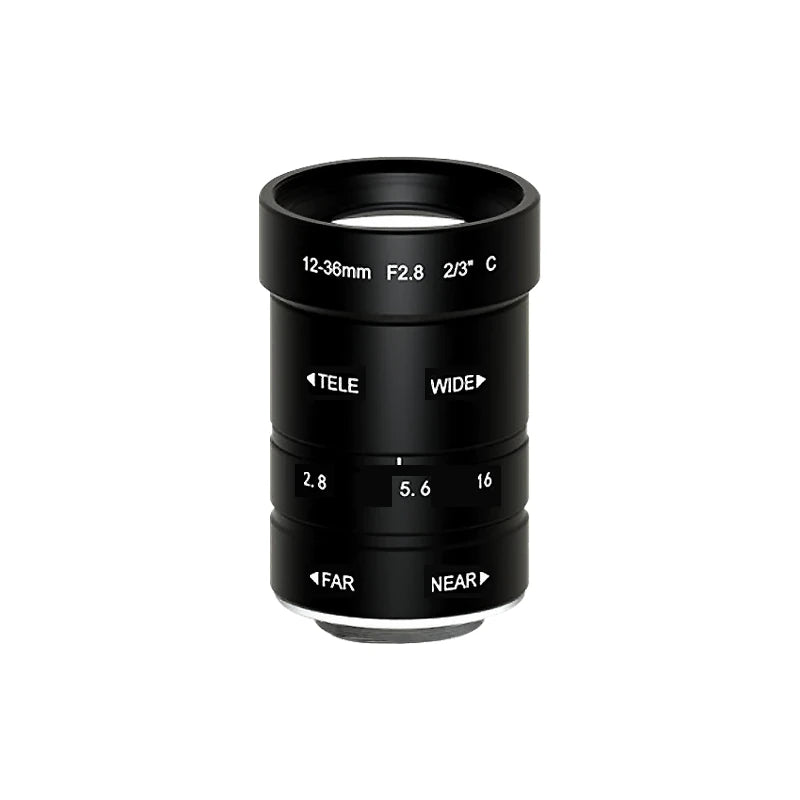

Zoom lens, 12-36 mm, 2/3", C-mount (LS-FFL-1707)

Model LS-FFL-1707

Focal length12-36mm
MountC-mount
Sensor2/3"
Resolution5

$519.00

Ships in 2-3 weeks

0.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Zoom lens zoom in and out of images by moving a lens inside the lens to change the position of focus, thereby changing the length of focus and the size of the view Angle.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

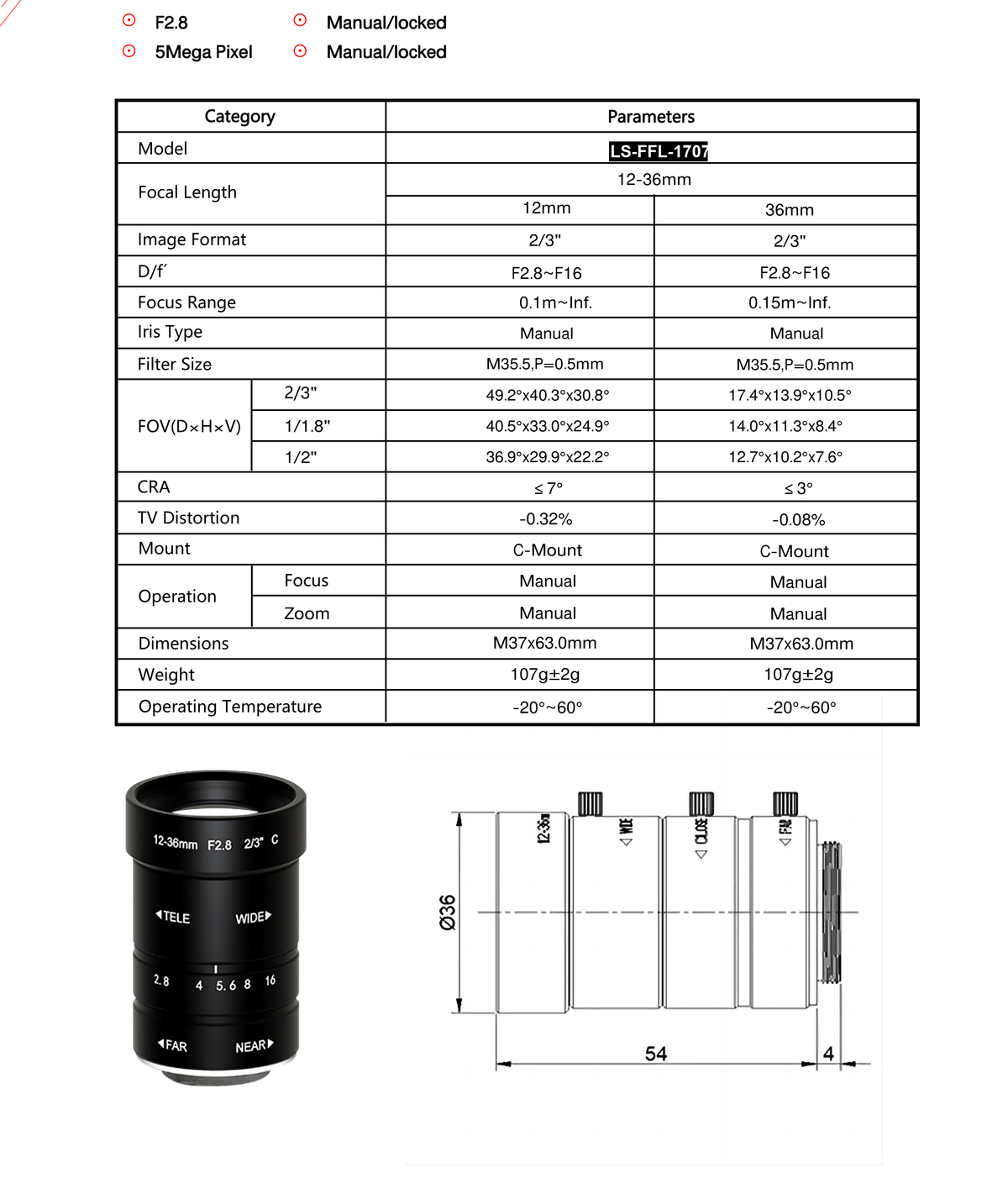

Specifications

General

Model	LS-FFL-1707
Image format	2/3"
D/fˊ	F2.8~F16
FOV(D×H×V) 2/3"	49.2°x40.3°x30.8° / 17.4°x13.9°x10.5°
FOV(D×H×V) 1/1.8"	40.5°x33.0°x24.9° / 14.0°x11.3°x8.4°
FOV(D×H×V) 1/2"	36.9°x29.9°x22.2° / 12.7°x10.2°x7.6°
CRA	≤ 7° / ≤ 3°
Operation Zoom	Manual

Optics

MTF	5MP
Focal length	12-36mm
Max.Aperture Ration	F2.8~F16
Iris Type	Manual
Focus range	0.1m~Inf. / 0.15m~Inf.
TV distortion	-0.32% / -0.08%
Operation Focus	Manual

Sensor and imaging

Sensor format	2/3"
Resolution (MP)	5

Environment and compliance

Operating temperature	-20°~60°

Mechanical

Mount	C
Filter size	M35.5,P=0.5mm
Dimensions	M37x63.0mm
Weight	107g±2g
