Machine vision lenses

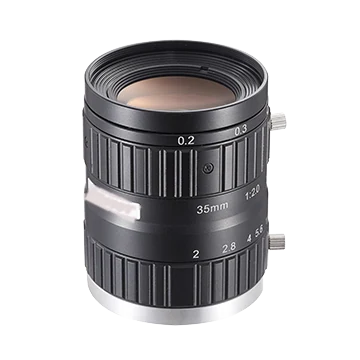

35mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-FFL-1530)

Model LS-FFL-1530

Focal length35 mm
MountC-mount
Sensor4/3"
ApertureF2.0 to F22

$299.00

Ships in 2-3 weeks

0.34 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

35mm, F2.0, 4/3", 10MP Lens, C-Mount. High resolution and excellent image uniformity F2.0, maximum image circle of 4/3''

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1530
Minimum object distance	0.2 m
Close-up with extension tube	10 mm tube, near focus: WD 72.48 mm, magnification -0.477; 10 mm tube, far focus: WD 123.37 mm, magnification -0.286; 5 mm tube, near focus: WD 103.90 mm, magnification -0.334; 5 mm tube, far focus: WD 245.42 mm, magnification -0.143; 2 mm tube, near focus: WD 140.11 mm, magnification -0.248; 2 mm tube, far focus: WD 609.79 mm, magnification -0.057; 1 mm tube, near focus: WD 158.46 mm, magnification -0.220; 1 mm tube, far focus: WD 1211.20 mm, magnification -0.029

Optics

Focal length	35 mm
F-number	F2.0 to F22
Image size	Ø23 mm (4/3")
Optical distortion	–0.56%
Field of view	D (22.6 mm): 36.6°; H (18.13 mm): 29.6°; V (13.6 mm): 22.4°
Iris control	Manual
Focus control	Manual
Filter thread	M40.5 × 0.75
Magnification at working distance (mm)	200: -0.183; 250: -0.145; 300: -0.120; 350: -0.103; 400: -0.090; 450: -0.079; 500: -0.071; 550: -0.065; 600: -0.059; 650: -0.055; 700: -0.051; 750: -0.047; 800: -0.044; 850: -0.042; 900: -0.039; 950: -0.037; 1000: -0.035
Field of view H x V (mm) at working distance (mm), 4/3" sensor (18.13 x 13.6 mm)	200: 99.50 x 74.52; 250: 135.57 x 94.22; 300: 151.64 x 113.55; 350: 177.70 x 133.07; 400: 203.77 x 152.58; 450: 229.83 x 172.09; 500: 255.89 x 191.60; 550: 281.95 x 211.12; 600: 308.00 x 230.63; 650: 334.06 x 250.14; 700: 360.12 x 269.65; 750: 386.18 x 289.16; 800: 412.23 x 308.68; 850: 438.29 x 328.19; 900: 464.35 x 347.70; 950: 490.40 x 367.21; 1000: 516.46 x 386.72
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)	200: 76.96 x 56.64; 250: 97.79 x 71.48; 300: 118.09 x 86.31; 350: 138.38 x 101.14; 400: 158.67 x 115.97; 450: 178.97 x 130.79; 500: 199.26 x 145.62; 550: 219.55 x 160.45; 600: 239.84 x 175.28; 650: 260.13 x 190.11; 700: 280.42 x 204.94; 750: 300.71 x 219.77; 800: 321.01 x 234.60; 850: 341.30 x 249.43; 900: 361.59 x 264.26; 950: 381.88 x 279.09; 1000: 402.17 x 293.93
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)	200: 46.22 x 38.65; 250: 58.32 x 48.77; 300: 70.42 x 58.89; 350: 82.51 x 69.01; 400: 94.61 x 79.13; 450: 106.71 x 89.24; 500: 118.81 x 99.36; 550: 130.91 x 109.48; 600: 143.01 x 119.60; 650: 155.11 x 129.72; 700: 167.21 x 139.84; 750: 179.31 x 149.96; 800: 191.41 x 160.08; 850: 203.51 x 170.20; 900: 215.61 x 180.32; 950: 227.71 x 190.43; 1000: 239.81 x 200.55

Environment and compliance

Temperature	–10 °C to 50 °C (14 °F to 122 °F)
Certification	RoHS 2.0

Mechanical

Mount	C-mount
Flange back length	17.526 mm

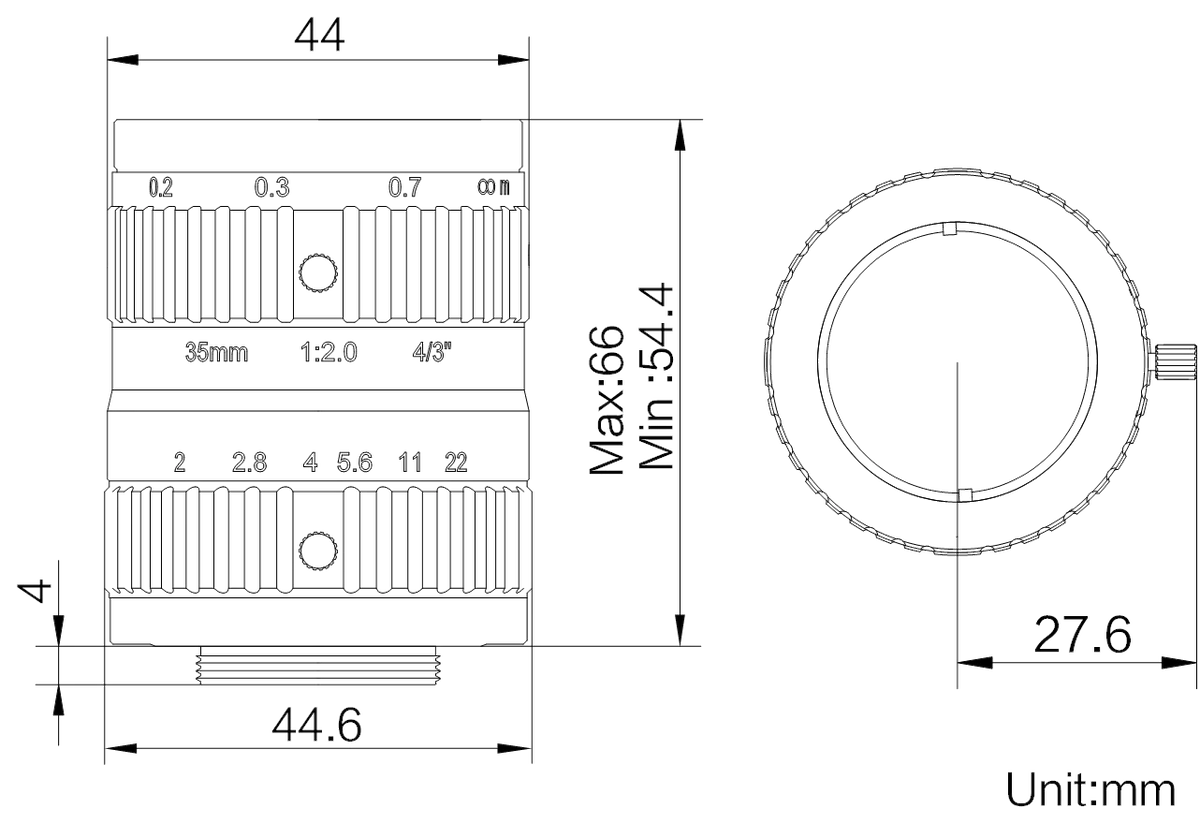

Dimension	Ø44.6 mm × 66 mm (Ø1.8" × 2.6")
Weight	171 g (0.4 lb.)
Shipping weight (estimated)	0.34 kg

Other models in the LS-FFL-S147 series lenses series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-FFL-1527	12 mm · C-mount	$269.00	Ships in 2-3 weeks	View
LS-FFL-1528	16 mm · C-mount	$279.00	Ships in 2-3 weeks	View
LS-FFL-1529	25 mm · C-mount	$289.00	Ships in 2-3 weeks	View
LS-FFL-1531	50 mm · C-mount	$319.00	Ships in 2-3 weeks	View
LS-FFL-1532	85 mm · C-mount	$369.00	Ships in 2-3 weeks	View
