Machine vision lenses

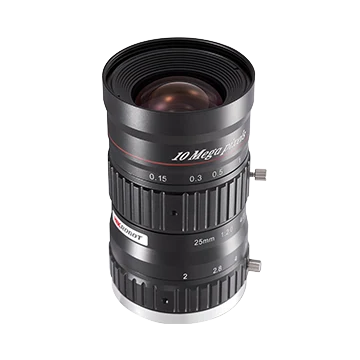

25mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-FFL-1529)

Model LS-FFL-1529

Focal length25 mm
MountC-mount
Sensor4/3"
ApertureF2.0 to F22

$289.00

Ships in 2-3 weeks

0.45 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

25mm, F2.0, 4/3", 10MP Lens, C-Mount. High resolution and excellent image uniformity F2.0, maximum image circle of 4/3''

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1529
Minimum object distance	0.15 m
Close-up with extension tube	10 mm tube, near focus: WD 27.46 mm, magnification -0.548; 10 mm tube, far focus: WD 42.24 mm, magnification -0.400; 5 mm tube, near focus: WD 53.68 mm, magnification -0.348; 5 mm tube, far focus: WD 104.62 mm, magnification -0.200; 2 mm tube, near focus: WD 91.49 mm, magnification -0.228; 2 mm tube, far focus: WD 291.31 mm, magnification -0.080; 1 mm tube, near focus: WD 114.82 mm, magnification -0.188; 1 mm tube, far focus: WD 600.90 mm, magnification -0.040

Optics

Focal length	25 mm
F-number	F2.0 to F22
Image size	Ø23 mm (4/3")
Optical distortion	–0.66%
Field of view	D (22.6 mm): 36.6°; H (18.13 mm): 29.6°; V (13.6 mm): 22.4°
Iris control	Manual
Focus control	Manual
Filter thread	M40.5 × 0.75
Magnification at working distance (mm)	150: -0.145; 200: -0.112; 250: -0.092; 300: -0.077; 350: -0.070; 400: -0.059; 450: -0.053; 500: -0.048; 550: -0.044; 600: -0.040; 650: -0.037; 700: -0.035; 750: -0.032; 800: -0.030; 850: -0.029; 900: -0.027; 950: -0.026; 1000: -0.024
Field of view H x V (mm) at working distance (mm), 4/3" sensor (18.13 x 13.6 mm)	150: 126.28 x 98.38; 200: 163.03 x 121.90; 250: 199.69 x 149.34; 300: 236.29 x 176.75; 350: 272.86 x 204.13; 400: 309.41 x 231.49; 450: 345.95 x 258.84; 500: 382.47 x 286.19; 550: 418.98 x 313.53; 600: 455.49 x 340.87; 650: 492.00 x 368.20; 700: 528.50 x 395.53; 750: 564.99 x 422.86; 800: 601.49 x 450.19; 850: 637.98 x 477.51; 900: 674.47 x 504.84; 950: 710.96 x 532.16; 1000: 747.45 x 559.48
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)	150: 98.17 x 71.67; 200: 126.79 x 92.58; 250: 155.33 x 113.43; 300: 183.83 x 134.26; 350: 212.30 x 155.06; 400: 240.76 x 175.86; 450: 269.21 x 196.65; 500: 297.64 x 217.43; 550: 326.08 x 238.21; 600: 354.51 x 258.98; 650: 382.93 x 279.75; 700: 411.35 x 300.52; 750: 439.78 x 321.29; 800: 468.19 x 342.06; 850: 496.61 x 362.82; 900: 525.03 x 383.59; 950: 553.44 x 404.35; 1000: 581.85 x 425.12
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)	150: 58.45 x 48.87; 200: 75.51 x 63.14; 250: 92.52 x 79.36; 300: 109.51 x 91.57; 350: 126.48 x 105.77; 400: 143.45 x 119.95; 450: 160.41 x 134.14; 500: 177.36 x 148.32; 550: 194.31 x 162.49; 600: 211.26 x 176.67; 650: 228.21 x 190.84; 700: 245.15 x 205.01; 750: 262.09 x 219.18; 800: 279.04 x 233.35; 850: 295.98 x 247.52; 900: 312.92 x 261.68; 950: 329.86 x 275.85; 1000: 346.80 x 290.02

Environment and compliance

Temperature	–10 °C to 50 °C (14 °F to 122 °F)
Certification	RoHS 2.0

Mechanical

Mount	C-mount
Flange back length	17.526 mm
Dimension	Ø48 mm × 82.7 mm (Ø1.9" × 3.3")
Weight	250 g (0.6 lb.)
Shipping weight (estimated)	0.45 kg
