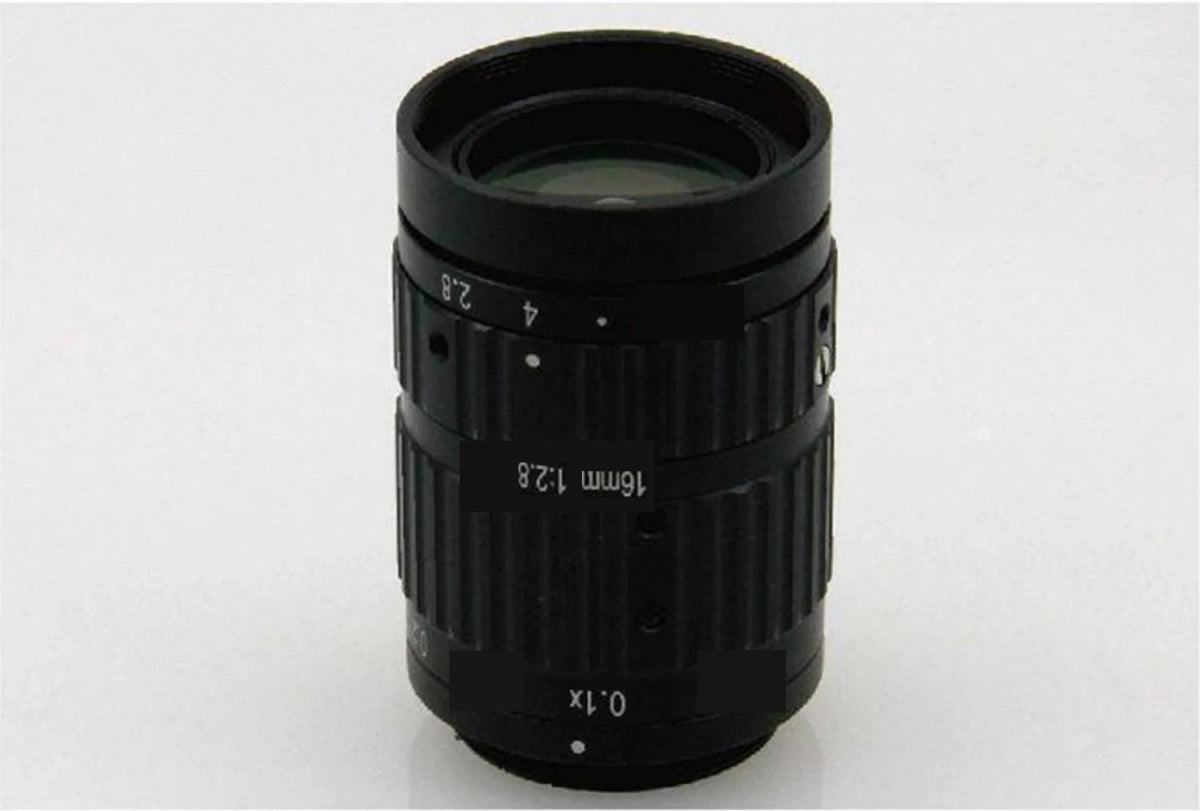

Representative photo of this series
Machine vision lenses
Macro lens, 1.1" 12MP, 16 mm, C-Mount (LS-FFL-1518)
Model LS-FFL-1518
- Focal length16 mm
- MountC-mount
- Sensor1.1"
- Working distance52-546 mm
- ApertureF2.8-16
- Resolution12MP
$489.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12MP macro lenses designed for precise imaging with limited space, working distance 52-546 mm, with a large image circle suitable for IMX253LLR (1.1" 12MP); EFL 16-75 mm, magnification 0.03x-0.8x, ultra-low distortion (<0.05%).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1518 |
|---|---|
| F/NO | 2.8-16 |
| EFL | 16mm |
| O/I | 115.5-606.9 |
Optics
| Distortion | <0.05% |
|---|---|
| Image size | 1.1" |
| Image size (dia.) | 1.1" |
| Optical magnification | -0.25X~-0.03X |
| Distortion (TV) | <0.33% |
| Working distance | 52-546 |
| Focal length (mm) | 16 |
| Aperture | F2.8-16 |
Sensor and imaging
| Resolution | 12MP |
|---|---|
| Sensor format | 1.1" |
Mechanical
| Mount | C-Mount |
|---|---|
| Filter size | M28.5×P0.5 |
| Shipping weight | 0.38 kg |
Other models in the Macro lens, 1.1" 12MP (LS-FFL-S143) series
See all 5 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1519 | 25 mm, 1.1", C-Mount | $499.00 | 2 in stock | View |
| LS-FFL-1520 | 35 mm, 1.1", C-Mount | $519.00 | 2 in stock | View |
| LS-FFL-1521 | 50 mm, 1.1", C-Mount | $549.00 | 3 in stock | View |
| LS-FFL-1522 | 75 mm, 1.1", C-Mount | $589.00 | 5 in stock | View |
