Machine vision lenses

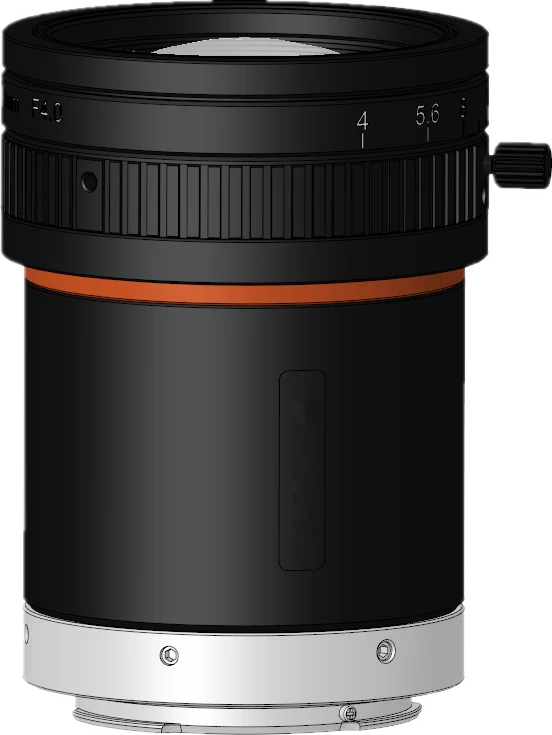

80mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount (LS-FFL-1424)
Model LS-FFL-1424
- Focal length80 mm
- Magnification0.4x to 0.01x
- MountF-mount
- SensorFull frame
- Working distance235 mm to inf mm
- ApertureF4.0 to F22
$1,079.00
Ships in 2-3 weeks
0.94 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
80mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount. Ultra-high central image clarity, up to 3.1µm resolution Low distortion and high relative illumination
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1424 |
|---|
Optics
| Focal length | 80 mm |
|---|---|
| F-number | F4.0 to F22 |
| Image size | Ø56 mm |
| Optical distortion | 0.12% |
| Magnification range | 0.4x to 0.01x |
| Working distance range | 235 mm to inf mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M52 × 0.75 |
| Magnification at working distance (mm) | 235: -0.400; 250: -0.372; 300: -0.300; 350: -0.252; 400: -0.217; 450: -0.191; 500: -0.170; 550: -0.153; 600: -0.140; 700: -0.118; 800: -0.103; 900: -0.091; 1000: -0.081; 1100: -0.074; 1200: -0.067; 1300: -0.062; 1400: -0.057; 1500: -0.054 |
| Field of view H x V (mm) at working distance (mm), sensor 23 x 23 mm | 235: 57.60 x 57.60; 250: 61.96 x 61.96; 300: 76.80 x 76.80; 350: 91.44 x 91.44; 400: 106.18 x 106.18; 450: 120.92 x 120.92; 500: 135.69 x 135.69; 550: 150.41 x 150.41; 600: 165.16 x 165.16; 700: 194.63 x 194.63; 800: 224.13 x 224.13; 900: 253.61 x 253.61; 1000: 283.08 x 283.08; 1100: 312.58 x 312.58; 1200: 342.04 x 342.04; 1300: 371.53 x 371.53; 1400: 401.00 x 401.00; 1500: 430.49 x 430.49 |
| Field of view H x V (mm) at working distance (mm), sensor 36.17 x 24.11 mm | 235: 90.42 x 60.28; 250: 97.26 x 64.84; 300: 120.56 x 80.37; 350: 143.54 x 95.70; 400: 166.68 x 111.12; 450: 189.82 x 126.55; 500: 213.00 x 142.00; 550: 236.11 x 157.40; 600: 259.27 x 172.85; 700: 305.53 x 203.69; 800: 351.83 x 234.55; 900: 398.11 x 265.41; 1000: 444.38 x 296.25; 1100: 490.68 x 327.12; 1200: 536.94 x 357.96; 1300: 583.22 x 388.82; 1400: 629.49 x 419.66; 1500: 675.79 x 450.52 |
| Field of view H (mm) at working distance (mm), 8k 5 µm sensor | 235: 102.40; 250: 110.15; 300: 136.53; 350: 162.56; 400: 188.77; 450: 214.97; 500: 241.23; 550: 267.39; 600: 293.62; 700: 346.01; 800: 398.44; 900: 450.85; 1000: 503.26; 1100: 555.69; 1200: 608.08; 1300: 660.50; 1400: 712.89; 1500: 765.32 |
| Field of view H (mm) at working distance (mm), 8k 7 µm / 16k 3.5 µm sensor | 235: 143.36; 250: 154.15; 300: 191.15; 350: 227.56; 400: 264.26; 450: 300.23; 500: 337.32; 550: 374.80; 600: 409.60; 700: 485.97; 800: 556.74; 900: 630.15; 1000: 707.95; 1100: 774.92; 1200: 855.88; 1300: 924.90; 1400: 1006.04; 1500: 1061.93 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | F-moun |
|---|---|
| Flange back length | 46.5 mm |

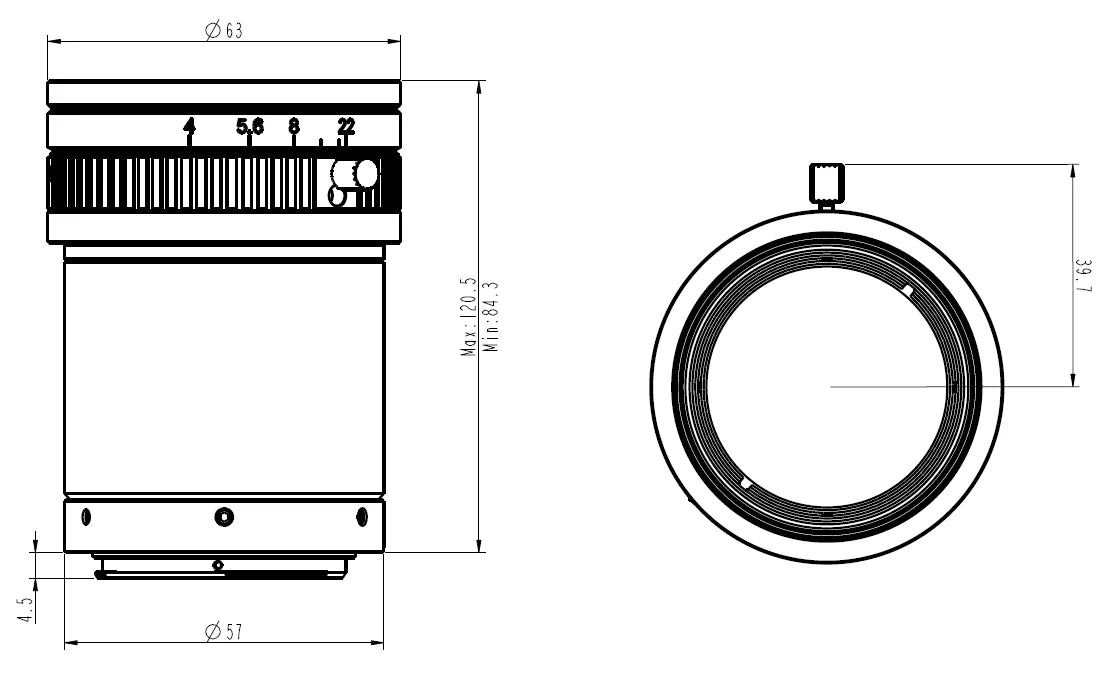

| Dimension | Ø63 mm × 120.5 mm (Ø2.48'' × 44.74'') |
| Weight | 601.0 g (1.32 lb.) |
| Shipping weight (estimated) | 0.94 kg |
Other models in the LS-FFL-S127 series lenses series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1420 | 35 mm · 0.25 x to 0.05 x | $1,079.00 | Ships in 2-3 weeks | View |
| LS-FFL-1421 | 35 mm · 0.05 x to 0.001 x | $1,079.00 | Ships in 2-3 weeks | View |
| LS-FFL-1422 | 50 mm · 0.33 x to 0.01 x | $1,079.00 | Ships in 2-3 weeks | View |
| LS-FFL-1423 | 55 mm · 0.5x~ 0.01x | $1,079.00 | Ships in 2-3 weeks | View |
| LS-FFL-1419 | 25 mm · 0.17x ~ 0.001x | $1,079.00 | Ships in 2-3 weeks | View |
