Machine vision lenses

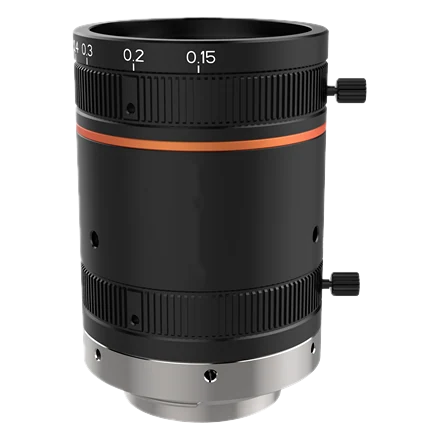

50mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount (LS-FFL-1422)

Model LS-FFL-1422

Focal length50 mm
Magnification0.33 x to 0.01 x
MountF-mount
SensorFull frame
Working distance150 mm to inf mm
ApertureF4.0 to F22

$1,079.00

Ships in 2-3 weeks

0.94 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

50mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount. Ultra high central image clarity, up to 3.1µm resolution Low distortion and high relative illumination

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1422

Optics

Focal length	50 mm
F-number	F4.0 to F22
Image size	Ø56 mm
Optical distortion	0.41%
Magnification range	0.33 x to 0.01 x
Working distance range	150 mm to inf mm
Iris control	Manual
Focus control	Manual
Filter thread	M52 × 0.75
Magnification at working distance (mm)	150: -0.331; 200: -0.249; 250: -0.200; 300: -0.167; 350: -0.143; 400: -0.125; 450: -0.111; 500: -0.100; 550: -0.091; 600: -0.084; 700: -0.072; 800: -0.063; 900: -0.056; 1000: -0.050; 1100: -0.046; 1200: -0.042; 1300: -0.039; 1400: -0.036; 1500: -0.034
Field of view H x V (mm) at working distance (mm), sensor 23 x 23 mm	150: 69.62 x 69.62; 200: 92.50 x 92.50; 250: 115.38 x 115.38; 300: 138.26 x 138.26; 350: 161.13 x 161.13; 400: 184.03 x 184.03; 450: 206.89 x 206.89; 500: 230.40 x 230.40; 550: 252.65 x 252.65; 600: 275.53 x 275.53; 700: 321.29 x 321.29; 800: 367.05 x 367.05; 900: 412.80 x 412.80; 1000: 458.56 x 458.56; 1100: 504.31 x 504.31; 1200: 550.08 x 550.08; 1300: 595.83 x 595.83; 1400: 641.59 x 641.59; 1500: 687.35 x 687.35
Field of view H x V (mm) at working distance (mm), sensor 36.17 x 24.11 mm	150: 109.29 x 72.86; 200: 145.20 x 96.80; 250: 181.12 x 120.74; 300: 217.03 x 144.69; 350: 252.95 x 168.63; 400: 288.88 x 192.59; 450: 324.78 x 216.52; 500: 361.68 x 241.12; 550: 396.61 x 264.41; 600: 432.52 x 288.35; 700: 504.37 x 336.24; 800: 576.20 x 384.13; 900: 648.01 x 432.01; 1000: 719.85 x 479.90; 1100: 791.67 x 527.78; 1200: 863.51 x 575.67; 1300: 935.32 x 623.55; 1400: 1007.16 x 671.44; 1500: 1079.00 x 719.33
Field of view H (mm) at working distance (mm), 8k 5 µm sensor	150: 123.77; 200: 164.44; 250: 205.11; 300: 245.79; 350: 286.46; 400: 327.16; 450: 367.81; 500: 409.60; 550: 449.16; 600: 489.83; 700: 571.19; 800: 652.54; 900: 733.87; 1000: 815.22; 1100: 896.56; 1200: 977.92; 1300: 1059.25; 1400: 1140.60; 1500: 1221.96
Field of view H (mm) at working distance (mm), 8k 7 µm / 16k 3.5 µm sensor	150: 173.24; 200: 230.30; 250: 286.72; 300: 343.38; 350: 401.01; 400: 458.75; 450: 516.61; 500: 573.44; 550: 630.15; 600: 682.67; 700: 796.44; 800: 910.22; 900: 1024.00; 1000: 1146.88; 1100: 1246.61; 1200: 1365.33; 1300: 1470.36; 1400: 1592.89; 1500: 1686.59

Environment and compliance

Temperature	–10 °C to 50 °C (14 °F to 122 °F)
Certification	RoHS 2.0

Mechanical

Mount	F-mount
Flange back length	46.5 mm

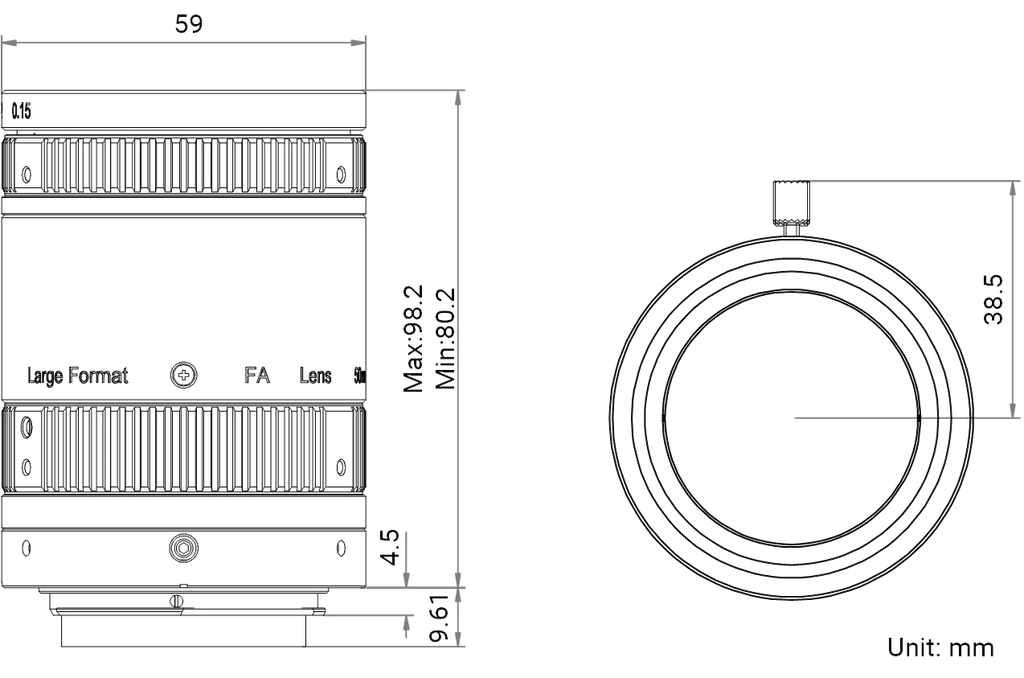

Dimension	Ø59 mm × 98.2 mm (Ø2.32'' × 3.87'')
Weight	601.5 g (1.33 lb.)
Shipping weight (estimated)	0.94 kg
