Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
40 mm fixed focal length lens, 100 MP, F4.0, M72 (LS-FFL-1216)
Model LS-FFL-1216
- Focal length40 mm
- Magnification0.21x ~ 0.10x ~ 0.001x
- MountM72
- SensorLarge format
- Working distance200–∞
- ApertureF4.0
$580.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
40 mm fixed focal length lens for machine-vision cameras. Focal length 40 mm; working distance 200 mm; resolves 100 MP; aperture F4.0; M72 mount; image circle 58 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1216 |
|---|
Optics
| Focal length | 40 mm |
|---|---|
| Aperture | F4.0 |
| Working distance | 200–∞ |
| Magnification | 0.21x ~ 0.10x ~ 0.001x |
| Distortion | -0.0042 |
| Focus | Manual |
| Filter thread | M60×0.75 |
Sensor and imaging
| Resolution | 100 MP |
|---|---|
| Sensor format | Ø58 mm |
Mechanical
| Mount | M72 |
|---|---|
| Flange back length | 12 mm |

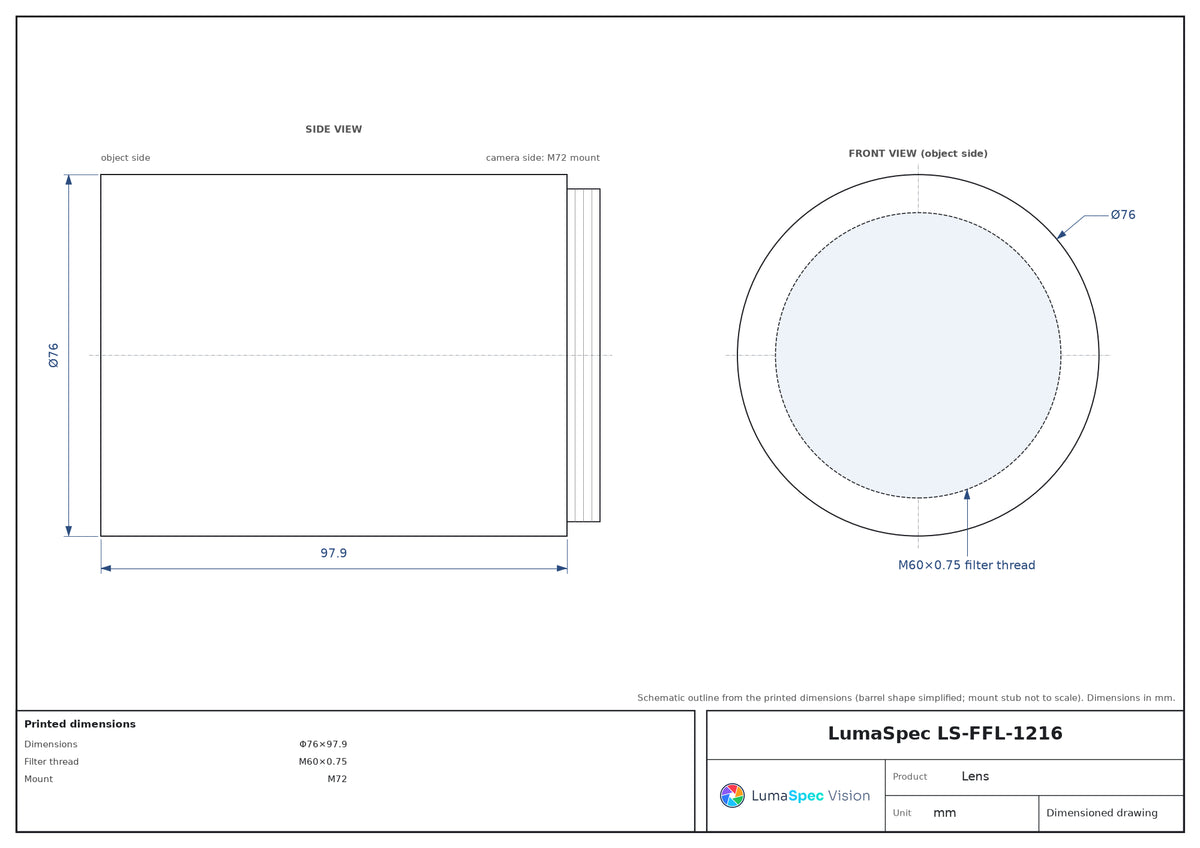

| Dimensions | Φ76×97.9 |
| Weight | 625g |
