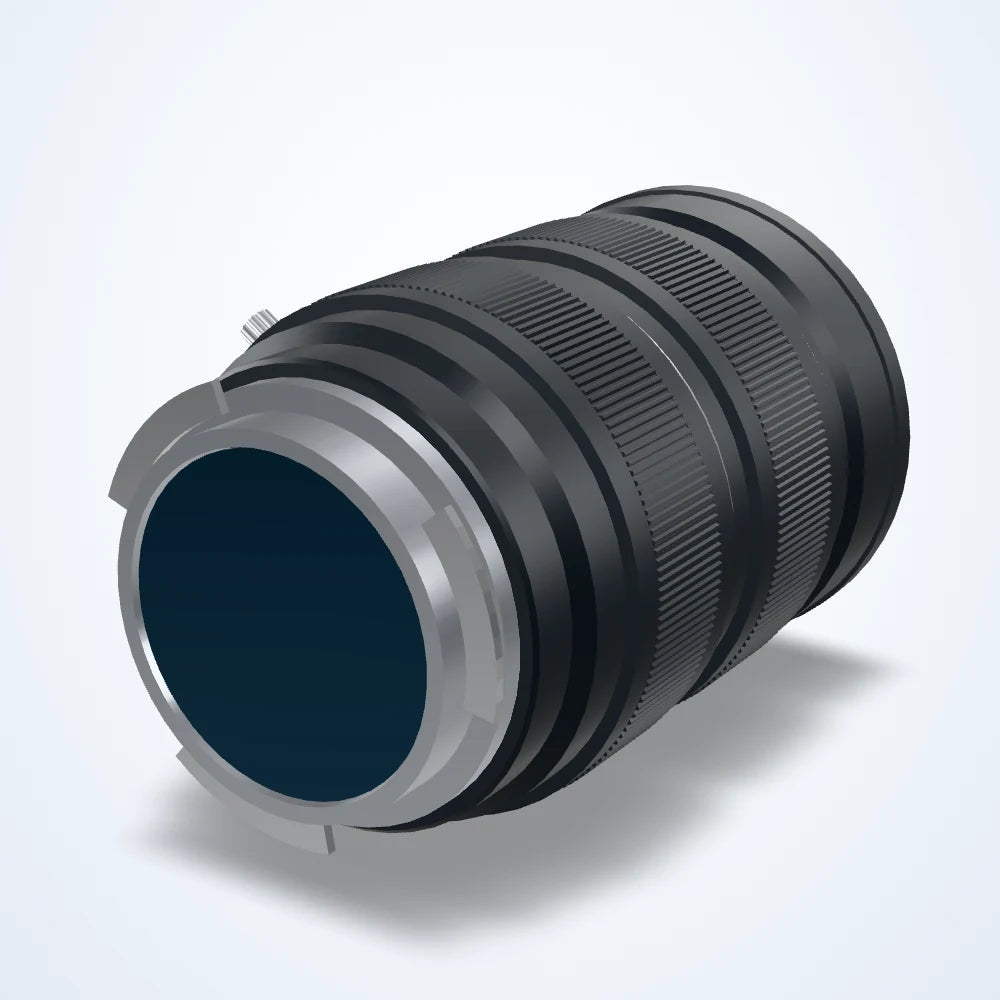

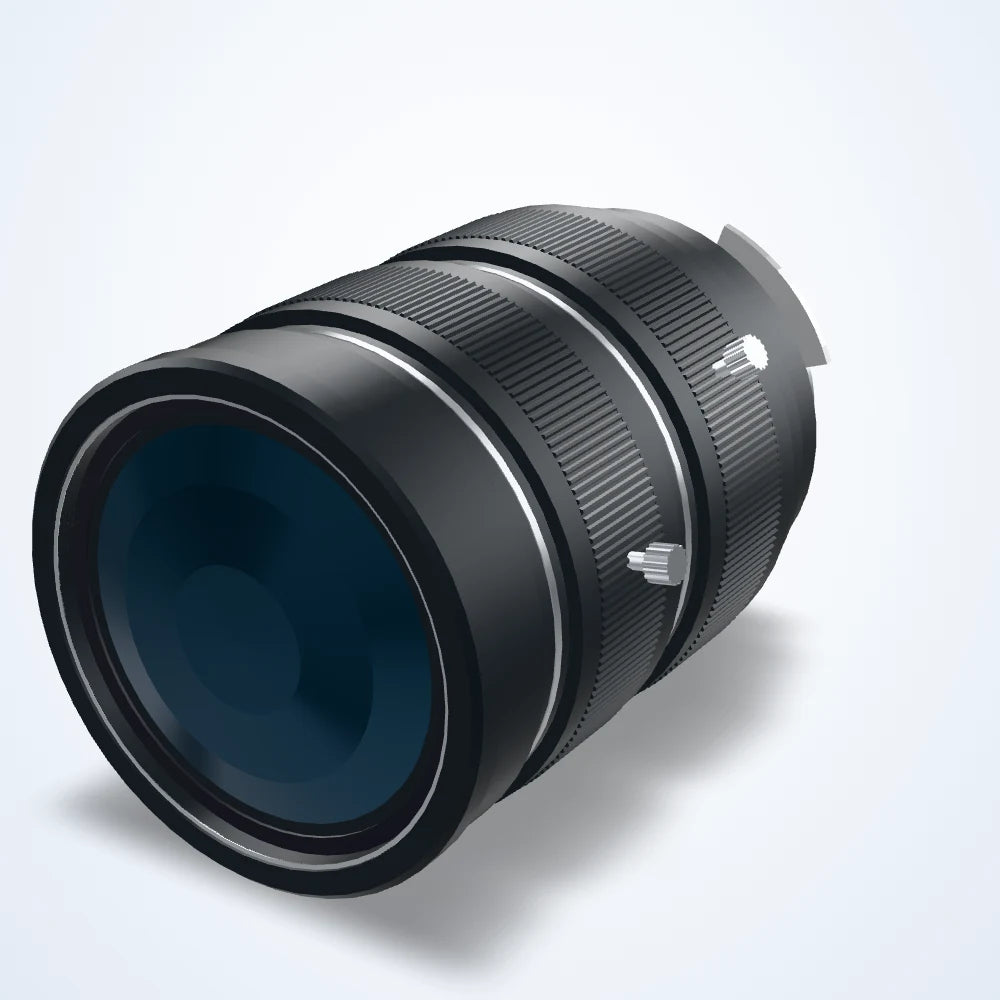

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

40 mm fixed focal length lens, 29 MP, F-mount (LS-FFL-1215)

Model LS-FFL-1215

  • Focal length40 mm
  • Magnification0.1x
  • MountF-mount
  • SensorFull frame
  • Working distance409 mm
  • ApertureF2.8-F22
$620.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

40 mm fixed focal length lens, 29 MP, F-mount (LS-FFL-1215)LS-FFL-1215

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

40 mm fixed focal length lens for machine-vision cameras. Focal length 40 mm; magnification 0.1x; resolves 29 MP; F-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1215
Min. object distance0.2m

Optics

Focal length40 mm
Magnification0.1x
ApertureF2.8-F22
Working distance409 mm
Distortion<0.2%
FocusManual
Filter threadM62×P0.75

Sensor and imaging

Resolution29 MP
Sensor formatdia. 43.2 mm

Light

Relative Illuminance40%

Mechanical

MountF
Flange back length46.5 mm
Shipping weight1.00 kg

Other models in the Large-format fixed focal length lenses (LS-FFL-S105) series

See all 46 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1212 35 mm $565.00 Ships in 3-4 weeks View
LS-FFL-1216 40 mm, M72 $580.00 Ships in 3-4 weeks View
LS-FFL-1202 35 mm, F-mount $585.00 Ships in 3-4 weeks View
LS-FFL-1203 35 mm, F-mount $585.00 Ships in 3-4 weeks View
LS-FFL-1204 35 mm, F-mount $585.00 Ships in 3-4 weeks View
LS-FFL-1232 60 mm, F-mount $600.00 Ships in 3-4 weeks View
LS-FFL-1233 60 mm, F-mount $600.00 Ships in 3-4 weeks View
LS-FFL-1227 50 mm $605.00 Ships in 3-4 weeks View
LS-FFL-1219 50 mm, F-mount $620.00 Ships in 3-4 weeks View
LS-FFL-1220 50 mm, F-mount $620.00 Ships in 3-4 weeks View
LS-FFL-1221 50 mm, F-mount $620.00 Ships in 3-4 weeks View
LS-FFL-1231 60 mm, F-mount $620.00 Ships in 3-4 weeks View
LS-FFL-1213 35 mm $645.00 Ships in 3-4 weeks View
LS-FFL-1228 50 mm $645.00 Ships in 3-4 weeks View
LS-FFL-1241 80 mm $645.00 Ships in 3-4 weeks View
LS-FFL-1236 80 mm, F-mount $645.00 Ships in 3-4 weeks View
LS-FFL-1234 60 mm, M72 $660.00 Ships in 3-4 weeks View
LS-FFL-1240 80 mm $690.00 Ships in 3-4 weeks View
LS-FFL-1244 90 mm, F-mount $710.00 Ships in 3-4 weeks View
LS-FFL-1670 60 mm, F-mount $785.00 Ships in 3-4 weeks View
LS-FFL-1671 60 mm, M58 $785.00 Ships in 3-4 weeks View
LS-FFL-1672 60 mm, M72 $785.00 Ships in 3-4 weeks View
LS-FFL-1673 60 mm, F-mount $785.00 Ships in 3-4 weeks View
LS-FFL-1674 60 mm, M42 $785.00 Ships in 3-4 weeks View
