Lens (series view)
  • Lens (series view)
  • Lens (series view)
  • 35 mm fixed focal length lens, 65 MP, M58, BFL 12 mm, WD 100 mm to infinity

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

35 mm fixed focal length lens, 65 MP, M58, BFL 12 mm, WD 100 mm to infinity (LS-FFL-1205)

Model LS-FFL-1205

  • Focal length35±5% mm
  • Magnification0-0.2x
  • MountM58
  • SensorFull frame
  • Working distance150-∞
  • ApertureF4-22
$880.00

Ships in 3-4 weeks

0.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm fixed focal length lens, 65 MP, M58, BFL 12 mm, WD 100 mm to infinity (LS-FFL-1205)LS-FFL-1205

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm fixed focal length lens for machine-vision cameras. Focal length 35 mm; working distance 150 mm; resolves 65 MP; M58 mount; image circle 42 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1205
ENP Diam.dia. 40 mm

Optics

Focal length35±5% mm
Working distance150-∞
Magnification0-0.2x
ApertureF4-22
Distortion<0.7%
Field of view59°
Filter threadM67 × P0.1

Sensor and imaging

Resolution65 MP
Sensor formatØ42

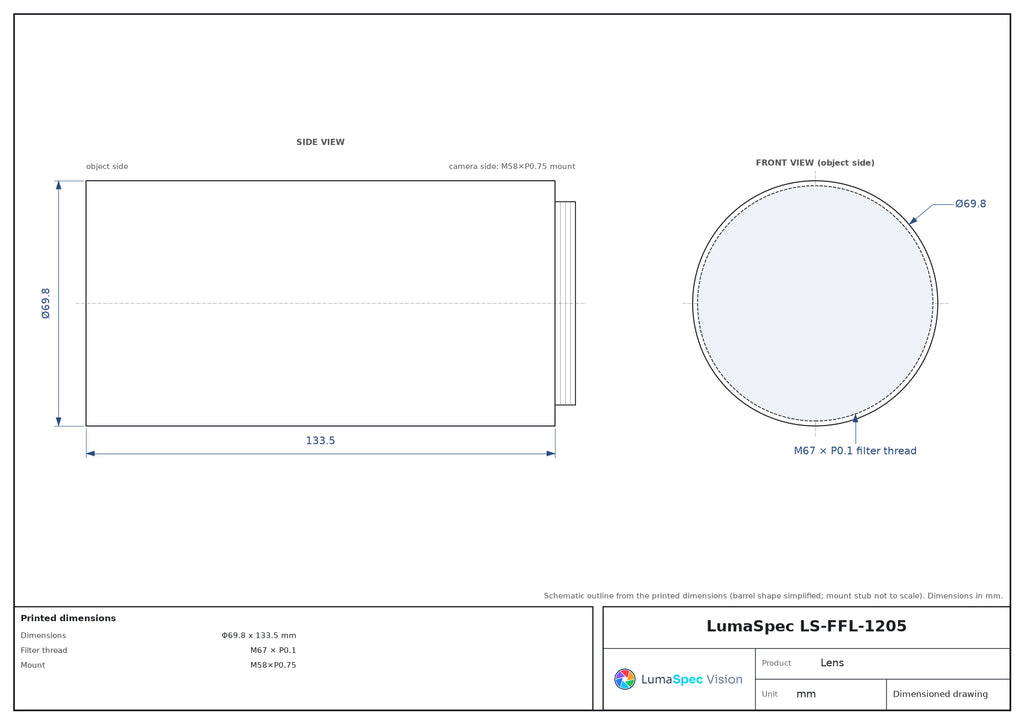

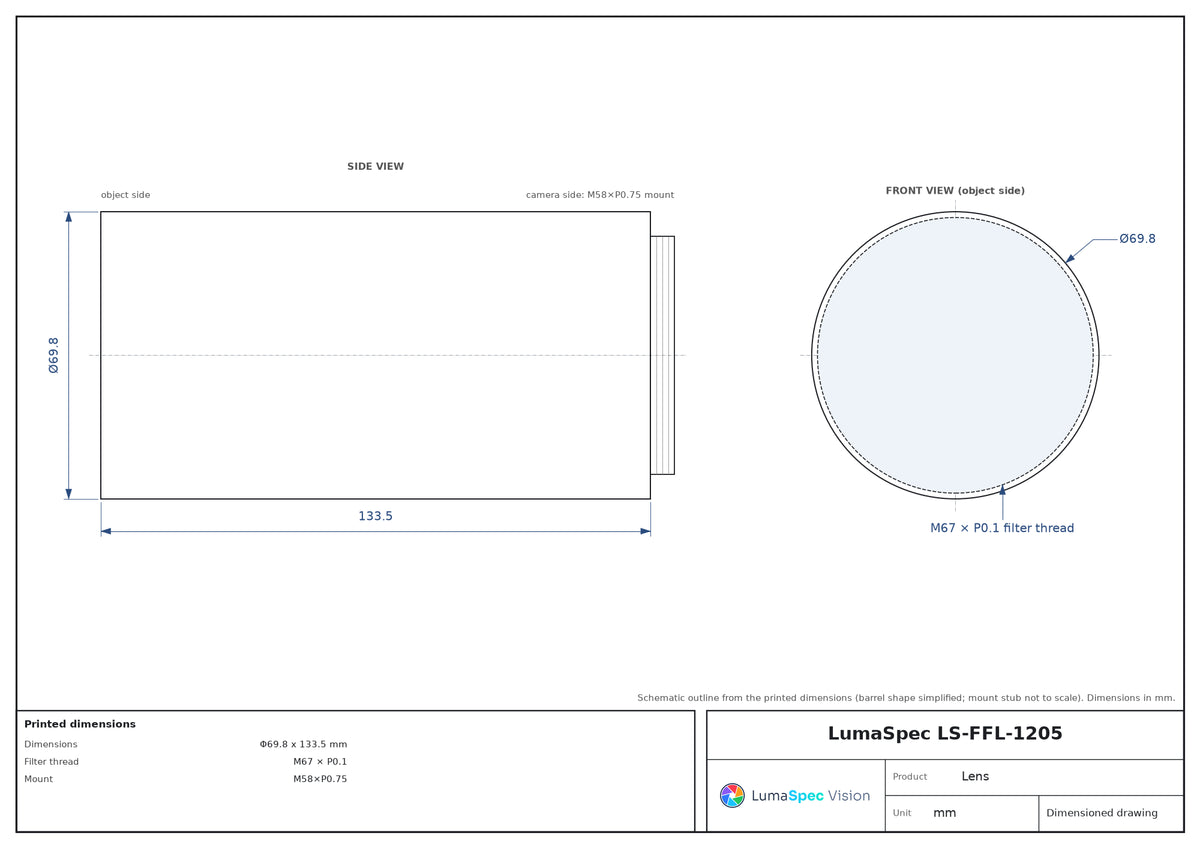

Mechanical

Flange back length12 mm
MountM58×P0.75
DimensionsΦ69.8 x 133.5 mm
Shipping weight0.60 kg
