  • 25 mm fixed focal length lens, 65 MP, M58, BFL 12 mm, WD 100 mm to infinity

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

25 mm fixed focal length lens, 65 MP, M58, BFL 12 mm, WD 100 mm to infinity (LS-FFL-1195)

Model LS-FFL-1195

  • Focal length25±5% mm
  • Magnification0-0.2x
  • MountM58
  • SensorLarge format
  • Working distance100-∞
  • ApertureF4-22
$880.00

Ships in 3-4 weeks

0.6 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 mm fixed focal length lens, 65 MP, M58, BFL 12 mm, WD 100 mm to infinity (LS-FFL-1195)LS-FFL-1195

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 mm fixed focal length lens for machine-vision cameras. Focal length 25 mm; working distance 100 mm; resolves 65 MP; M58 mount; image circle 46 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1195
ENP Diam.dia. 47.2 mm

Optics

Focal length25±5% mm
Working distance100-∞
Magnification0-0.2x
ApertureF4-22
Distortion<0.2%
Field of view83.8°
Filter threadM95 × P0.1

Sensor and imaging

Resolution65 MP
Sensor formatØ46

Mechanical

Flange back length12 mm
MountM58×P0.75

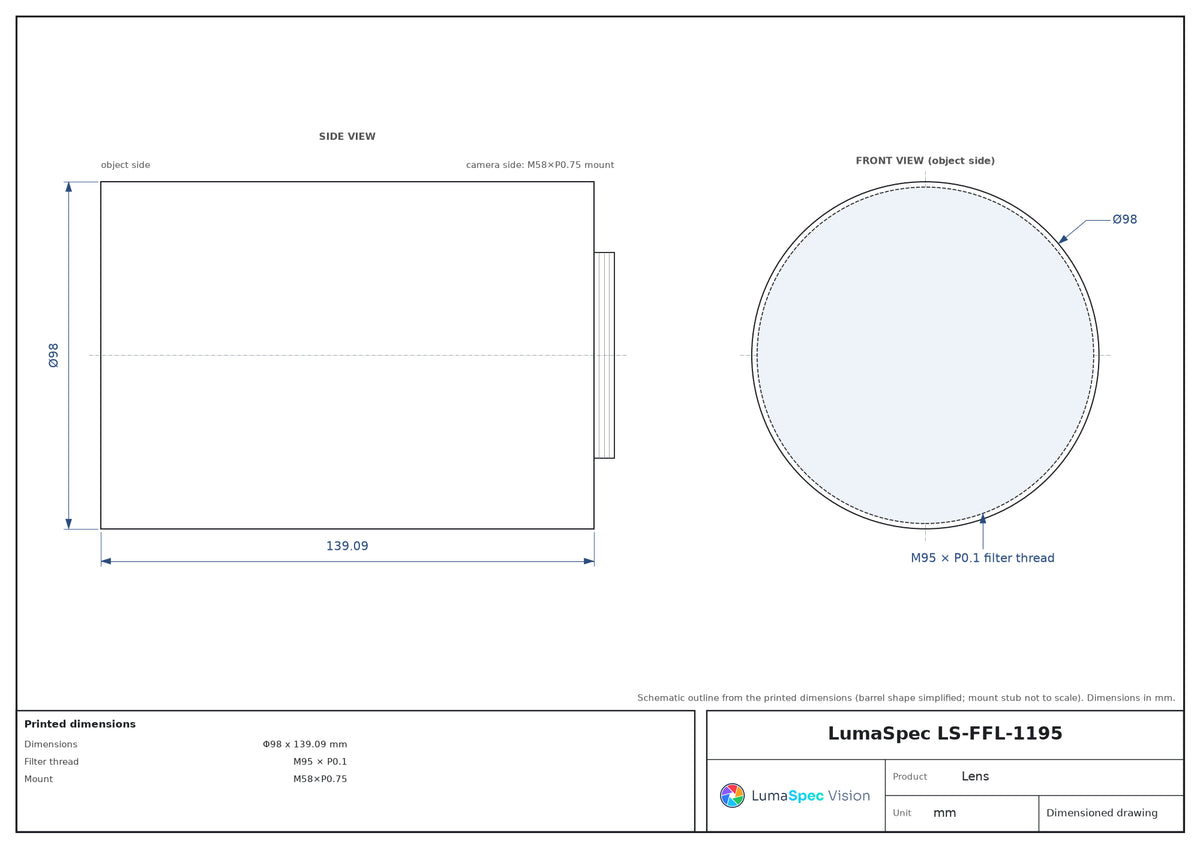

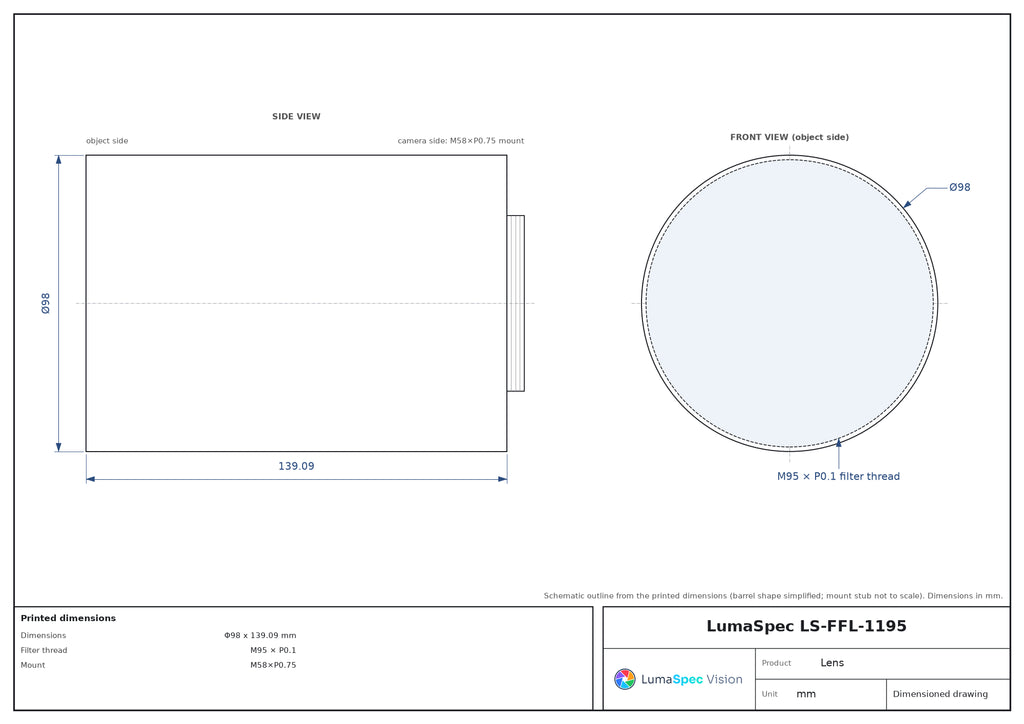

DimensionsΦ98 x 139.09 mm
Shipping weight0.60 kg
