Machine vision lenses

1/2" machine vision lens, 0.61~0.07x, WD 71~430 mm, length 40 mm (LS-FFL-1061)

Model LS-FFL-1061

Magnification0.61~0.07x
Sensor1/2"
Working distance71~430 mm
TypeMachine vision fixed

$189.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

LS-FFL-1061: working distance 71-430 mm, magnification 0.61-0.07x, total length TTL 40 mm.

1/2" Machine Vision Lens. Listed in front-adjust and rear-adjust versions, plus versions with an additional turning prism; magnification and working distance are given as adjustment ranges. At a glance: magnification 0.61~0.07x; working distance 71~430 mm; max sensor size 8.0 mm (1/2").

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1061

Optics

Focus adjustment	Front adjust
Total length TTL (mm)	40
Magnification (x)	0.61~0.07
Working distance (mm)	71~430

Sensor and imaging

Sensor format	1/2"
Max sensor size (dia. mm)	8.0

Mechanical

Shipping weight (estimated)	0.31 kg

Photo shows a representative model of this series; see the specifications for this model.

Engineering data

Field of view with the LS-FFL-1061

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 8 mmCovers sensors up to 1/2"

Magnification0.07–0.61×

Total length40 mm

Field of view (width × height) by sensor format
Sensor format	0.07×	0.61×
1/3"4.8 × 3.6 mm	68.6 × 51.4 mm	7.9 × 5.9 mm
1/2.9"4.98 × 3.74 mm	71.1 × 53.4 mm	8.2 × 6.1 mm
1/2"6.4 × 4.8 mm	91.4 × 68.6 mm	10.5 × 7.9 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.

Application studies

Applications for this type of part

Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.

All application studies

Set up with the LS-FFL-1454, the same type of part

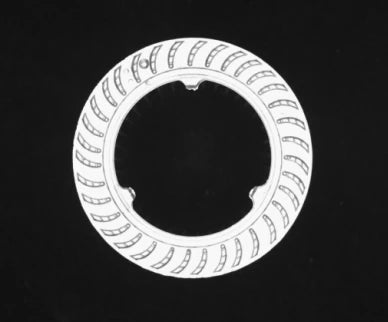

Source monochrome capture of a white moulded rotor ring under a blue shadowless ring light: curved blade openings all round and three notches on the inner edge. Complete capture, not retouched.

Plastics, rubber and ceramics Moulded part manufacturing · Positioning Fan-rotor positioning Use the ring for the centre and a few distinct notches for the angle.Light in sourceLS-SDL-0112 · blueExplore the study

Set up with the LS-FFL-1456, the same type of part

Source white-panel capture: a dark line crosses the bright fastener head below the thread and washer-like elements.

Metal parts and machining Fastener manufacturing · Head-surface appearance Crack appearance on a fastener head Keep the head face visible, then distinguish damage from normal head features.Light in sourceLS-BKL-1298 · whiteExplore the study

Set up with the LS-FFL-1454, the same type of part

Source example A under the white LS-BKL-1304: dark film shapes have visible small punched openings and edge notches.

Textiles, film and web Die-cut film manufacturing · Cut-out appearance inspection Punched holes and notches in film Choose sampling for the smallest cut-out, then control the film plane.Light in sourceLS-BKL-1304 · whiteExplore the study
