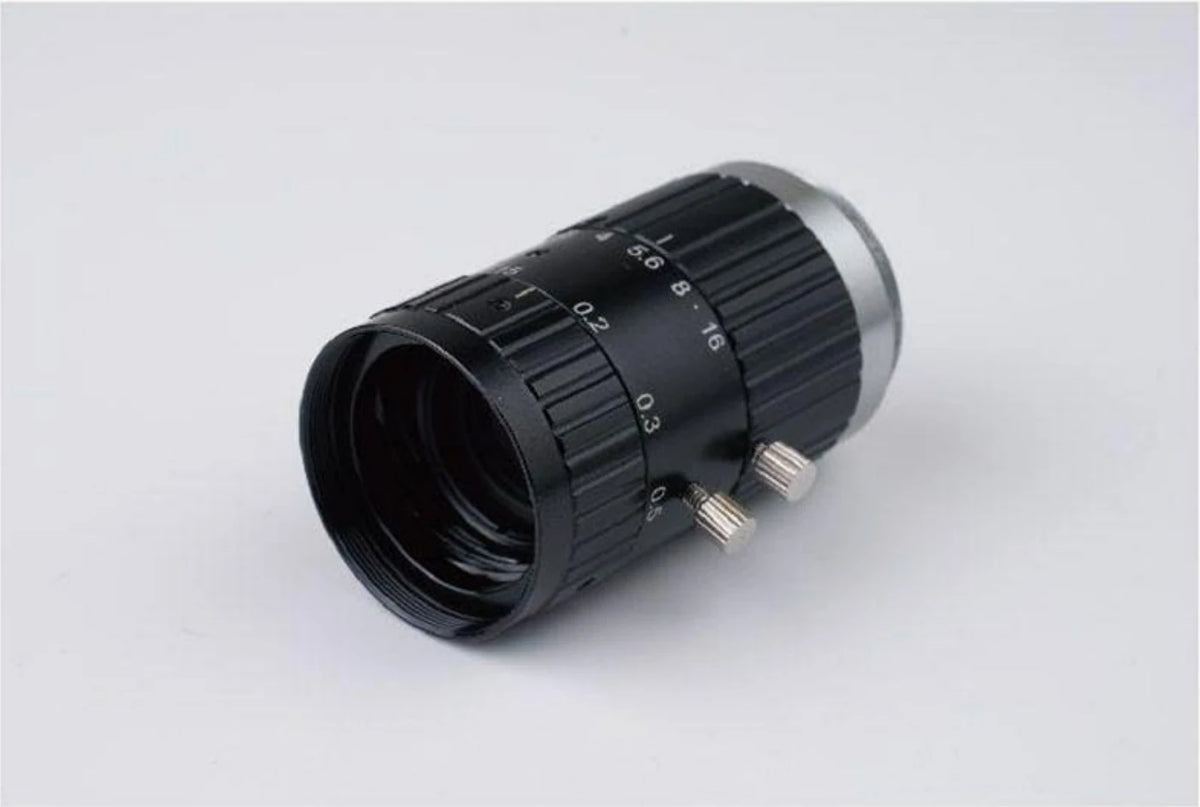

Representative photo of this series
Machine vision lenses
Fixed lens for FA, 2/3" 10MP, 25 mm, C-Mount (LS-FFL-0692)
Model LS-FFL-0692
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8-16
- Resolution10MP
- Field of view20° x 15.3°
$339.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ultra-high imaging quality fixed FA lenses for 2.4 µm pixel sensors, resolution up to 10MP, with high relative illumination and a big aperture in a small, ultra-compact design.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0692 |
|---|---|
| F/NO | 2.8-16 |
| EFL | 25mm |
| MOD | 0.1m |
Optics
| Distortion | <0.1% |
|---|---|
| Image size | 2/3" |
| Image size (dia.) | 2/3" |
| Field of view angle 2/3" | 20° x 15.3° |
| Field of view angle 1/2" | 14.9° x 11.4° |
| Field of view angle 1/3" | 11.4° x 8.8° |
| Distortion (TV) 2/3" | <0.1% |
| Focal length (mm) | 25 |
| Aperture | F2.8-16 |
Sensor and imaging
| Resolution | 10MP |
|---|---|
| Sensor format | 2/3" |

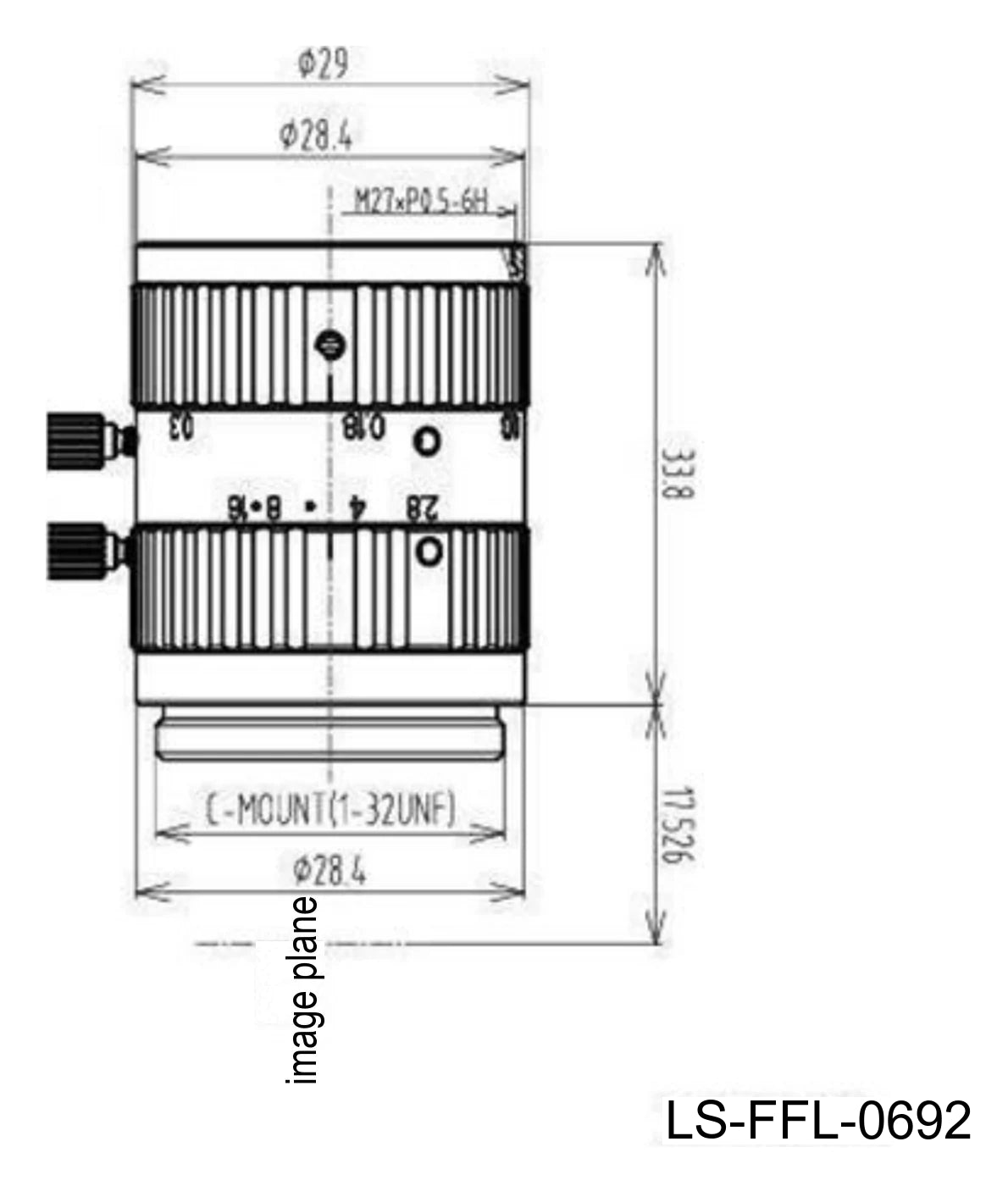

Mechanical
| Mount | C-Mount |
|---|---|
| Filter size | M27×P0.5 |
| Shipping weight | 0.38 kg |
Other models in the Fixed lens for FA, 2/3" 10MP (LS-FFL-S91) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0689 | 8 mm, 2/3", C-Mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0690 | 12 mm, 2/3", C-Mount | $309.00 | Ships in 2-3 weeks | View |
| LS-FFL-0691 | 16 mm, 2/3", C-Mount | $319.00 | Ships in 2-3 weeks | View |
| LS-FFL-0693 | 35 mm, 2/3", C-Mount | $359.00 | Ships in 2-3 weeks | View |
| LS-FFL-0694 | 50 mm, 2/3", C-Mount | $389.00 | Ships in 2-3 weeks | View |
