Machine vision lenses
24.99 mm, 2/3", C-mount Anti-Vibration Machine Vision Lens (LS-FFL-0474)
Model LS-FFL-0474
- Magnification0.3x
- MountC-mount
- Sensor2/3"
- Working distance88 mm
- Resolution14.6
$269.00
From the factory's 2021-2022 catalogue: we confirm availability and lead time by email after your order, and cancel with a full refund if it is no longer made.
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
24.99 mm, 2/3", C-mount Anti-Vibration Machine Vision Lens. At a glance: magnification 0.3x; working distance 88 mm; effective focal length efl 24.99 mm; max sensor size 11.0 mm (2/3"); resolution 14.6 µm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0474 |
|---|
Optics
| Magnification (x) | 0.3 |
|---|---|
| Working distance (mm) | 88 |
| F/# | 6.5 |
| Numerical aperture NA | 0.02305 |
| Effective focal length EFL (mm) | 24.99 |
| MTF30, average (lp/mm) | 109 |
| Depth of field (mm) | 5.8 |
| TV distortion (%) | -0.049% |
| Relative illumination (min) | 67.8% |

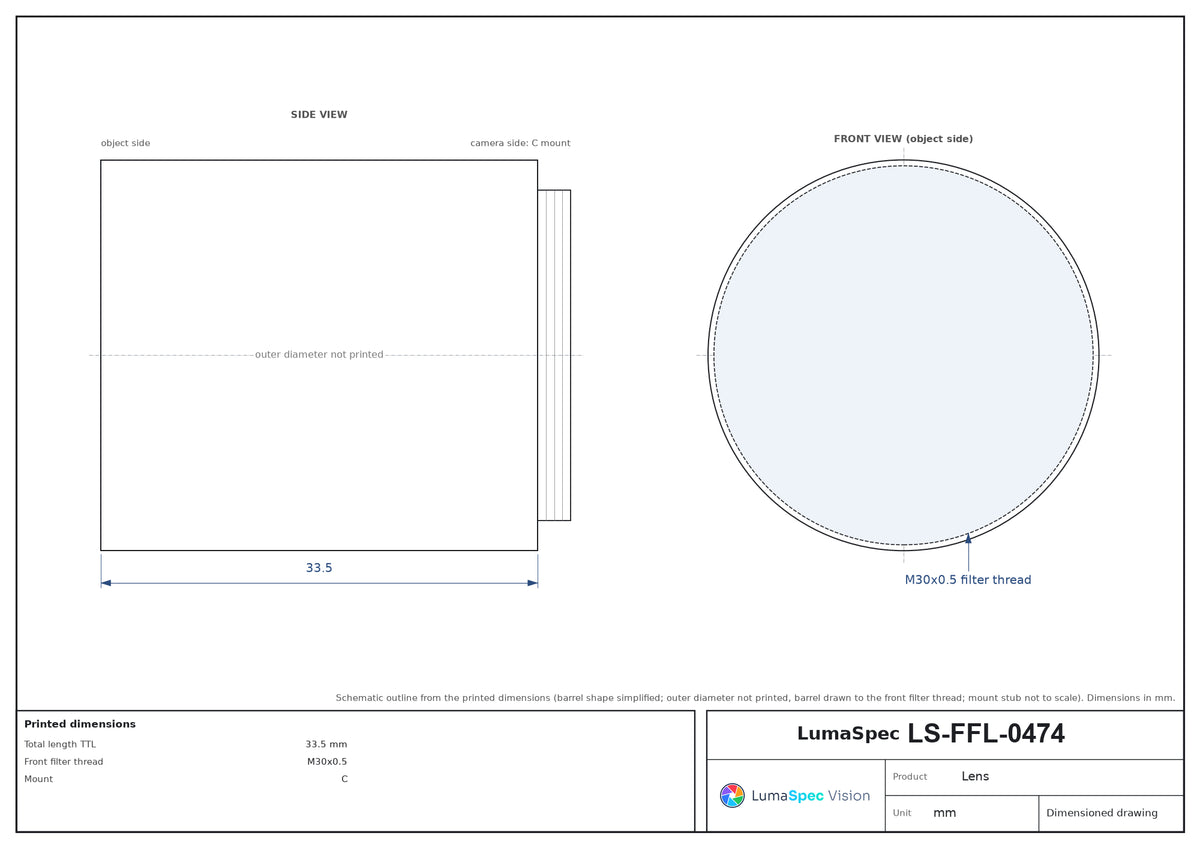

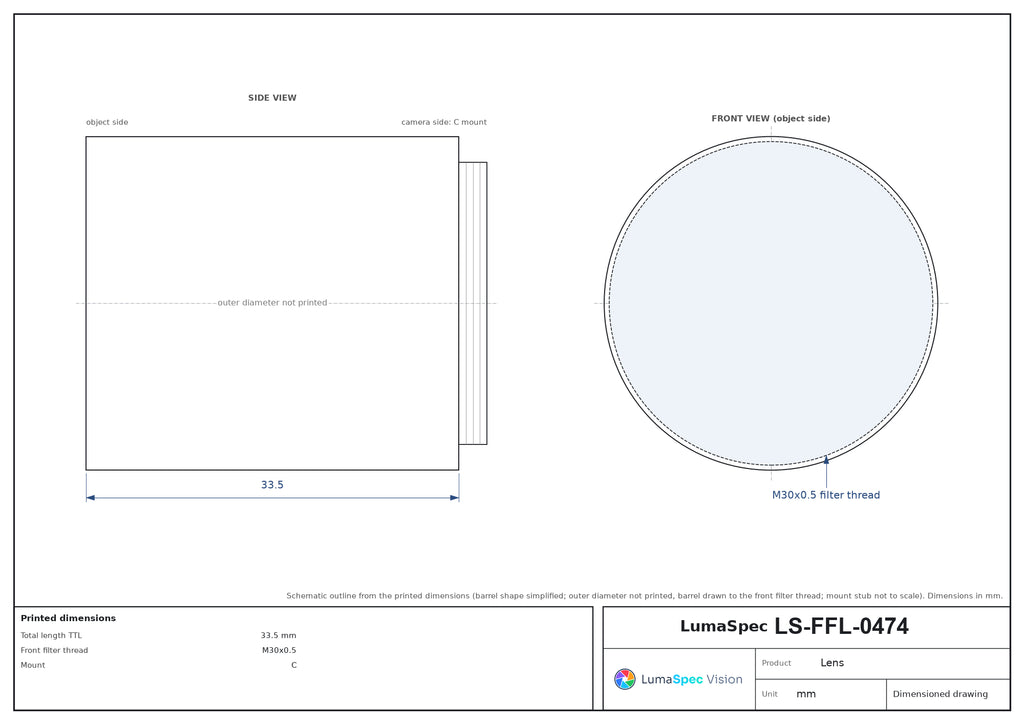

| Total length TTL (mm) | 33.5 |
| Front filter thread | M30x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 11.0(2/3") |
|---|---|
| Resolution (μm) | 14.6 |
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 0.38 kg |
Photo shows a representative model of this series; see the specifications for this model.
