Machine vision lenses
24.97 mm, 1/1.8", C-mount Anti-Vibration Machine Vision Lens, 0.14x (LS-FFL-0464)
Model LS-FFL-0464
- Magnification0.14x
- MountC-mount
- Sensor1/1.8"
- Working distance188 mm
- Resolution26.8
$269.00
From the factory's 2021-2022 catalogue: we confirm availability and lead time by email after your order, and cancel with a full refund if it is no longer made.
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
24.97 mm, 1/1.8", C-mount Anti-Vibration Machine Vision Lens. At a glance: magnification 0.14x; working distance 188 mm; effective focal length efl 24.97 mm; max sensor size 9.0 mm (1/1.8"); resolution 26.8 µm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0464 |
|---|
Optics
| Magnification (x) | 0.14 |
|---|---|
| Working distance (mm) | 188 |
| F/# | 5.6 |
| Numerical aperture NA | 0.0125 |
| Effective focal length EFL (mm) | 24.97 |
| MTF30, average (lp/mm) | 172 |
| Depth of field (mm) | 22.9 |
| TV distortion (%) | -0.0554% |
| Relative illumination (min) | 93% |

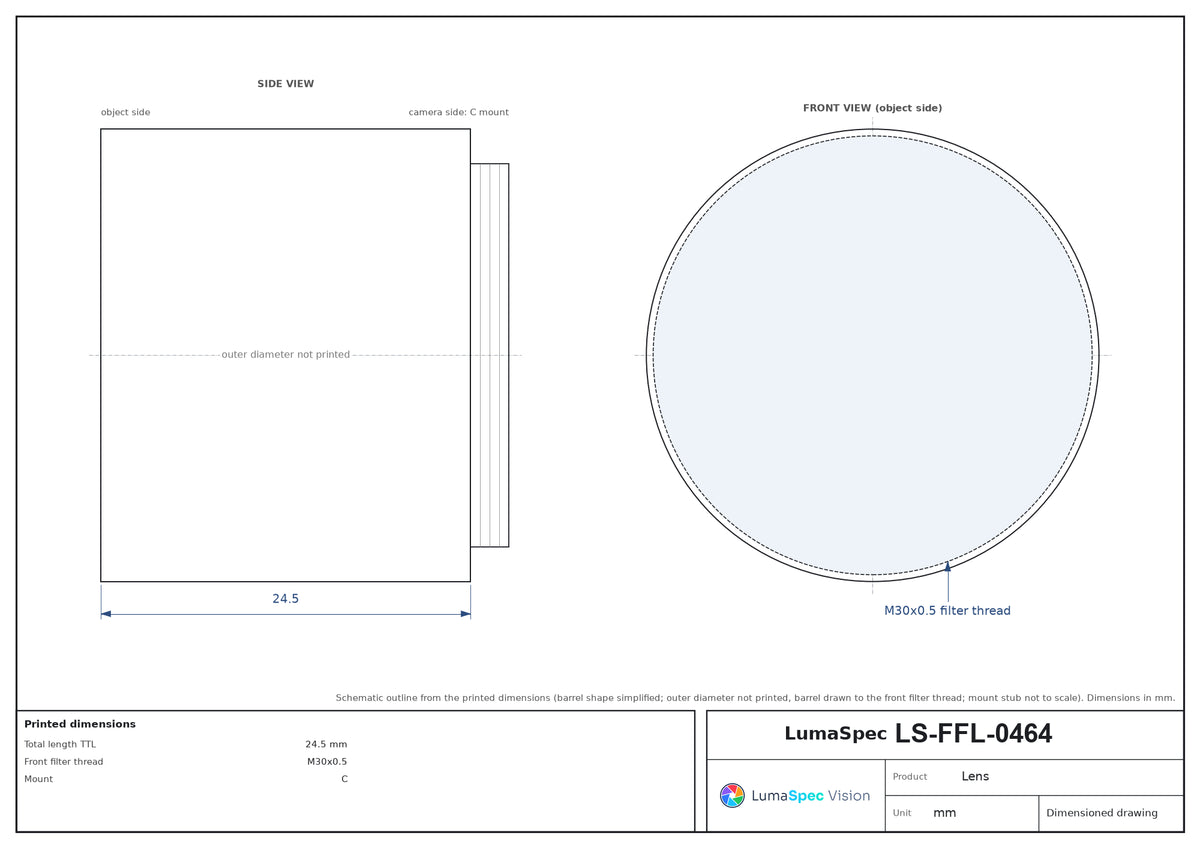

| Total length TTL (mm) | 24.5 |
| Front filter thread | M30x0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 9.0(1/1.8") |
|---|---|
| Resolution (μm) | 26.8 |
Mechanical
| Mount | C |
|---|---|
| Shipping weight (estimated) | 0.38 kg |
Photo shows a representative model of this series; see the specifications for this model.
