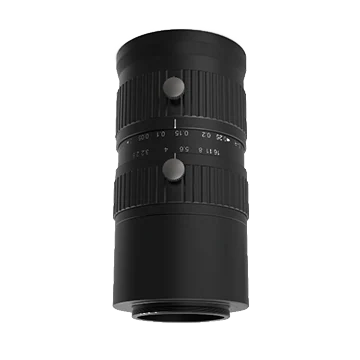

35mm, F2.8, Image Size φ42mm, Recommended Magnification 0.05~0.2X, M42-Mount (LS-FFL-0422)
Model LS-FFL-0422
- Focal length35 mm
- Magnification0.2 x to 0.001 x
- MountM42
- SensorFull frame
- Working distance163 mm to inf mm
- ApertureF2.8 to F16
$639.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.97 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35mm, F2.8, Image Size φ42mm, Recommended Magnification 0.05~0.2X, M42-Mount. Provides excellent consistency of image clarity. Provides large aperture, low distortion, low chromatic aberration, and high corner illuminance.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0422 |
|---|
Optics
| Focal length | 35 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Φ42 mm |
| Optical distortion | 0.40% |
| Magnification range | 0.2 x to 0.001 x |
| Working distance range | 163 mm to inf mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M58 × 0.75 |
| Magnification at working distance (mm) | 163: -0.200; 200: -0.171; 250: -0.139; 300: -0.117; 350: -0.101; 400: -0.089; 450: -0.080; 500: -0.072; 550: -0.066; 600: -0.060; 650: -0.056; 700: -0.052; 750: -0.049; 800: -0.046; 850: -0.043; 900: -0.041; 950: -0.039; 1000: -0.037 |
| Object-to-image distance at working distance (mm) | 163: 290; 200: 322; 250: 371; 300: 421; 350: 470; 400: 520; 450: 569; 500: 619; 550: 669; 600: 719; 650: 769; 700: 819; 750: 868; 800: 918; 850: 968; 900: 1018; 950: 1068; 1000: 1118 |
| Field of view H (mm) at working distance (mm), 4k 7 µm sensor | 163: 144.0; 200: 168.8; 250: 207.3; 300: 245.6; 350: 283.9; 400: 322.2; 450: 360.4; 500: 398.6; 550: 436.8; 600: 475.0; 650: 513.1; 700: 551.3; 750: 589.4; 800: 627.6; 850: 665.7; 900: 703.9; 950: 742.0; 1000: 780.2 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | M42 × P1 |
|---|---|
| Flange back length | 12 mm |

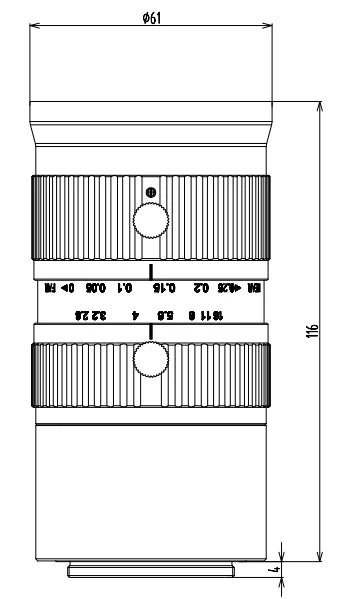

| Dimension | Φ61 mm × 116 mm (Φ2.4" × 4.6") |
| Weight | 622 g (1.4 Ib.) |
| Shipping weight (estimated) | 0.97 kg |
Other models in the LS-FFL-S77 series lenses series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0418 | 18 mm · 0.012 x to 0.105 x | $639.00 | 4 in stock | View |
| LS-FFL-0419 | 20 mm · 0.02 x to 0.134 x | $639.00 | 3 in stock | View |
| LS-FFL-0420 | 25 mm · 0.143 x to 0.001 x | $639.00 | 4 in stock | View |
| LS-FFL-0421 | 28 mm · 0.3x to 0.05x | $639.00 | 3 in stock | View |
| LS-FFL-0423 | 35 mm · 0.164 x to 0.001 x | $639.00 | 4 in stock | View |
| LS-FFL-0424 | 40 mm · 0.22 x to 0.04 x | $639.00 | 3 in stock | View |
| LS-FFL-0425 | 50 mm · 0.267 x to 0.001 x | $639.00 | 3 in stock | View |
| LS-FFL-0426 | 50 mm · 0.323 x to 0.01 x | $639.00 | 2 in stock | View |
| LS-FFL-0417 | 14 mm · 0.0027x ~ 0.0136x ~ 0.043x | $639.00 | 4 in stock | View |
