35 mm lens, 2", M42-mount (LS-FFL-0191)

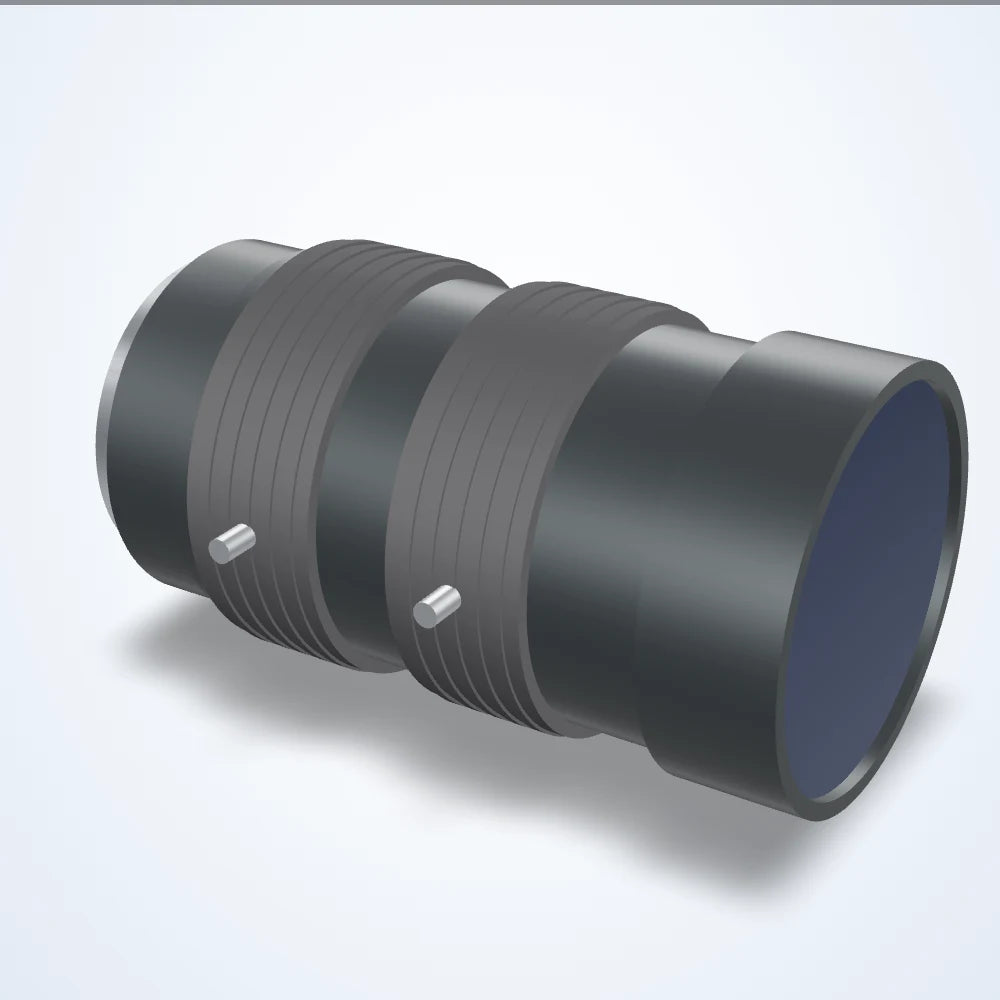

  • 35 mm lens, 2", M42-mount (LS-FFL-0191)

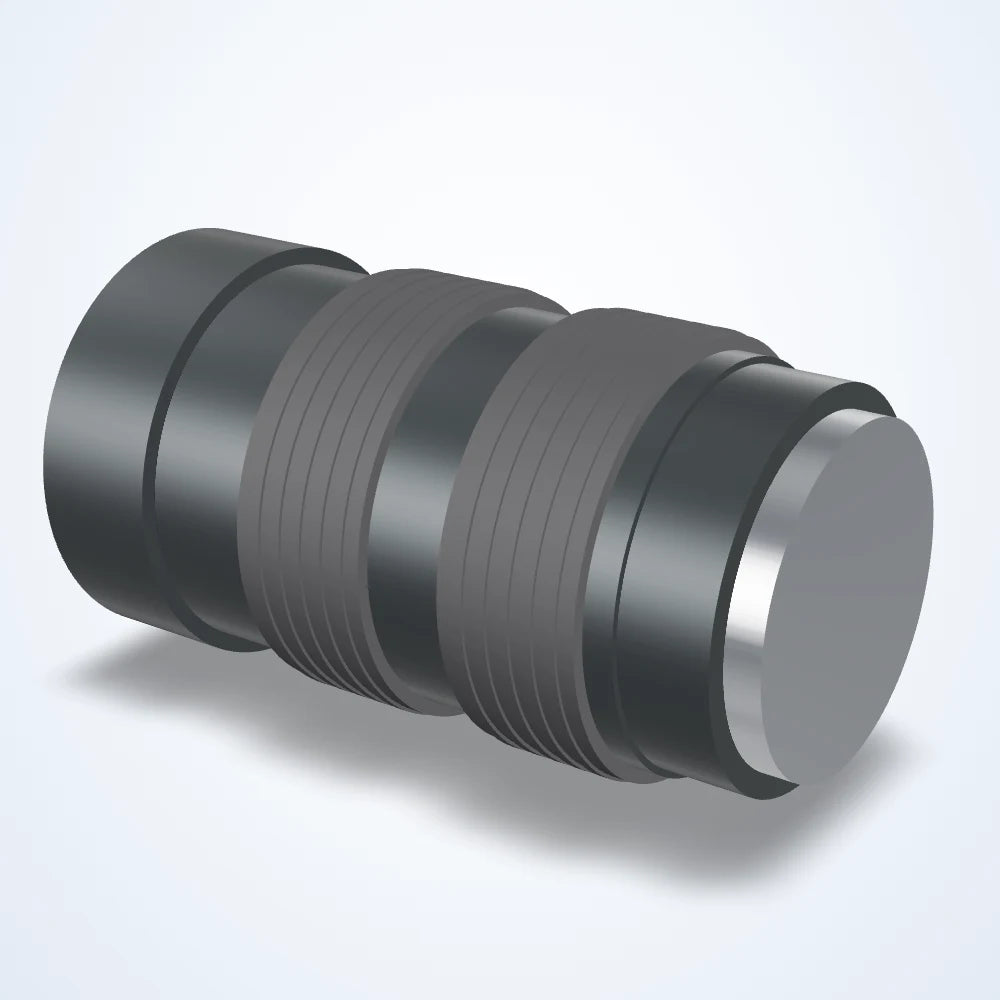

  • 35 mm lens, 2", M42-mount (LS-FFL-0191) - view 2

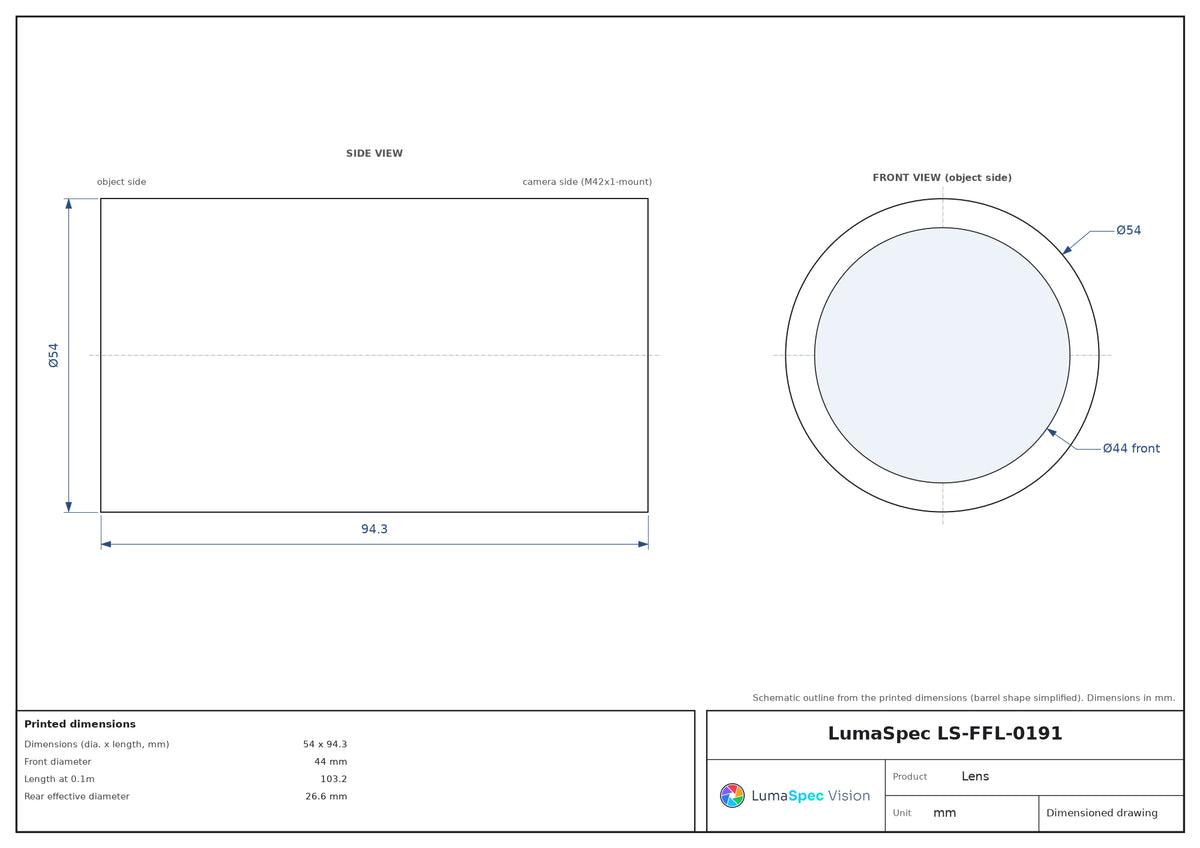

  • LS-FFL-0191 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

35 mm lens, 2", M42-mount (LS-FFL-0191)

Model LS-FFL-0191

  • Focal length35 mm
  • MountM42
  • SensorAPS-H
  • Aperture2.8-16
  • ResolutionCenter 160lp/mm, corner 100lp/mm
$1,359.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

35 mm lens, 2", M42-mount (LS-FFL-0191)LS-FFL-0191

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0191
Angle of viewH 40.2 x V 30.7 deg (D 49.1 deg)
Angle of view @ 2″40.2° × 30.7°
Angle of view @ 4/3″29.5° × 22.3°
Angle of view @ aps-c35.4° × 26.9°
Entrance pupil position38.7 (E.P.)
Exit pupil-53.4mm
Flange back17.526mm in air
Front / rear effective dia.Front 44.0mm / Rear 26.6mm
Lens typeFixed Focal Length
Minimum object distance (m)0.1
Shooting range at mod76(H)×57(V)
SpectrumVisible

Optics

Focal length35 mm
Aperture (F)2.8-16
Distortion0.12% (TV)
Back focus19.5mm in air
Filter threadM52x0.75
Focus controlManual
Focus range0.1 m - ∞
Image circle32 mm
Iris controlManual

Sensor and imaging

Max. sensor format2"
Resolution center/cornerCenter 160lp/mm, corner 100lp/mm

Environment and compliance

Operating temperature range-10 to +50 °C
Storage temperature range-20~+60 C

Mechanical

MountM42x1-mount
Dimensions (dia. x length, mm)54 x 94.3
Front diameter44 mm
Length at 0.1m103.2
Picture size (largest format)25.6x19.6mm
Weight (g)375
