25 mm lens, 2", TFL-mount (LS-FFL-0171)

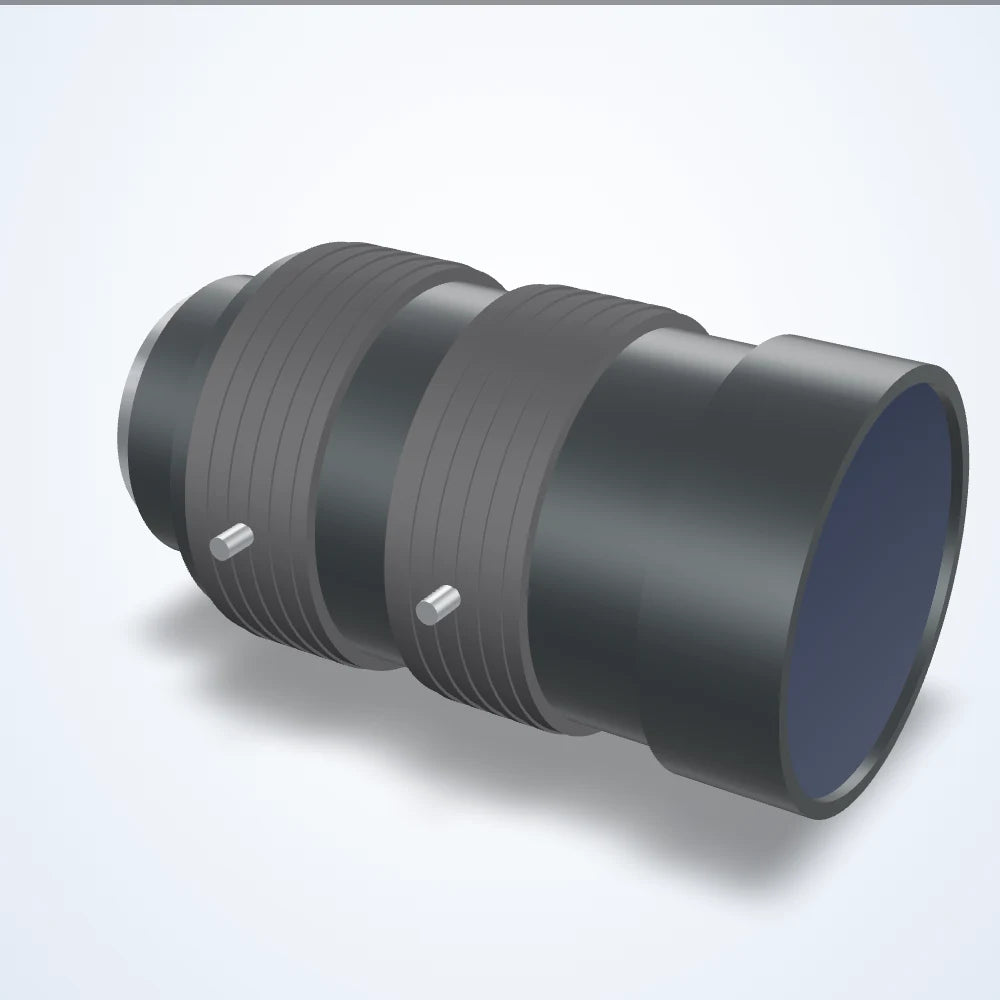

  • 25 mm lens, 2", TFL-mount (LS-FFL-0171)

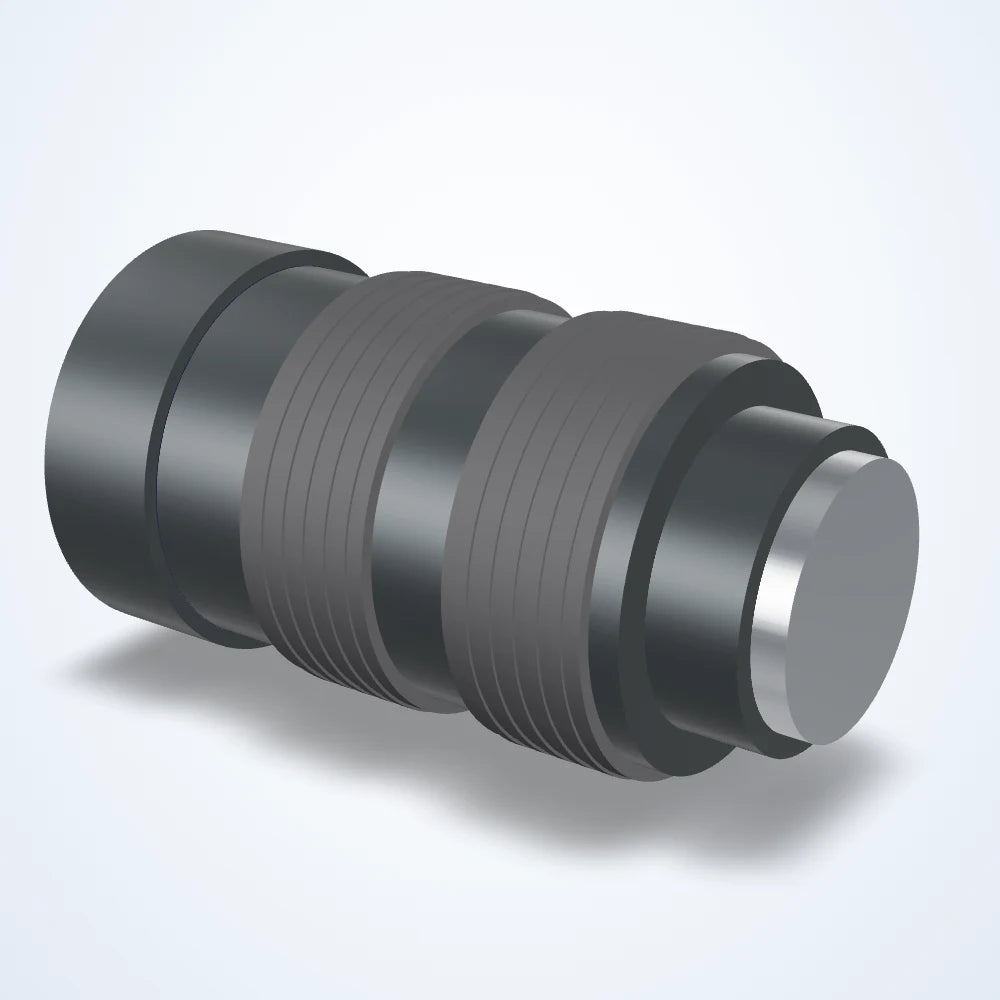

  • 25 mm lens, 2", TFL-mount (LS-FFL-0171) - view 2

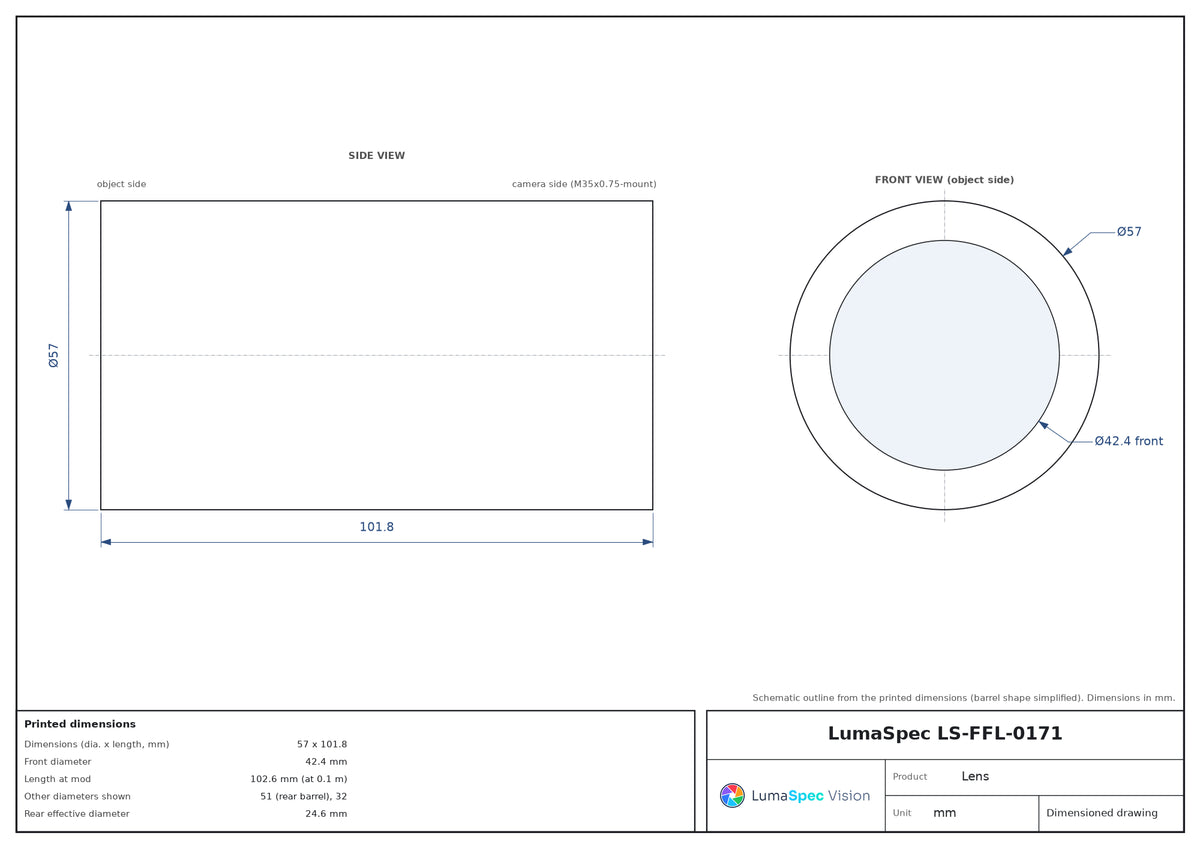

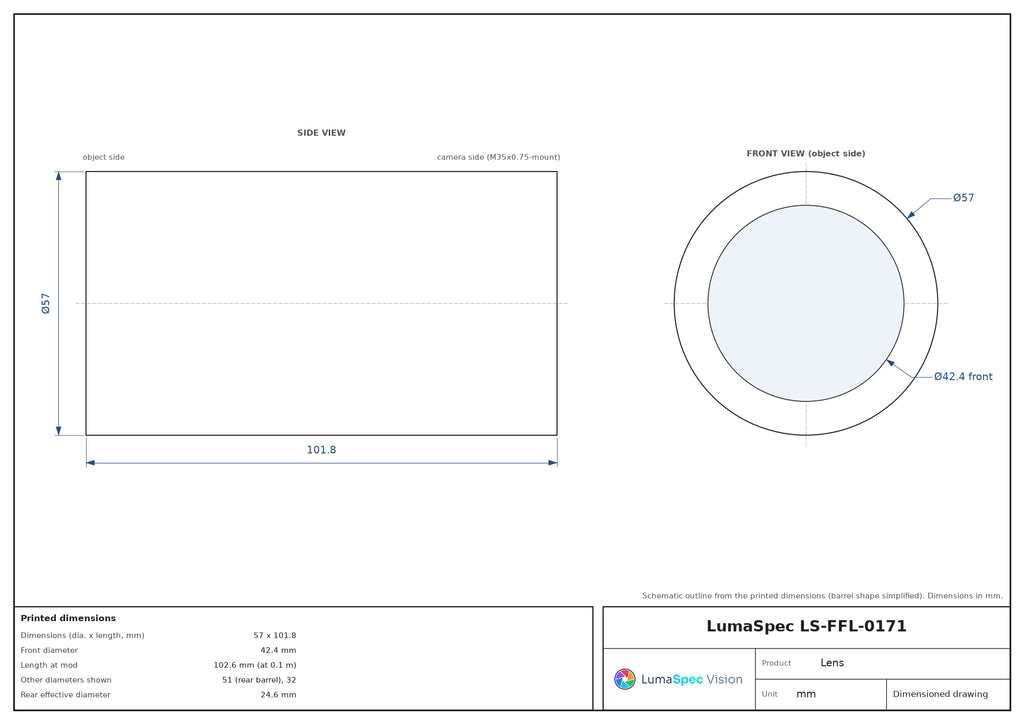

  • LS-FFL-0171 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

25 mm lens, 2", TFL-mount (LS-FFL-0171)

Model LS-FFL-0171

  • Focal length25 mm
  • MountM35x0.75
  • SensorAPS-H
  • Aperture2.8-16
  • ResolutionCenter 160 lp/mm / Corner 100 lp/mm
  • Field of viewV 93mm, H 125mm, D 157mm
$1,439.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

25 mm lens, 2", TFL-mount (LS-FFL-0171)LS-FFL-0171

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0171
Angle of view54.0 x 42.0 deg (H x V), 64.6 deg diagonal
Angle of view @ 2″54.0° × 42.0°
Angle of view @ 4/3″40.4° × 30.9°
Angle of view @ aps-c48.0° × 37.0°
Entrance pupil position30.2 mm from front
Exit pupil-54.1mm
Flange back17.526mm in air
Front / rear effective dia.Front 42.4mm / Rear 24.6mm
Lens typeFixed Focal Length
Minimum object distance (m)0.1
Shooting range at mod125(H)×93(V)
SpectrumVisible

Optics

Focal length25 mm
Aperture (F)2.8-16
Distortion0.59% (TV, 2")
Back focus20.3mm in air
Field of view at mod (2")V 93mm, H 125mm, D 157mm
Filter threadM55x0.75
Focus controlManual
Focus range0.1 m - ∞
Image circle32 mm
Iris controlManual

Sensor and imaging

Max. sensor format2"
Resolution center/cornerCenter 160 lp/mm / Corner 100 lp/mm

Environment and compliance

Operating temperature range-10 to +50 °C
Storage temperature range-20~+60 C

Mechanical

MountM35x0.75-mount
Dimensions (dia. x length, mm)57 x 101.8
Front diameter42.4 mm
Length at mod102.6 mm (at 0.1 m)
Picture size25.6x19.6mm
Weight (g)400
