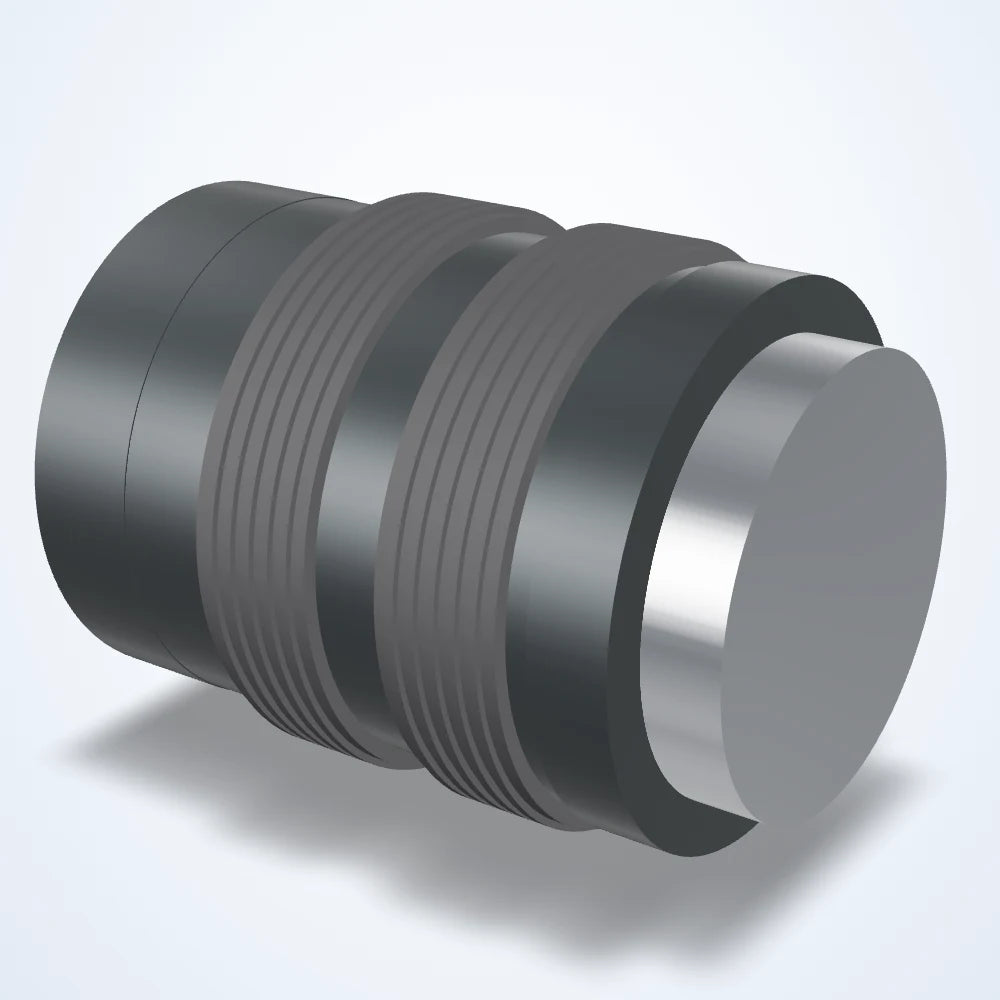

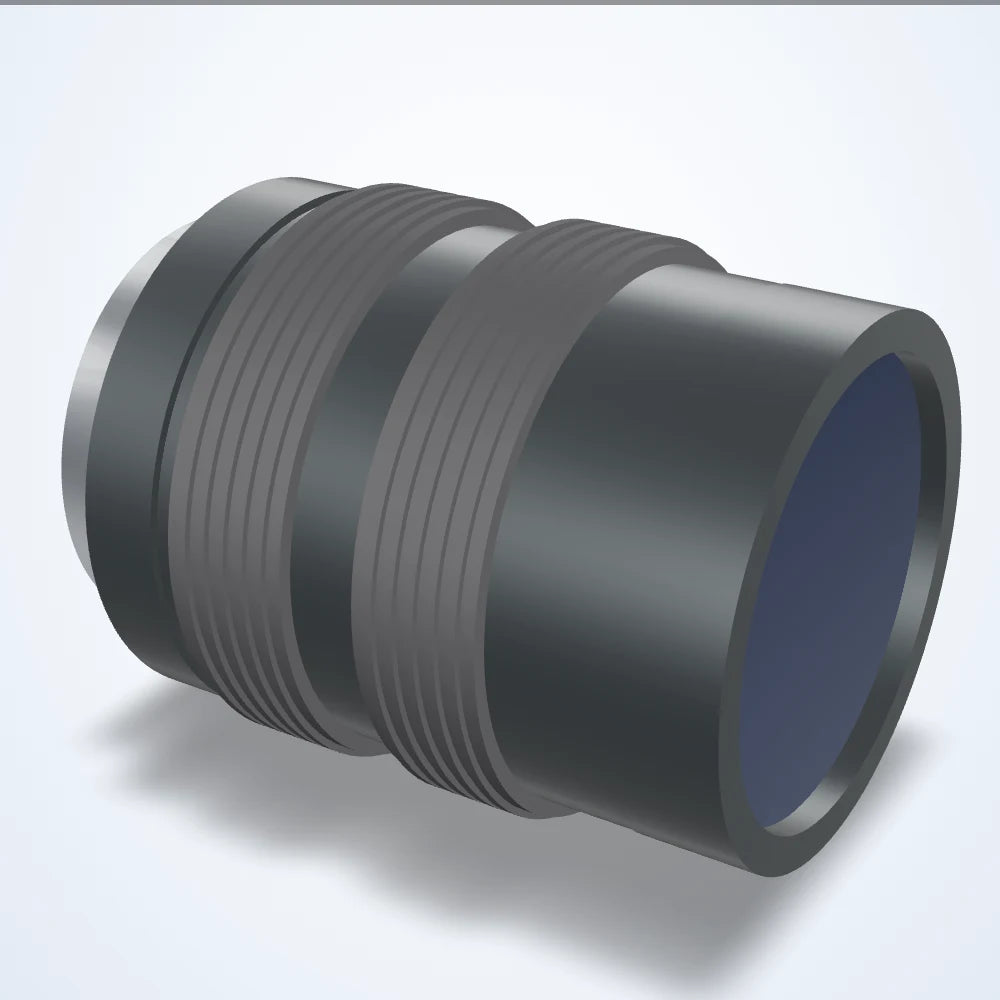

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount, front diameter 21.5 mm (LS-FFL-0186)
Model LS-FFL-0186
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- Aperture2, 4, 8, 16
- Resolution120
$249.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0186 |
|---|---|
| Angle of view | H 14.4 x V 10.8 deg (D 17.9 deg) |
| Angle of view @ 1/1.8″ | 11.8° × 8.8° |
| Angle of view @ 1/2″ | 10.5° × 7.9° |
| Angle of view @ 2/3″ | 14.4° × 10.8° |
| Element | 4 groups 7 elements |
| Entrance pupil position | 30.4 (E.P.) |
| Exit pupil | -38.8mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 21.5mm / Rear 11.7mm |
| Lens type | Fixed Focal Length |
| Lock ring | Red |
| Minimum object distance (m) | 0.2 |
| Shooting range at mod | 47.9(H)×35.8(V) |
| Spectrum | Visible |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 2, 4, 8, 16 |
| Distortion | -0.2% (TV) |
| Back focus | 20.1mm in air (mechanical 14.0mm in air) |
| Filter thread | M27.0x0.5 |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -40~+60 C |
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 33 x 38.8 |
| Front diameter | 21.5 mm |
| Length at 0.2m | 45.3 |
| Picture size (largest format) | 6.6x8.8mm |
| Weight (g) | 72.5 |
