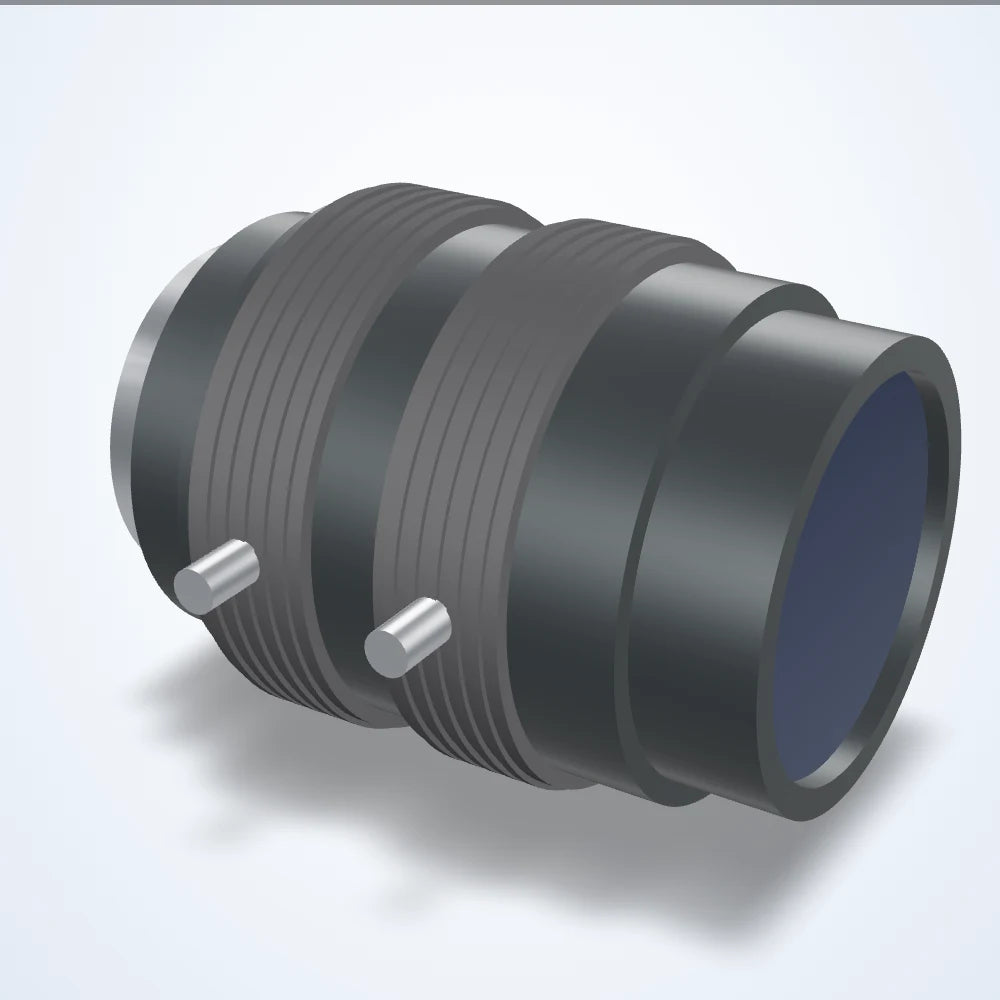

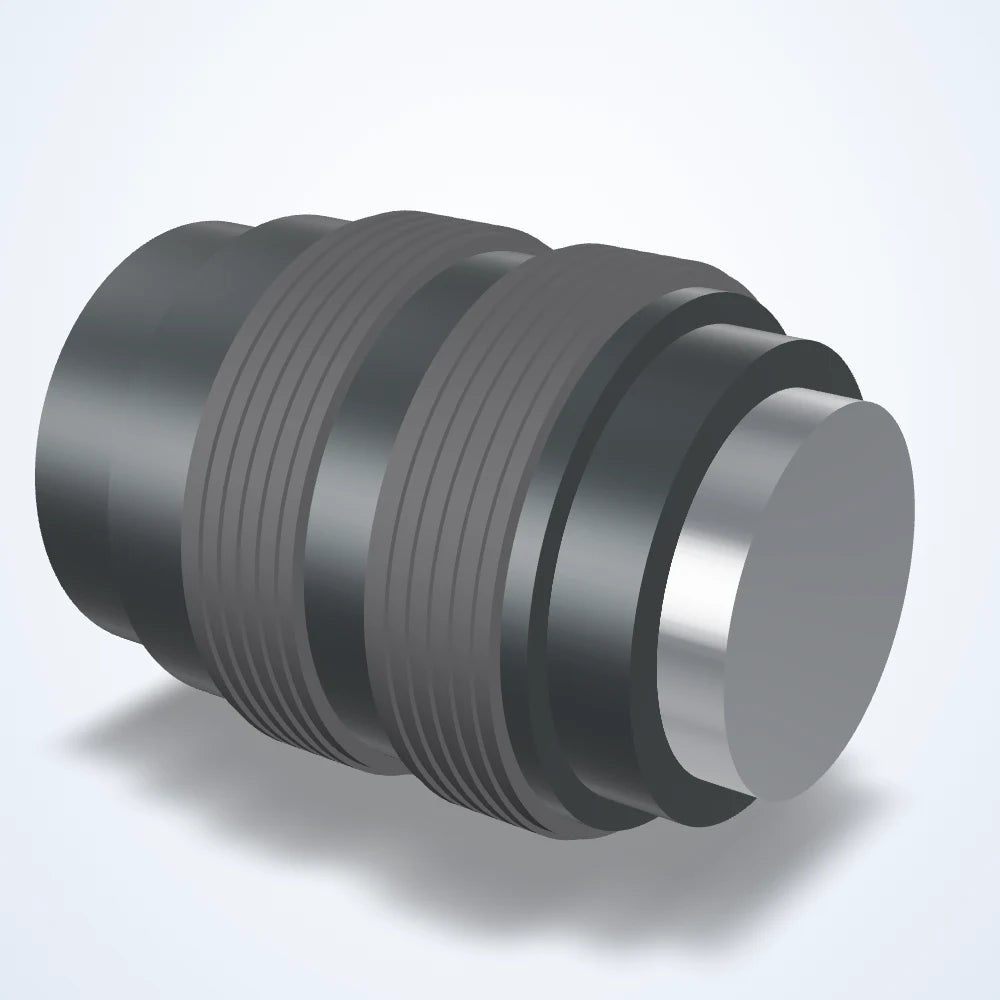

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount, front diameter 23.5 mm (LS-FFL-0185)
Model LS-FFL-0185
- Focal length35 mm
- Magnification0.47×
- MountC-mount
- Sensor2/3"
- Aperture1.6-16
- ResolutionCenter 160/mm, corner 125/mm
$509.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0185 |
|---|---|
| Angle of view | H 14.3 x V 10.8 deg (D 17.5 deg) |
| Angle of view @ 1/1.8″ | 11.7° × 8.8° |
| Angle of view @ 1/2″ | 10.4° × 7.8° |
| Angle of view @ 2/3″ | 14.3° × 10.8° |
| Element | 7 groups 9 elements |
| Entrance pupil position | 35.8 (E.P.) |
| Exit pupil | -39.2mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 23.5mm / Rear 14.5mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.18 |
| Minimum object distance with 10mm ring | 78 mm |
| Minimum object distance with 1mm ring | 160 mm |
| Minimum object distance with 20mm ring | 79 mm |
| Minimum object distance with 5mm ring | 109 mm |
| Shooting range at mod | 42.1(H)×31.6(V) |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 1.6-16 |
| Distortion | -0.03% (TV) |
| Back focus | 12.2mm in air |
| Filter thread | M30.5x0.5 |
| Focus control | Manual |
| Focus range | 0.18 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Magnification with 10mm ring | 0.47× |
| Magnification with 1mm ring | 0.235× |
| Magnification with 20mm ring | 0.728× |
| Magnification with 5mm ring | 0.341× |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution center/corner | Center 160/mm, corner 125/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

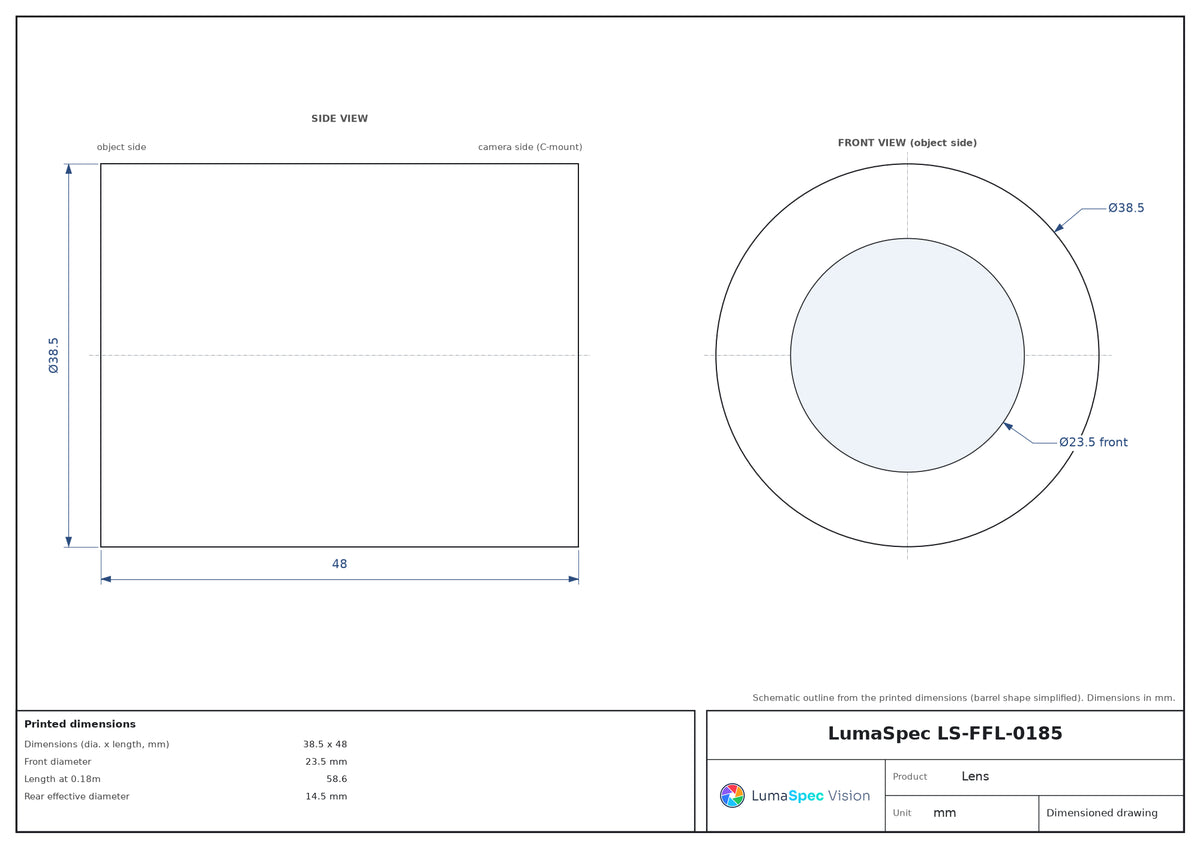

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 38.5 x 48 |
| Front diameter | 23.5 mm |
| Length at 0.18m | 58.6 |
| Picture size (largest format) | 6.6x8.8mm |
| Weight (g) | 120 |
Other models in the Lens series, 2/3", C-mount (S25) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0136 | 12.5 mm | $509.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0151 | 16 mm | $509.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0167 | 25 mm | $509.00 Quote | Lead time confirmed with your quote | View |
