Machine vision lenses
16 mm lens, 2/3", C-mount, 24.5 mm dia., dimensions 38.5 x 52 (LS-FFL-0151)
Model LS-FFL-0151
- Focal length16 mm
- Magnification0.195×
- MountC-mount
- Sensor2/3"
- Aperture1.4-16
$509.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0151 |
|---|---|
| Angle of view | 29.9 x 22.7 deg (H x V), 36.9 deg diagonal |
| Angle of view @ 1/1.8″ | 24.7° × 18.6° |
| Angle of view @ 1/2″ | 22.0° × 16.6° |
| Angle of view @ 2/3″ | 29.9° × 22.7° |
| Element | 9 groups 10 elements |
| Entrance pupil position | 29.3 mm from front |
| Exit pupil | -105.7mm |
| Flange back | 17.526mm in air |
| Front / rear effective dia. | Front 24.5mm / Rear 16.6mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 1mm ring | 62 mm |
| Shooting range at mod (2/3") | V 48.4mm, H 64.6mm, D 81.1mm |
| Spectrum | Visible |
| Thumb screw | M2 |
Optics
| Focal length | 16 mm |
|---|---|
| Aperture (F) | 1.4-16 |
| Distortion | 0.03% (TV) |
| Back focus | 11.6mm in air |
| Filter thread | M30.5x0.5 |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Magnification with 1mm ring | 0.195× |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Resolution center/corner | Center 160 lines/mm / Corner 100 lines/mm |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|---|
| Storage temperature range | -20~+60 C |

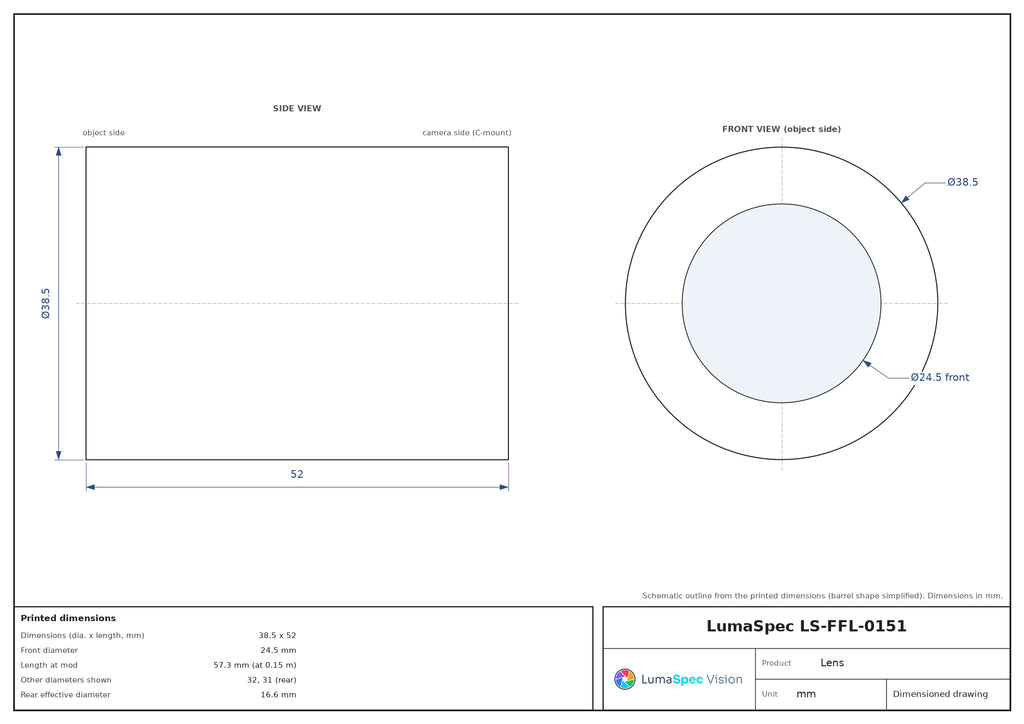

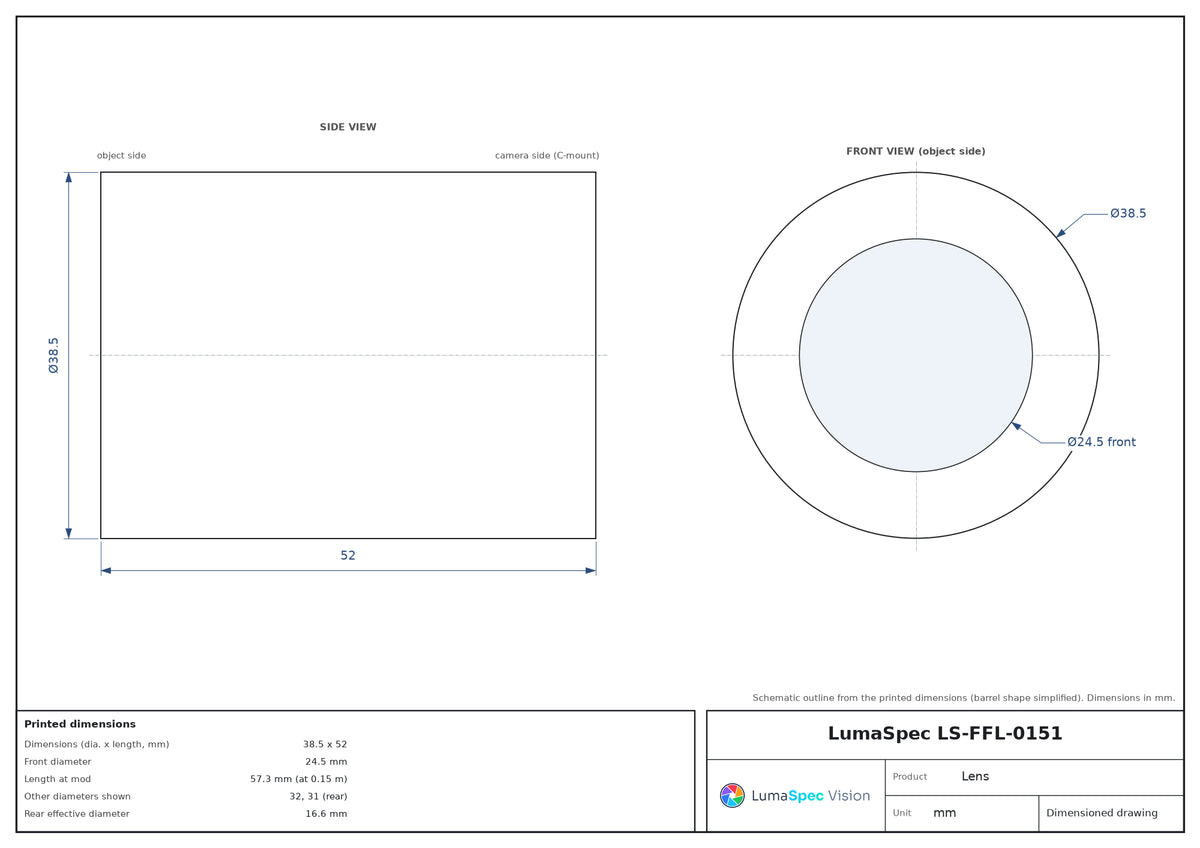

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions (dia. x length, mm) | 38.5 x 52 |
| Front diameter | 24.5 mm |
| Length at mod | 57.3 mm (at 0.15 m) |
| Mount thread | 1-32UNF |
| Weight (g) | 125 |
