Machine vision lenses

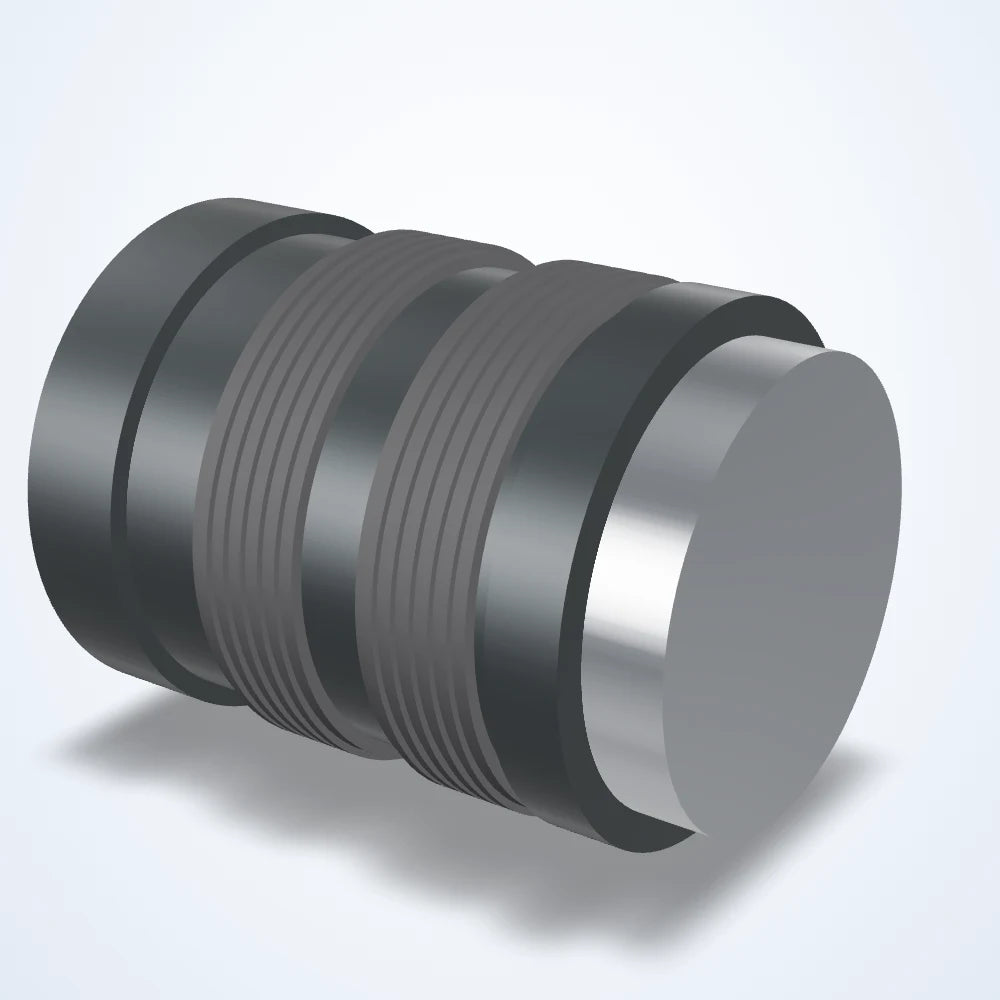

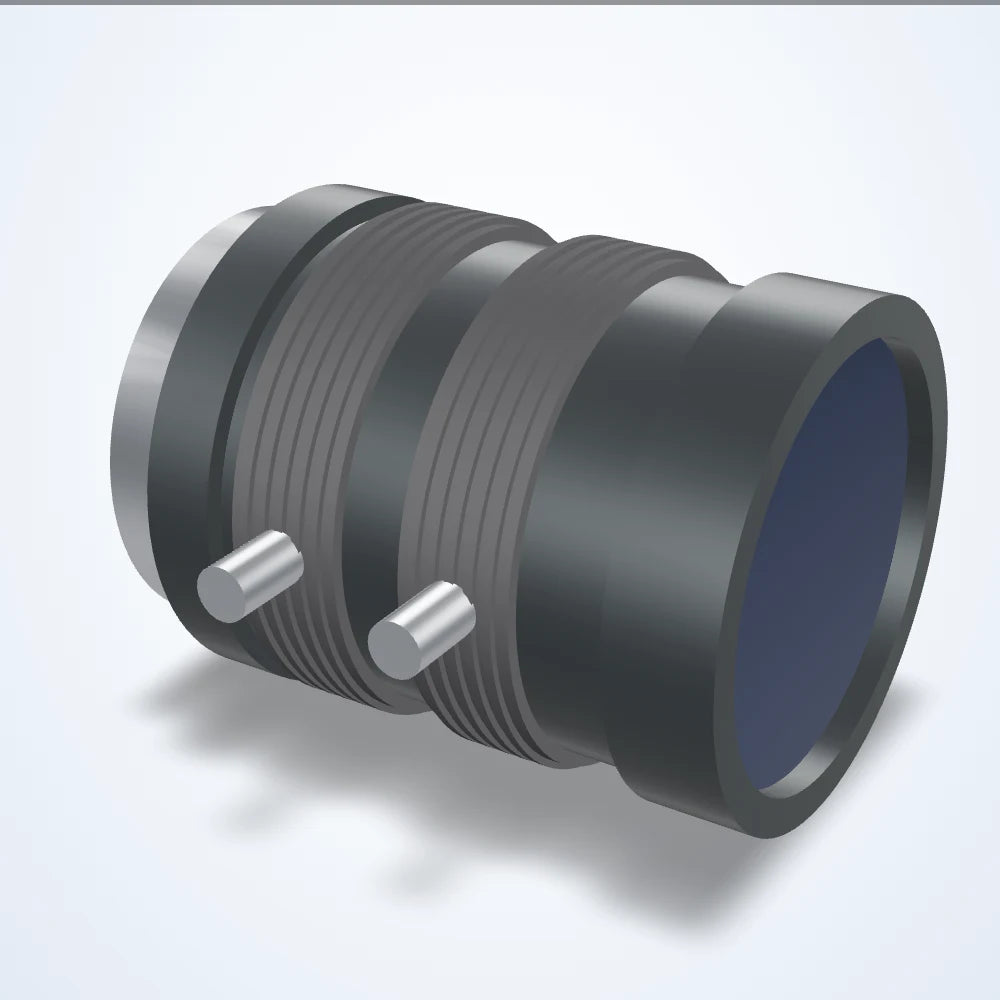

9 mm lens, 2/3", C-mount, filter thread M27 x 0.5 (LS-FFL-0126)
Model LS-FFL-0126
- Focal length9 mm
- MountC-mount
- Sensor2/3"
- Working distance∞ - 100 mm
- ApertureF1.4-F16
$139.00
Sold by quote: request a quote and we confirm the price, lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
lumaspecvision.com/products/lumaspec-ls-ffl-0126
LS-FFL-0126: focal length 9 mm, max. sensor format 2/3", aperture (F) F1.4-F16, mount C-mount.
Machine vision lens for industrial cameras.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-FFL-0126 |
|---|---|
| 1" | Not Compatible |
| 1.1" | Not Compatible |
| 1/1.2" | Not Compatible |
| 1/1.8" | Compatible |
| 1/2" | Compatible |
| 2/3" | Compatible |
| 4/3" | Not Compatible |
| Angle of view (h x v) | 53.3° x 40.5° (2/3") |
| Angle of view [deg] | 53.3 x 40.5 (2/3") |
| Distance between principal points | 21.21 mm |
| Exit pupil position (from image plane) | -28.33 mm |
| Exit pupil position (from image plane) [mm] | -28.33 |
| Flange back | 17.526 mm |
Optics
| Focal length | 9 mm |
|---|---|
| Aperture (F) | F1.4-F16 |
| Distortion | -2.00% (TV) |
| Back focal distance (in air) | 13.48 mm |
| Filter thread | M27 x 0.5 |
| Focal length [mm] | 9 (9.23) |
| Iris range (f-number) | F1.4-F16 |
| Operation of focus | Manual |
| Operation of iris | Manual |
| Relative illumination (full open, diagonal) | 32 |
| TV distortion [%] | -2.00 |
| Working distance (from front of lens barrel) | ∞ - 100 mm |
| Working distance [mm] (from front of lens barrel) | ∞-100 |
Sensor and imaging
| Max. sensor format | 2/3" |
|---|---|
| Sensor size (max) | 2/3" |
Environment and compliance
| Operating temperature | -10 to +50 C |
|---|---|
| Operation temperature | -10 to 50 °C |
Mechanical
| Mount | C-mount |
|---|---|

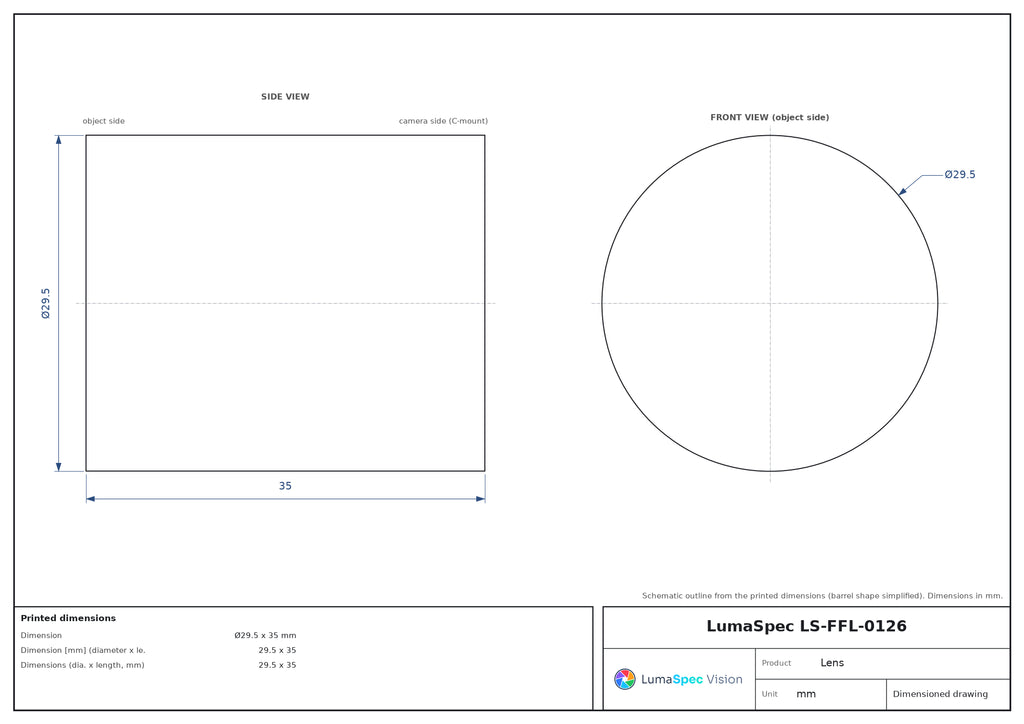

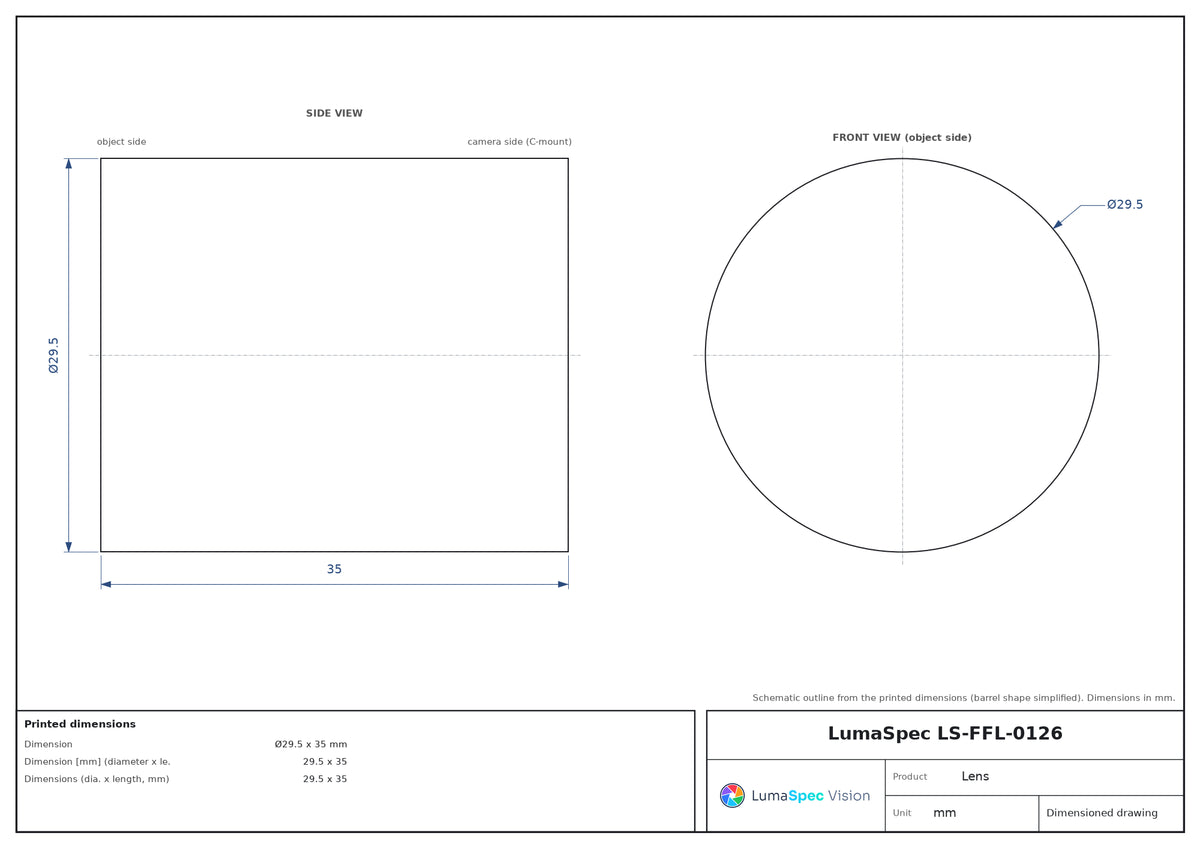

| Dimension | Ø29.5 x 35 mm |
| Dimension [mm] (diameter x length) | 29.5 x 35 |
| Dimensions (dia. x length, mm) | 29.5 x 35 |
| Front principal point (from mount) | -12.91 mm |
| Front principle point (from mount) | -12.91 |
| Rear principal point (from mount) | 8.30 mm |
| Rear principle point (from mount) | 8.30 |
| Weight [g] | 55 |
| Weight (g) | 55 |
Engineering data
Field of view with the LS-FFL-0126
Focal length9 mm
Image circleØ 11 mmCovers sensors up to 2/3"
Distortion2 %
Back focal length13.48 mm
Flange distance17.526 mm
SizeØ 29.5 × 35 mm
Filter threadM27 × 0.5
Weight55 g
| Sensor format | At 100 mm | At 200 mm | At 500 mm | At 1000 mm |
|---|---|---|---|---|
| 1/2.5"5.76 × 4.29 mm | 64 × 47.7 mm | 128 × 95.3 mm | 320 × 238 mm | 640 × 477 mm |
| 1/2"6.4 × 4.8 mm | 71.1 × 53.3 mm | 142 × 107 mm | 356 × 267 mm | 711 × 533 mm |
| 1/1.8"7.18 × 5.32 mm | 79.8 × 59.1 mm | 160 × 118 mm | 399 × 296 mm | 798 × 591 mm |
| 2/3"8.8 × 6.6 mm | 97.8 × 73.3 mm | 196 × 147 mm | 489 × 367 mm | 978 × 733 mm |
Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length, with the distance measured to the front of the lens; closest to reality when the distance is many times the focal length. Sensor sizes are typical for each optical format.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part9 mm lens, 2/3", C-mount, filter thread M27 x 0.5 (LS-FFL-0126)
$139.00
-
Cameras this lens fits
2.3 MP Camera Link area scan camera, PYTHON2000, 2/3" global shutter, 38 fps (LS-CMR-0072)
$750.00
Set total $889.00
Added to your quote list.
Cameras this lens fits
Its 10.9 mm sensor diagonal uses 99 % of this lens's 11 mm image circle
1.3 MP NIR GigE area scan camera, 2/3" global shutter, 59.2 fps
LS-CMR-0089
- Resolution 1.3 MP
- Sensor 2/3"
$830.00
Ships in 3-4 weeks
Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle
GigE area scan camera with CMOS sensor, 5.0 MP, Color/Mono, 2448 x 2048 resolution
LS-CMR-0406
- Resolution 2448 x 2048
- Sensor CMOS
$509.00
Ships in 2-3 weeks
Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle
8.1 MP USB3 area scan camera, IMX546, 2/3" global shutter, 46 fps
LS-CMR-0158
- Resolution 2840 × 2840
- Sensor 2/3"
$1,400.00
Ships in 3-4 weeks
Its 11 mm sensor diagonal uses 100 % of this lens's 11 mm image circle
10 GigE area scan camera, 2.8 MP, Color/Mono
LS-CMR-0310
- Resolution 1936×1464
- Sensor CMOS
$2,699.00
Ships in 2-3 weeks
Its 10.9 mm sensor diagonal uses 99 % of this lens's 11 mm image circle
USB3.0 area scan camera, 12 MP, Color/Mono, 1/1.7"
LS-CMR-0350
- Resolution 4000×3000
- Sensor CMOS
$379.00
Ships in 2-3 weeks
Its 9.2 mm sensor diagonal uses 84 % of this lens's 11 mm image circle
Adapters
For CS-mount cameras
C-to-CS-mount adapter ring, 5 mm
LS-LXR-0266
- Type C-to-CS adapter ring
- Use C-mount lens on CS-mount camera
$59.00
Ships in 2-3 weeks
Filters for this lens's filter thread
Band-pass filter, 365 nm (near UV), M27 x 0.5 thread
LS-LXR-0204
- Thread M27xP0.5
- Type Filters & polarizers
$109.00
Ships in 2-3 weeks
M27 x 0.5 filter thread, the same as this part's
Band-pass filter, 470 nm (blue), M27 x 0.5 thread
LS-LXR-0209
- Thread M27xP0.5
- Type Filters & polarizers
$109.00
Ships in 2-3 weeks
M27 x 0.5 filter thread, the same as this part's
Band-pass filter, 525 nm (green), M27 x 0.5 thread
LS-LXR-0214
- Thread M27xP0.5
- Type Filters & polarizers
$109.00
Ships in 2-3 weeks
M27 x 0.5 filter thread, the same as this part's
Band-pass filter, 660 nm (bright red), M27 x 0.5 thread
LS-LXR-0219
- Thread M27xP0.5
- Type Filters & polarizers
$109.00
Ships in 2-3 weeks
M27 x 0.5 filter thread, the same as this part's
Band-pass filter, 850 nm (near IR), M27 x 0.5 thread
LS-LXR-0224
- Thread M27xP0.5
- Type Filters & polarizers
$109.00
Ships in 2-3 weeks
M27 x 0.5 filter thread, the same as this part's
Band-pass filter, 940 nm (near IR), M27 x 0.5 thread
LS-LXR-0229
- Thread M27xP0.5
- Type Filters & polarizers
$109.00
Ships in 2-3 weeks
M27 x 0.5 filter thread, the same as this part's
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-FFL-1454, the same type of part
Plastics, rubber and ceramics
Ceramic glaze appearance under polarized light
Stabilize glare and colour processing before assigning a surface threshold.MethodWhite polarized ring illuminationExplore the study
Set up with the LS-FFL-1455, the same type of part
Electronics and devices
Crimp terminal colours
Cut the glare first, then judge colour and position.Light in sourceLS-RNG-0586 · whiteExplore the study
Set up with the LS-FFL-1542, the same type of part
Food, pharma and agriculture
Apple bruises: NIR vs SWIR
Match the wavelength, sensor and optics as one system.NIR940 nmExplore the study
Before you buy
Questions about the LS-FFL-0126
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which cameras does the LS-FFL-0126 cover?
Its image circle (about 11 mm) covers these fit-tested cameras: LS-CMR-0072 (2/3", 2.3 MP), LS-CMR-0089 (2/3"), LS-CMR-0406 (2/3", 5 MP) and LS-CMR-0158 (2/3", 8.1 MP).
What field of view does the LS-FFL-0126 give at 200 mm?
About 196 x 147 mm on a 2/3" sensor, about 978 x 733 mm at 1000 mm (calculated: sensor size x distance / 9 mm focal length).
Does the LS-FFL-0126 need an adapter for C-mount or CS-mount cameras?
No for a C-mount camera: it is a C-mount lens. Yes for a CS-mount camera: fit a 5 mm C-CS adapter ring such as LS-LXR-0266.
What sensor size is the LS-FFL-0126 made for?
The maximum sensor format is 2/3". The sensor size (max) is 2/3".
Which filters fit the LS-FFL-0126?
Filters with its printed M27 x 0.5 filter thread: LS-LXR-0204, LS-LXR-0209, LS-LXR-0214, LS-LXR-0219, LS-LXR-0224 and LS-LXR-0229.
