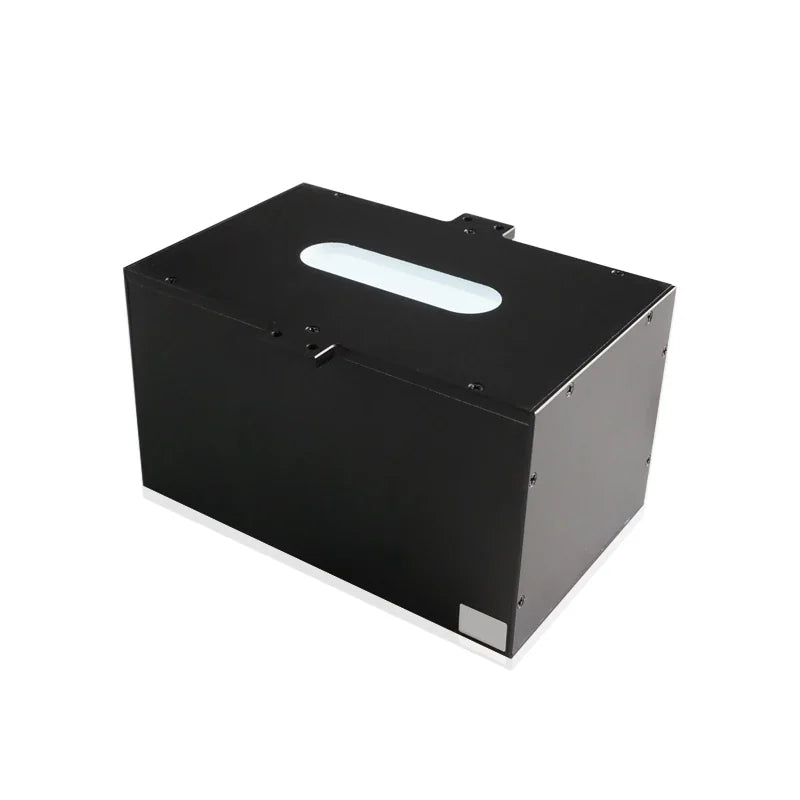

Representative photo of this series
Shadowless lights
Square shadowless light, 145 x 132 x 98 mm (LS-FDM10090)
Model LS-FDM10090
- ColourRed, Green, Blue, White
- Emitting area100 x 90 mm
- SizeL145xW132xH98(mm)
- Voltage24V
- Power14.4W/18.0W
$339.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.1 kg shipping weight
Volume pricing, Net 30 or a formal quote?
High uniformity, high luminance. Large emitting area, wide range of applications. Can be used in large FOV with multiple cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FDM10090 |
|---|---|
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable polarity | 1: +, 2: NC, 3: - |
|---|---|
| Cable (mm) | 500 (drawing) |
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 100 x 90 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 14.4W/18.0W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L145xW132xH98(mm) |
|---|---|
| Mounting holes | 12-M3 depth 3 |
| Shipping weight | 1.10 kg |
Other models in the Square shadowless light (FDM) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FDM11256 | Red, Green, Blue, White · 112 x 56 mm | $329.00 | 15 in stock | View |
