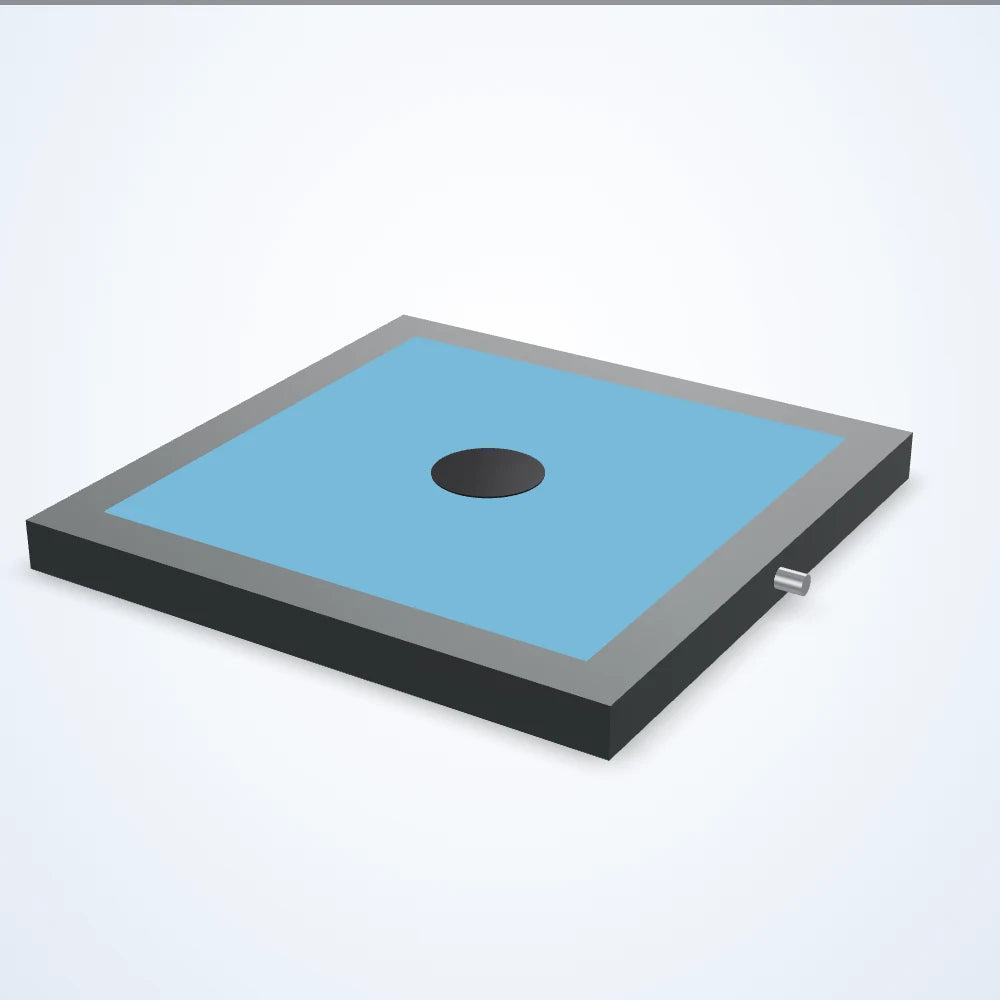

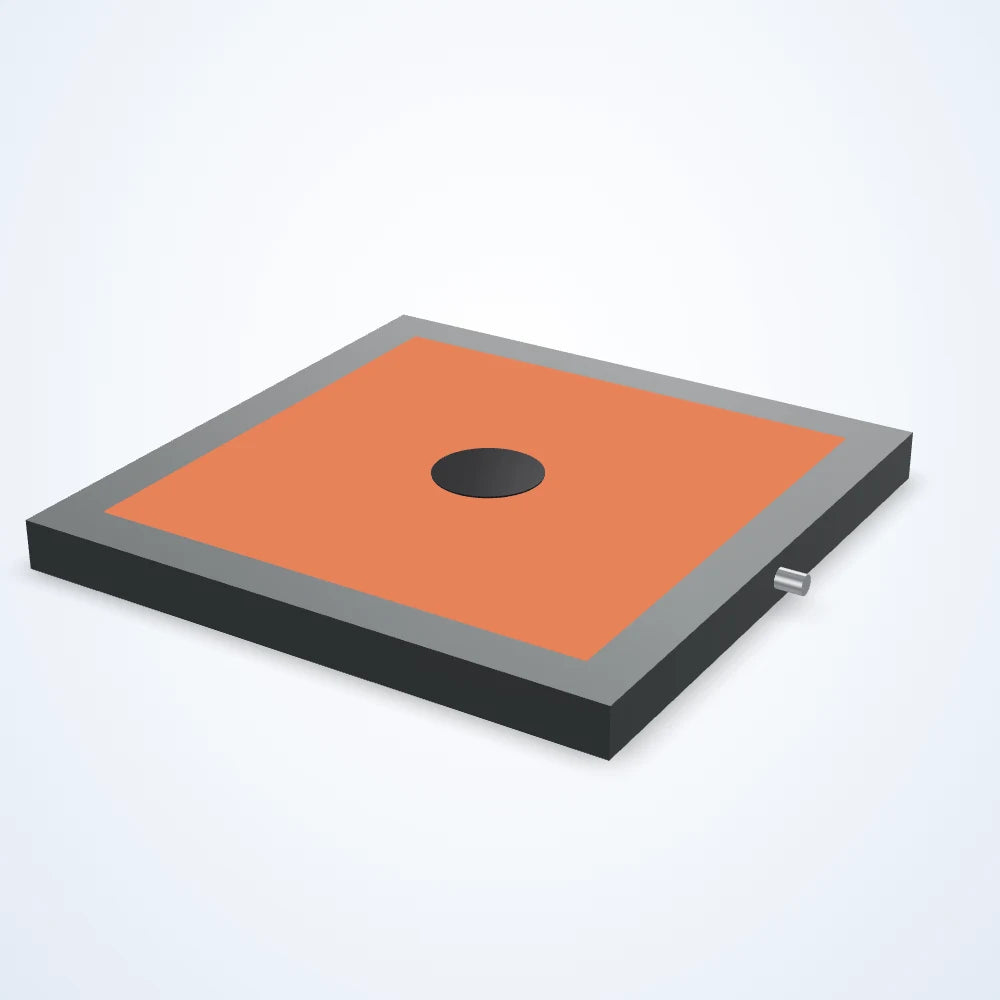

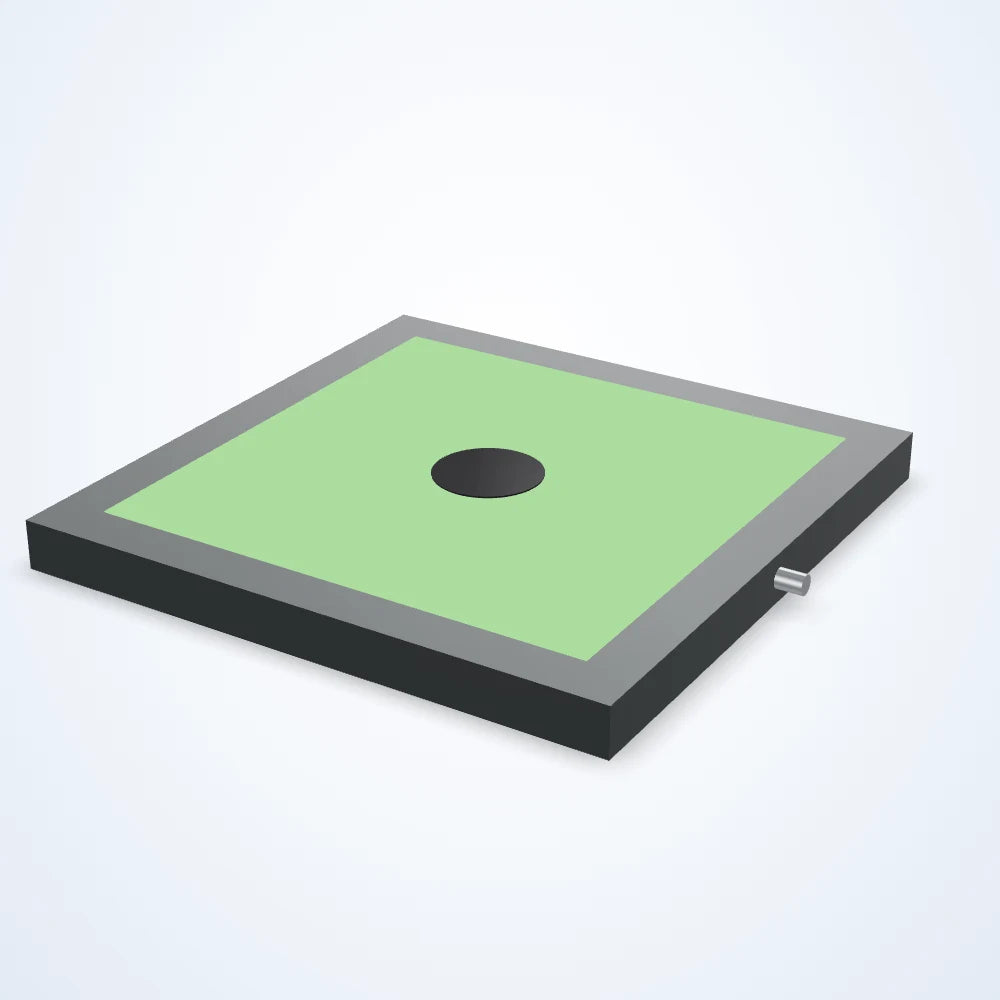

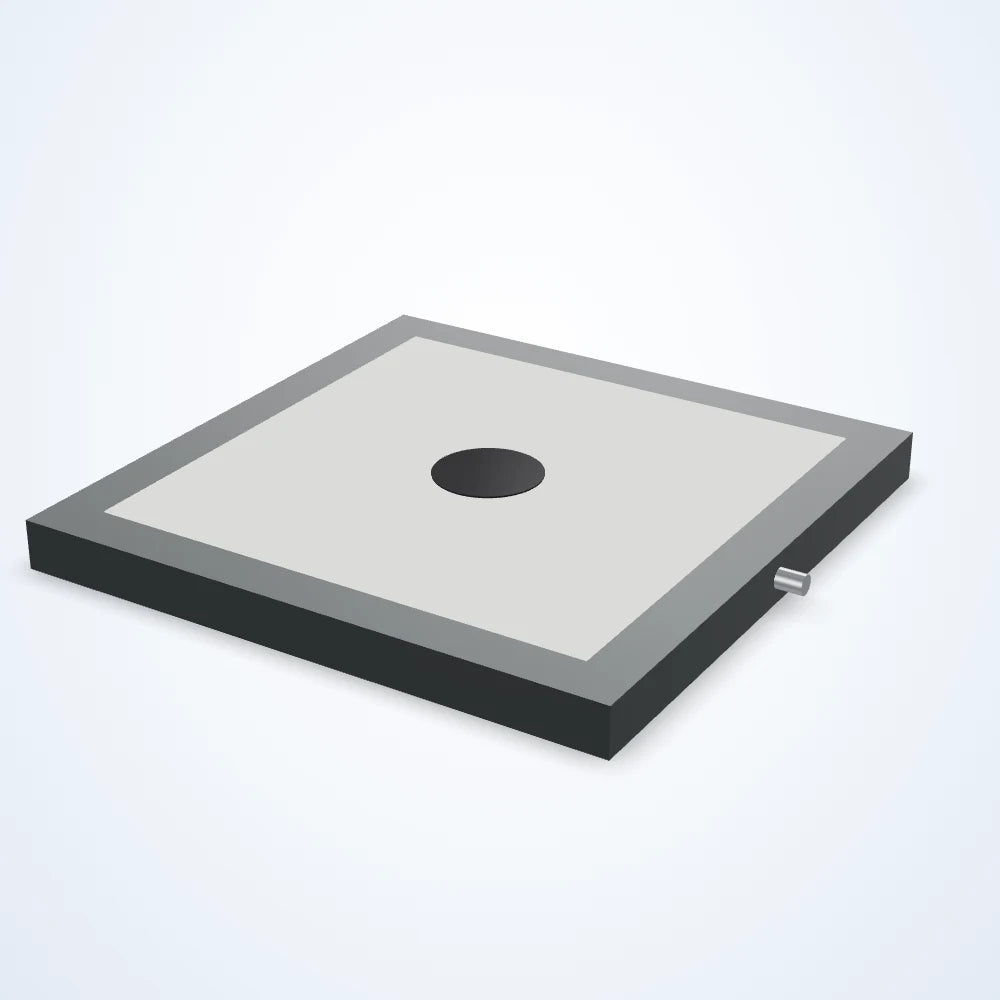

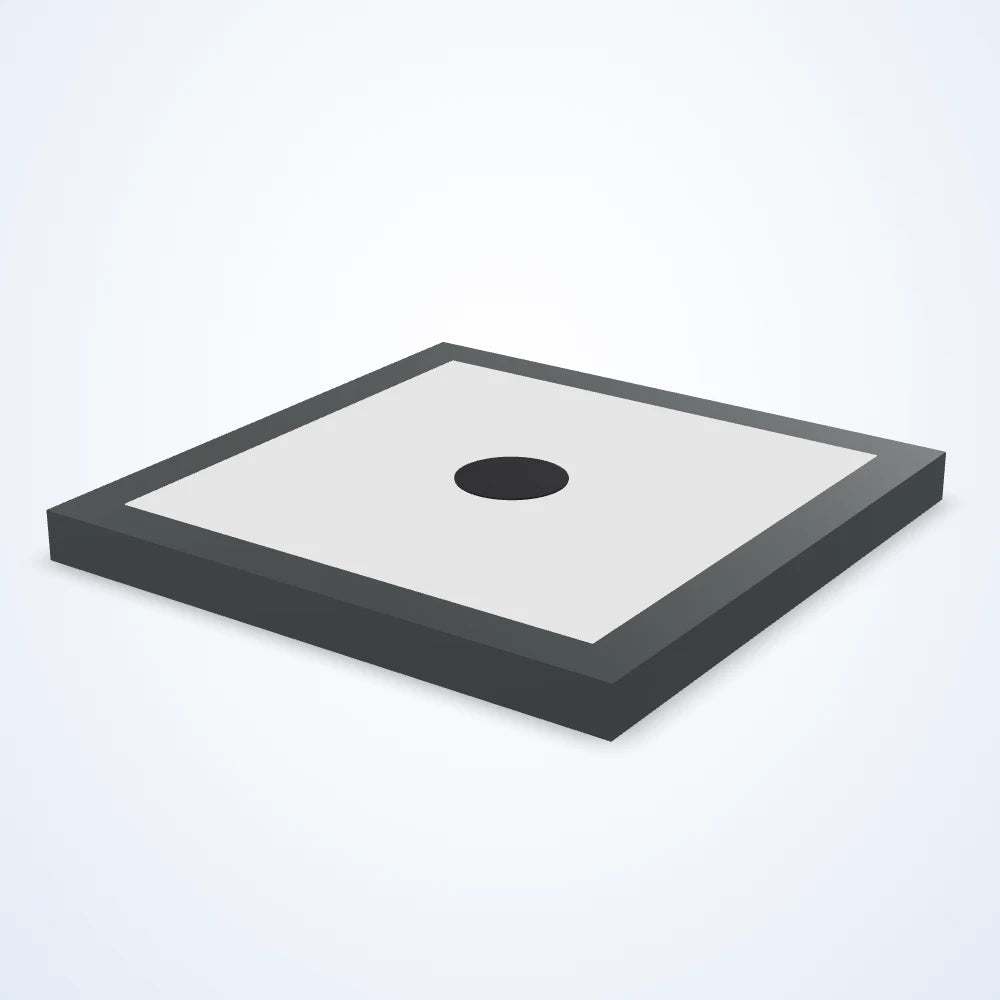

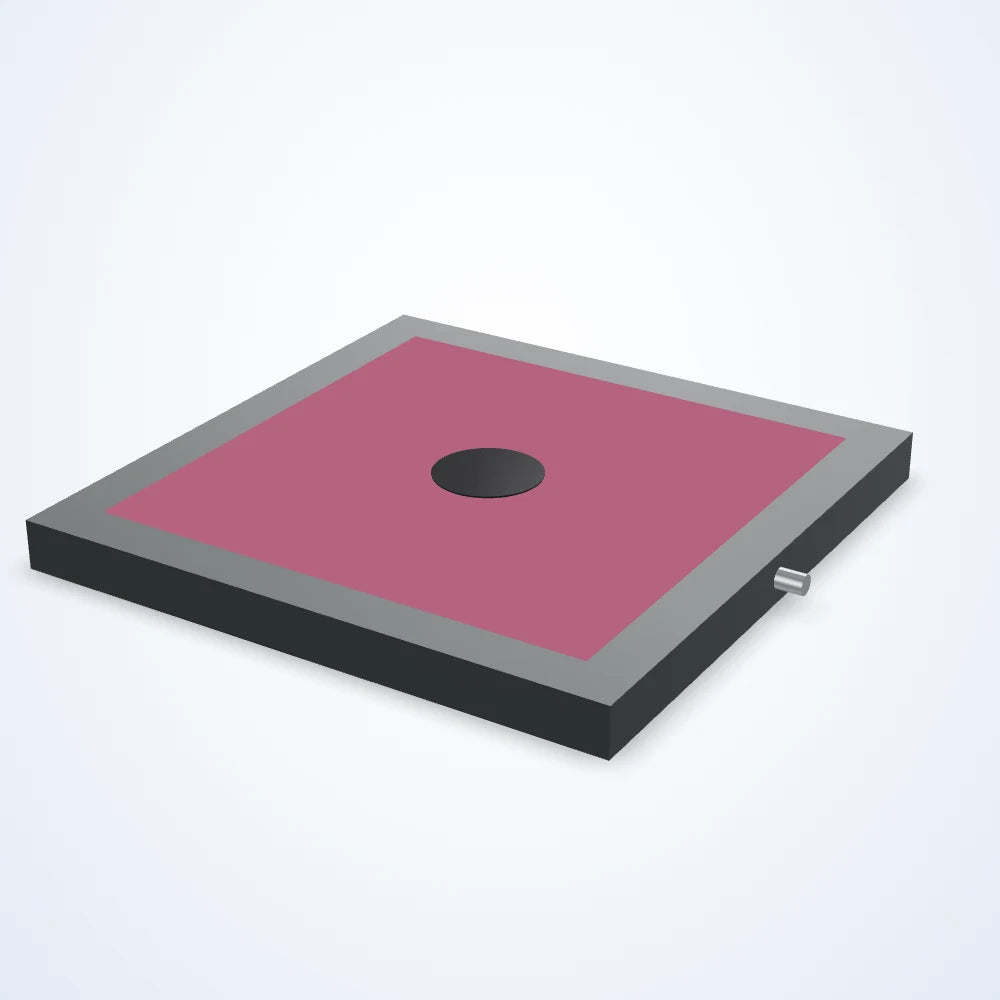

Flat dome light, 306-459 x 306-459 mm lit area (LS-FDL-0010)
Model LS-FDL-0010
- ColourWhite, Red, Green, Infrared, Blue
- Voltage24 VDC
- AngleDiffused
- Wavelength850 nm
from $1,369.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 10 available
Configuration LS-FDL-0010-01 $1,369.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Flat dome (shadowless) light: diffuse on-axis illumination from a thin panel with a camera viewport, for flat shiny parts and labels under film. 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour, lit length, length, width below (10 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FDL-0010 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Overcurrent Strobe |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 10 / 100 (by configuration) |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Lens / beam angle | Diffused |
|---|---|
| Diffused | Diffused |
Environment and compliance
| Operating temperature | -18 to 40 °C |
|---|---|
| IP rating | IP50 |
| Storage temperature | -20 to 60 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Maximum constant on current (mA) | 1260 / 1980 (by configuration) |
| Maximum current (overcurrent strobe) (mA) | 1260 / 1980 (by configuration) |
| Maximum input power constant on (W) | 30.2 / 47.5 (by configuration) |
| Maximum input power overcurrent strobe (W) | 30 / 48 (by configuration) |
| Maximum overcurrent strobe duration (ms) | 30 (by configuration) |
| Maximum overcurrent strobe duty cycle (%) | 10 / 100 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 4000 |
| Maximum overcurrent strobe latency (µs) | 6 |
| Minimum overcurrent strobe duration (µs) | 10 / 30 (by configuration) |
| NPN trigger current (mA) | 14 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 17.6 |
| PNP trigger voltage (V) | 4-24 VDC |
Mechanical
| Lit width (mm) | 306 / 459 (by configuration) |
|---|---|
| Height (mm) | 30 |
| Viewport diameter (mm) | 65 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
Other models in the Flat dome light series, 30 mm high, 5 Pin M12 Male A-Coded (S05) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FDL-0009 | 306-459 x 306-459 mm | $1,369.00 Quote | Built to order: ships in about 1-2 weeks | View |
