150 x 100 mm Edge-Lit Through-Hole LED Backlight (LS-FCK-150X100-T40)
Model LS-FCK-150X100-T40
- ColourRed, Green, Blue, White
- Emitting area150x100 mm
- Size185x135x9.5 mm
- Voltage24 V
- Power11 W
$149.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?

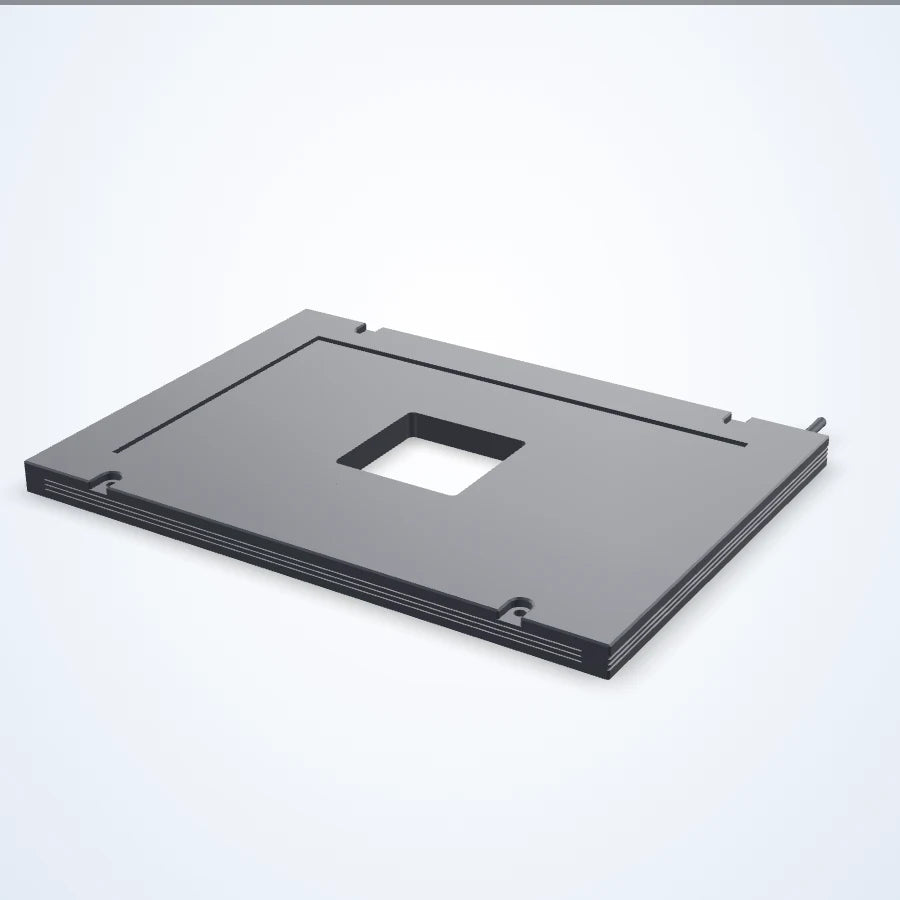

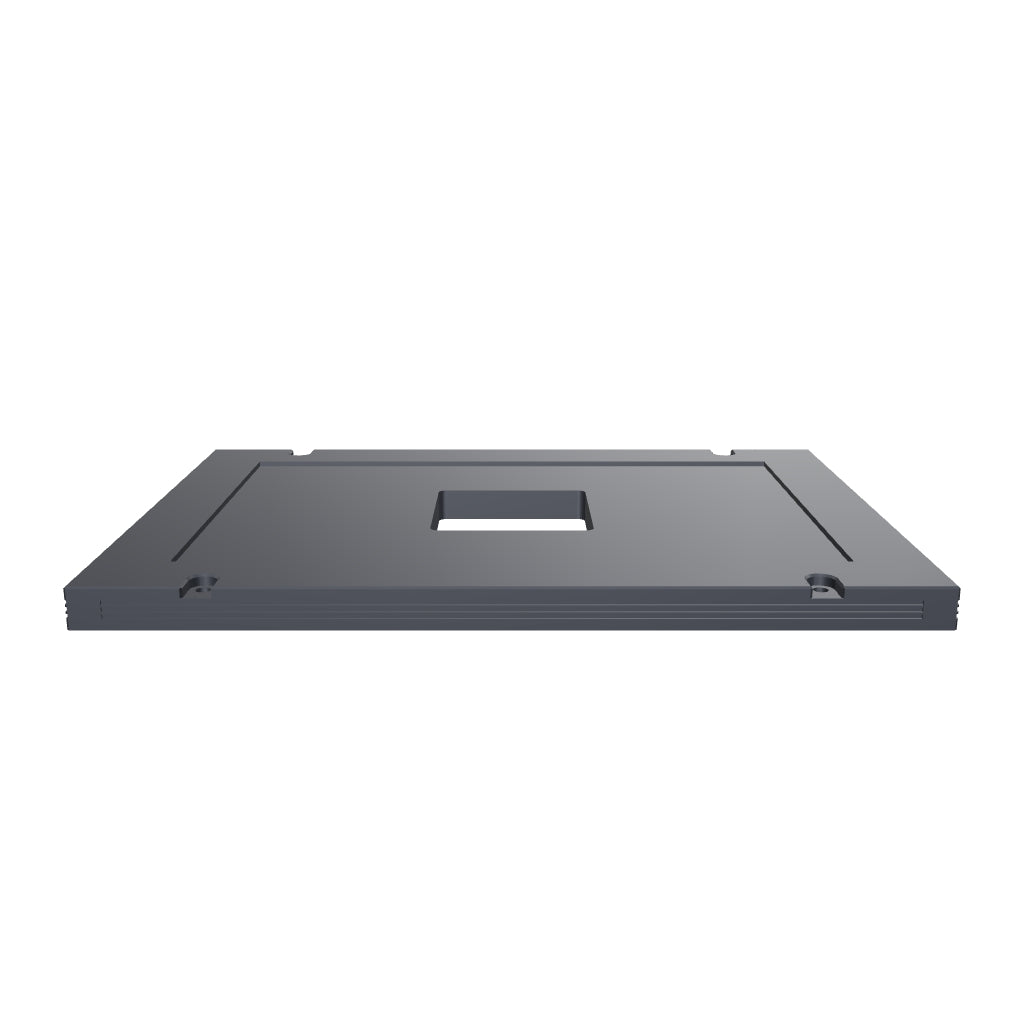

150 x 100 mm Edge-Lit Through-Hole LED Backlight. Edge-lit backlight (LED + light-guide plate) with a central through-hole so the camera looks through the light onto the part below; square (T) or round (D) hole, 9.5 mm thick.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FCK-150X100-T40 |
|---|
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 150x100 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 7.4 |
| Power W/B/G (W) | 11 |
Mechanical
| Hole size (mm) | 40x40 |
|---|---|
| Outer size L x W x H (mm) | 185x135x9.5 |
| Thickness (mm) | 9.5 |
| Mounting | X-Φ3.2 through holes (installation); 4-6 depth 3 |
| Shipping weight (estimated) | 0.45 kg |

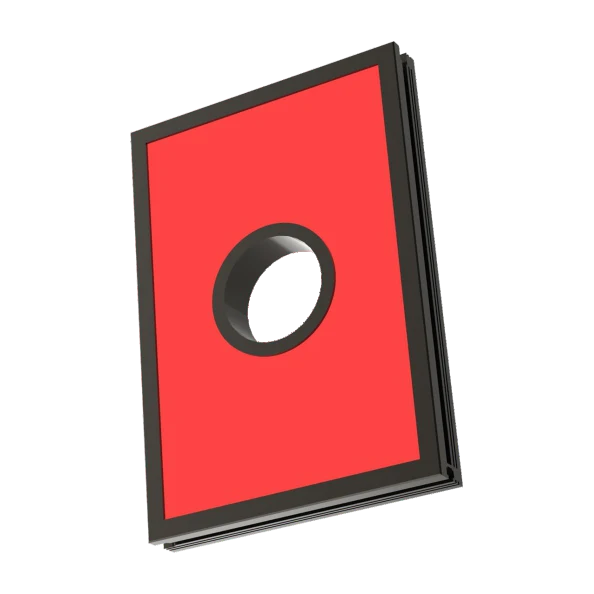

Photo shows a representative model of this series; see the specifications for this model.

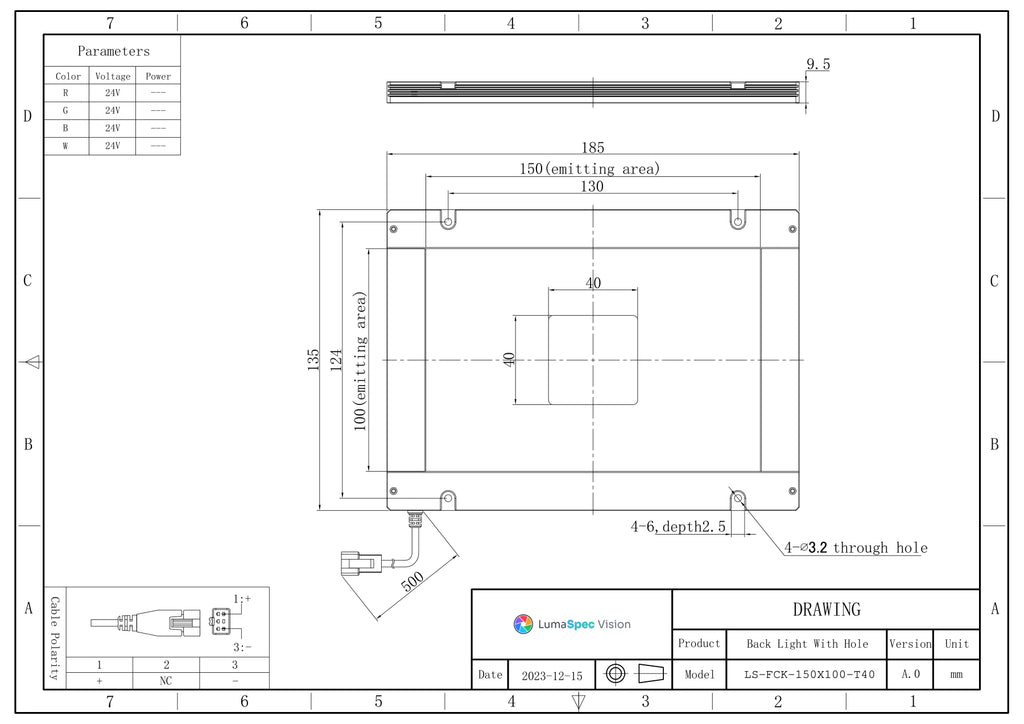

Mounting and drawing data
drawing table (LS-FCK-AXB; X = qty of 3.2 mm through mounting holes): X=4, C=130, D=124, hole size=40X40
