Representative photo of this series
Machine vision lenses
Fixed lens for FA, 2/3" 10MP, 50 mm, C-Mount (LS-FA5010A)
Model LS-FA5010A
- Focal length50 mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8-16
- Resolution10MP
- Field of view10.4° x 8.4°
$249.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Ultra-high imaging quality fixed FA lenses for 2.4 µm pixel sensors, resolution up to 10MP, with high relative illumination and a big aperture in a small, ultra-compact design.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FA5010A |
|---|---|
| F/NO | 2.8-16 |
| EFL | 50mm |
| MOD | 0.3m |
Optics
| Distortion | <0.1% |
|---|---|
| Image size | 2/3" |
| Image size (dia.) | 2/3" |
| Field of view angle 2/3" | 10.4° x 8.4° |
| Field of view angle 1/2" | 8.2° x 7.2° |
| Field of view angle 1/3" | 6.2° x 5.4° |
| Distortion (TV) 2/3" | <-0.1% |
| Focal length (mm) | 50 |
| Aperture | F2.8-16 |
Sensor and imaging
| Resolution | 10MP |
|---|---|
| Sensor format | 2/3" |

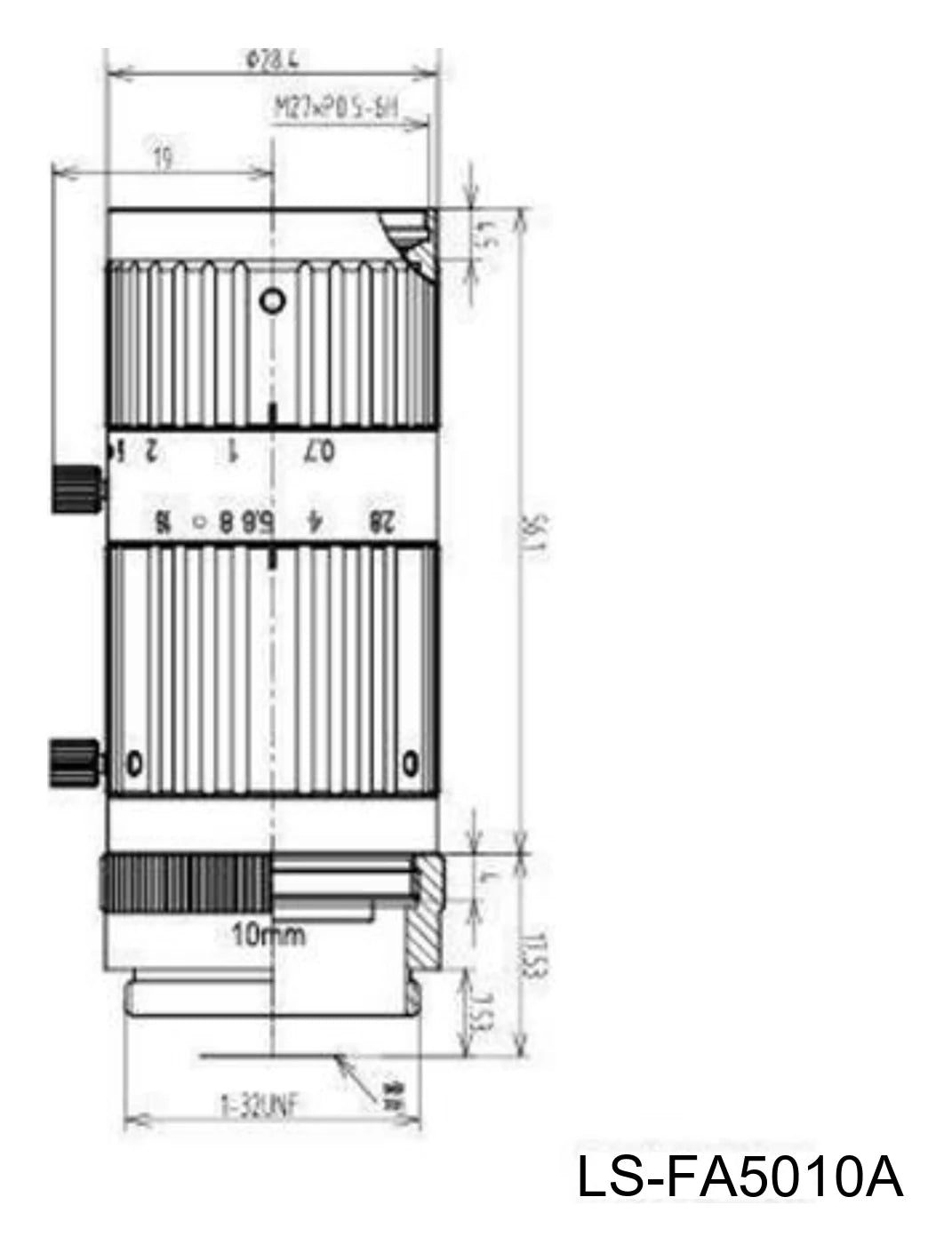

Mechanical
| Mount | C-Mount |
|---|---|
| Filter size | M27×P0.5 |
| Shipping weight | 0.38 kg |
Other models in the Fixed lens for FA, 2/3" 10MP series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FA0810A | 8 mm, 2/3", C-Mount | $189.00 | 3 in stock | View |
| LS-FA1210A | 12 mm, 2/3", C-Mount | $199.00 | 5 in stock | View |
| LS-FA1610A | 16 mm, 2/3", C-Mount | $199.00 | 3 in stock | View |
| LS-FA2510A | 25 mm, 2/3", C-Mount | $209.00 | 5 in stock | View |
| LS-FA3510A | 35 mm, 2/3", C-Mount | $229.00 | 5 in stock | View |
