Machine vision lenses
Fixed lens for FA, 2/3" 5MP, 50 mm, C-Mount (LS-FA5002D)
Model LS-FA5002D
- Focal length50 mm
- MountC-mount
- Sensor2/3"
- ApertureF1.4-C
- Resolution5MP
- Field of view10.46° x 7.86°
$159.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 or a formal quote?
5MP fixed lenses for FA, suitable for 2MP, 3MP and 5MP cameras, with high relative illumination and a big aperture; focus range from 0.1 m to infinity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FA5002D |
|---|---|
| F/NO | 1.4-16 |
| EFL | 50mm |
| MOD | 0.3m |
Optics
| Distortion | <-0.8% |
|---|---|
| Image size | 2/3" |
| Image size (dia.) | 2/3" |
| Field of view angle 2/3" | 10.46° x 7.86° |
| Field of view angle 1/2" | 7.6° x 5.27° |
| Field of view angle 1/3" | 5.7° x 4.3° |
| Distortion (TV) 2/3" | <-0.8% |
| Focal length (mm) | 50 |
| Aperture | F1.4-C |
Sensor and imaging
| Resolution | 5MP |
|---|---|
| Sensor format | 2/3" |

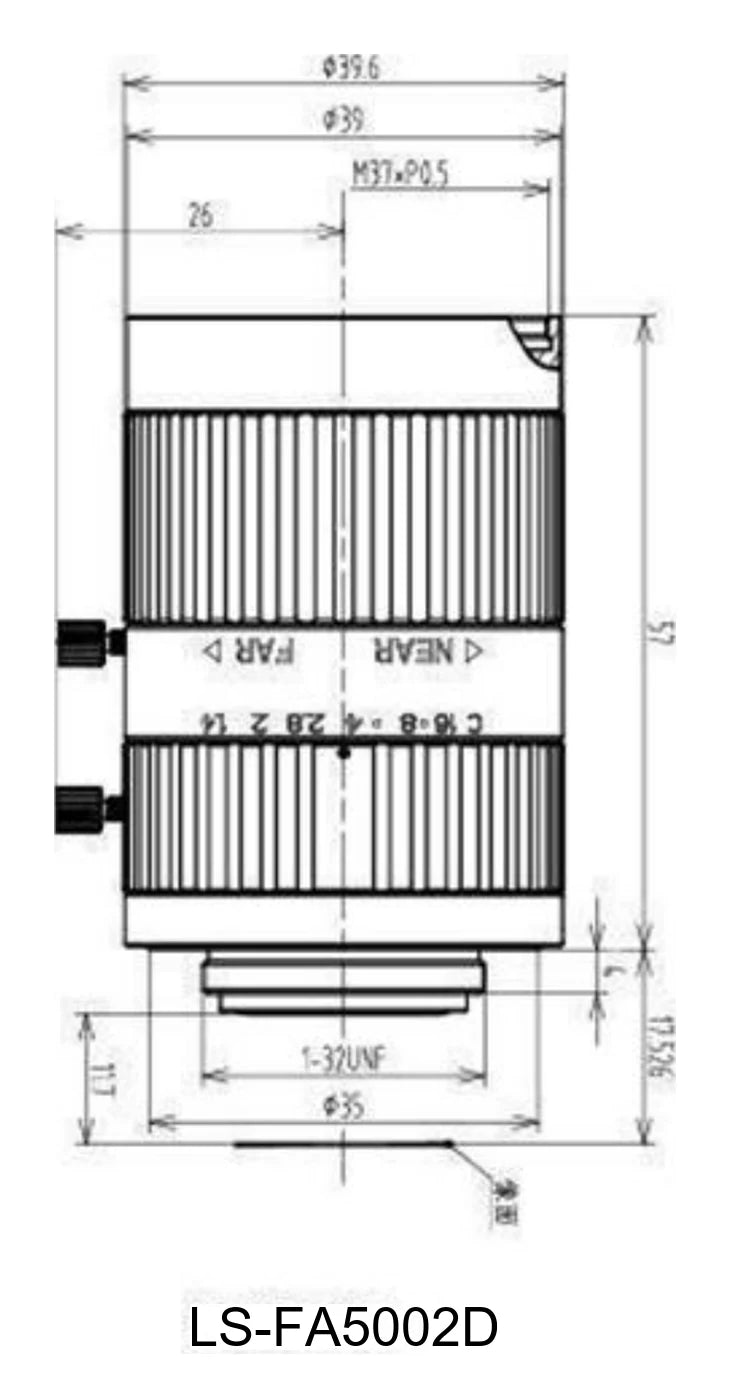

Mechanical
| Mount | C-Mount |
|---|---|
| Filter size | M37×P0.5 |
| Shipping weight | 0.38 kg |
Other models in the Fixed lens for FA, 2/3" 5MP series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FA0802D | 8 mm, 2/3", C-Mount | $99.00 | 3 in stock | View |
| LS-FA1202D | 12 mm, 2/3", C-Mount | $109.00 | 3 in stock | View |
| LS-FA1602D | 16 mm, 2/3", C-Mount | $109.00 | 2 in stock | View |
| LS-FA2502D | 25 mm, 2/3", C-Mount | $129.00 | 4 in stock | View |
| LS-FA3502D | 35 mm, 2/3", C-Mount | $139.00 | 3 in stock | View |
