2-Channel High-Power Digital LED Light Controller, 16-48V (LS-DPC48500-2H)
Model LS-DPC48500-2H
- Output16~48V
- InputAC100-240V 50/60Hz
- Total output10.5A
- Channels2 channels
$569.00
In stock - ships the same business day (5 available, order by 2 PM ET)
2.1 kg shipping weight
Volume pricing, Net 30 or a formal quote?
2-Channel High-Power Digital LED Light Controller, 16-48V. LS-DPC series digital controller mainly powers 48V LED lights and can be controlled from the front panel or by serial communication (remote control). It provides 256 brightness steps (0-255) and a built-in external trigger function for easy on-off switching.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DPC48500-2H |
|---|---|
| Control method | Buttons, RS232 |
| Dimming | 256 levels (0-255) per channel |
| Keys | CH = change channel, + = increase, - = decrease brightness |
| Ethernet | not listed in catalog |
Interfaces and I/O
| Display | Shows channel and level (e.g. 1 125); H1 = constant on (trigger turns off), H0 = constant off (trigger turns on) |
|---|---|
| Serial Port | RS232, DB9 female ('DP9' as printed), ASCII data |
| Output connector | 4-pin round: 48V light +/-, 24V fan +/- |
Computing
| Memory | Settings memorised at power off |
|---|
Electrical
| Output CH | 2CH |
|---|---|
| Input voltage | AC100-240V 50/60Hz |
| Output voltage | 16~48V |
| Single CH current | 7A |
| Total output current | 10.5A |
| External trigger voltage | 5-24V |
| Trigger port | High speed optocoupler isolated; common positive or negative connection; COM = common, numbers = channel inputs, NC = blank, +24V/GND = DC 24V output |
| Protection | Overload protection |
Mechanical
| Shipping weight (estimated) | 2.10 kg |
|---|
Mounting and drawing data
Panel label: 200-240 V, 50/60 Hz, 700 VA (the specification table gives AC100-240V); length 290 mm, panel face 130 x 136 mm.
Other models in the High-power digital controller (DPC, 48V) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|

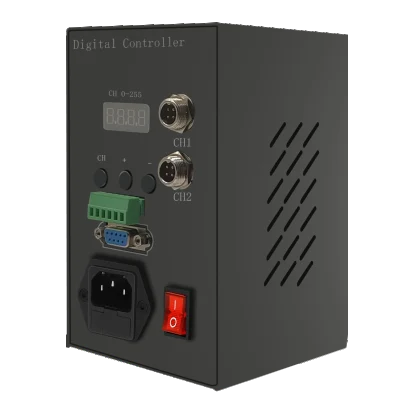

| LS-DPC48150-2H | 2 ch, 22-48V | $359.00 | 3 in stock | View |
