Dome lights

193 mm Dome shadowless light, power 20.2 W (LS-DOM-0047)

Model LS-DOM-0047

ColourRed, Green, Blue, White
Emitting area193 mm
Voltage24 V
Min. diameterdia. 116

$819.00

In stock - ships the same business day (3 available, order by 2 PM ET)

1.25 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Dome shadowless light with high uniformity and a large emitting area; lightweight design with high luminance, frame-fixed construction for more uniform stress and long-term reliability; flexible outline can be customized.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-DOM-0047
FOV	1~150 mm

Optics

Recommended working distance	5~50 mm

Interfaces and I/O

Cable length	500 mm
Extension cable options	PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white	6600 K
Emitting surface dia. (mm)	193

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory default luminance)

Electrical

Voltage	24 V
Adapted controllers	Strobe controller, analog controller, digital controller
Power (R)	20.2W
Power (G/B/W)	30.2W

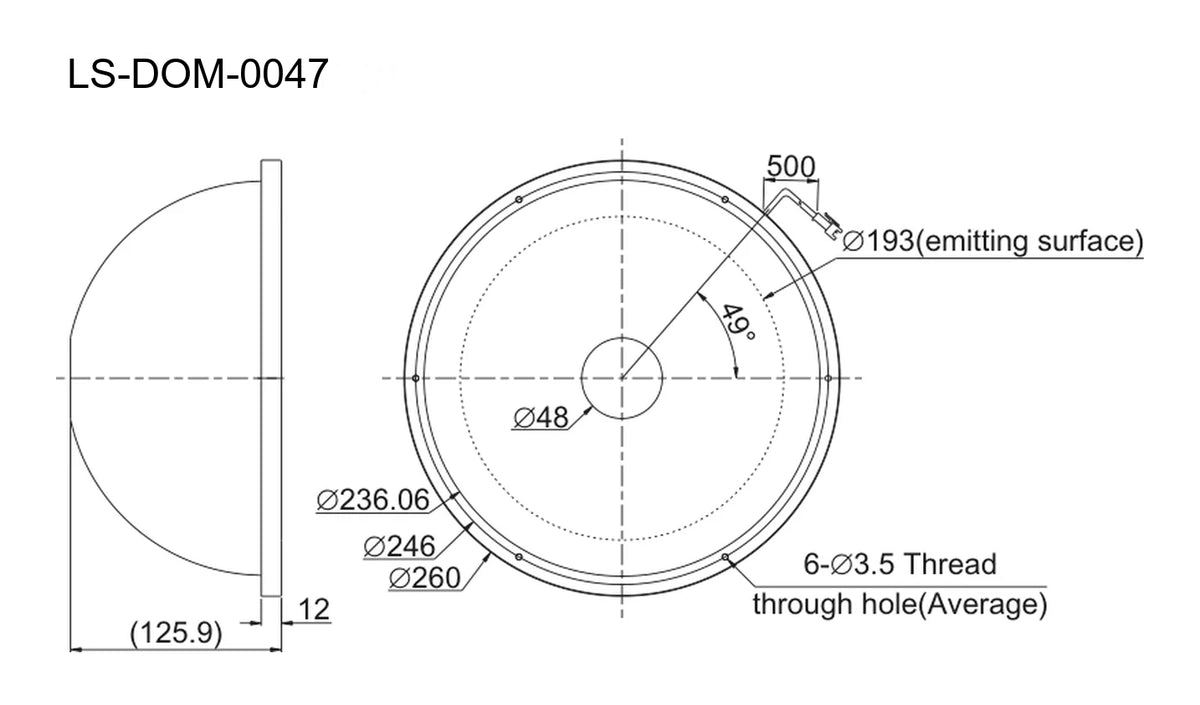

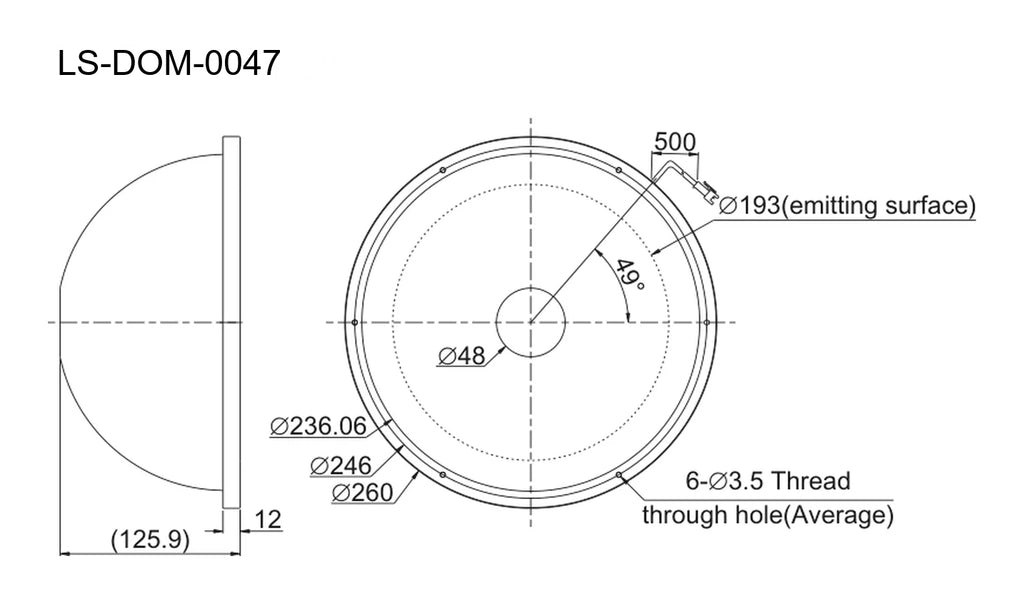

Mechanical

Min. diameter	dia. 116
Max. diameter	dia. 260
Weight	924 g

Downloads

Datasheet (PDF)LS-DOM-0047 · 1.9 MB

Features

High uniformity, large emitting area
Lightweight design, high luminance
Frame-fixed method: more uniform stress, firmer and more reliable over long use
Flexible outline, can be customized
New version LS-DOM-0044-W compared with old LS-DM100-W (LWD=140, FOV 32x24 mm, luminance 80%)
Customizable: Multi-area control, Colour & colour temperature, Cable length, Installation method, Combined light
UV & IR versions can be customized as required

Applications

Reflective and uneven surface inspection
IC surface character inspection
Condenser surface defect inspection
Ring-pull can defect inspection
Imaging example: dirty part inspection on a paper cup (LS-DOM-0045-W), uniformly whitened background extracts the black dirt
