Representative photo of this series

Dome lights

138 mm Dome shadowless light, power 13.4 W (LS-DOM-0046)

Model LS-DOM-0046

ColourRed, Green, Blue, White
Emitting area138 mm
Voltage24 V
Min. diameterdia. 116

$559.00

Ships in 2-3 weeks

0.9 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Dome shadowless light with high uniformity and a large emitting area; lightweight design with high luminance, frame-fixed construction for more uniform stress and long-term reliability; flexible outline can be customized.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-DOM-0046
FOV	1~150 mm

Optics

Recommended working distance	5~50 mm

Interfaces and I/O

Cable length	500 mm
Extension cable options	PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)

Light

Colour temperature of white	6600 K
Emitting surface dia. (mm)	138

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory default luminance)

Electrical

Voltage	24 V
Adapted controllers	Strobe controller, analog controller, digital controller
Power (R)	13.4W
Power (G/B/W)	22.1W

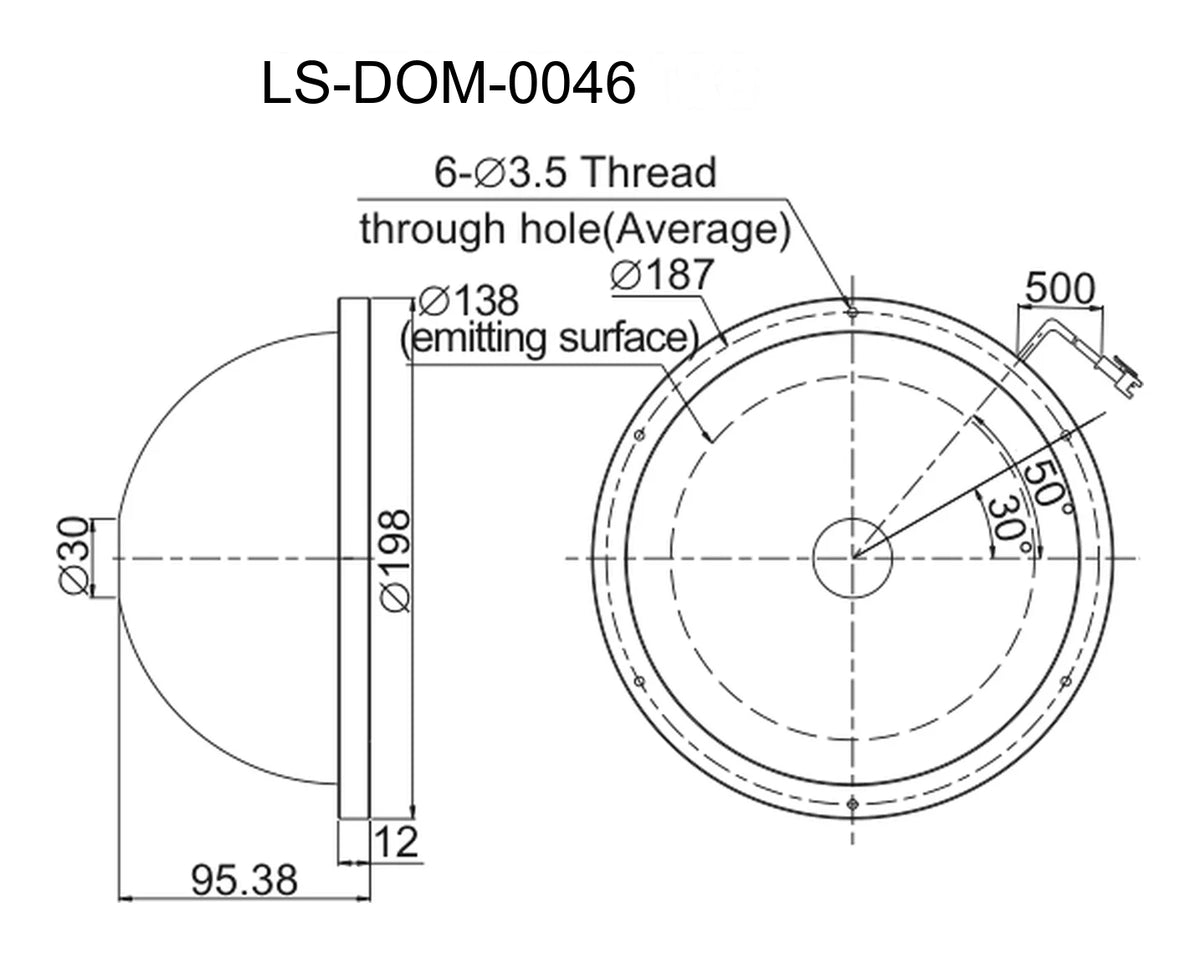

Mechanical

Min. diameter	dia. 116
Max. diameter	dia. 260
Weight	612 g

Downloads

Datasheet (PDF)LS-DOM-0046 · 1.9 MB

Features

High uniformity, large emitting area
Lightweight design, high luminance
Frame-fixed method: more uniform stress, firmer and more reliable over long use
Flexible outline, can be customized
New version LS-DOM-0044-W compared with old LS-DOM-S13 series (LWD=140, FOV 32x24 mm, luminance 80%)
Customizable: Multi-area control, Colour & colour temperature, Cable length, Installation method, Combined light
UV & IR versions can be customized as required

Applications

Reflective and uneven surface inspection
IC surface character inspection
Condenser surface defect inspection
Ring-pull can defect inspection
Imaging example: dirty part inspection on a paper cup (LS-DOM-0045-W), uniformly whitened background extracts the black dirt
