Coaxial lights
40 x 44 mm High brightness coaxial light (LS-CXL-0201)
Model LS-CXL-0201-R
- ColourRed, Green, Blue, White
- Wavelength red620-630 nm
- Wavelength green520-530 nm
- Wavelength blue465-475 nm
$199.00
Ships in 2-3 weeks
0.35 kg shipping weight
By placing an order you agree to our Terms of Service, Shipping Policy and Refund Policy. Ship and delivery dates are estimates and are not guaranteed.
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-cxl-0201
A 40 x 44 mm emitting area makes LS-CXL-0201 the smallest of the 5 emitting-area sizes in its series, for the smallest fields of view (for fields of view up to about 40 x 44 mm). It is 98.5 mm long, 48 mm wide and 47 mm high.
High-brightness coaxial light, 4-5 times brighter than standard coaxial lights, with air-cooled heat dissipation. Because of the heat dissipation the housing is larger than a standard coaxial light of the same luminous area.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-CXL-0201-R |
|---|---|
| Optional accessories | Extension cable |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| Cooling | Air cooling |
| L (mm) | 98.5 |
| W (mm) | 48 |
| H (mm) | 47 |
Interfaces and I/O
| Cable length | 500 mm |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Luminous size (mm) | 40 x 44 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Recommended controller | LS-CTL-0168 |
|---|---|
| Power R (W) | 18 |
| Power G/B/W (W) | 18 |
Mechanical
| Shipping weight | 0.35 kg |
|---|

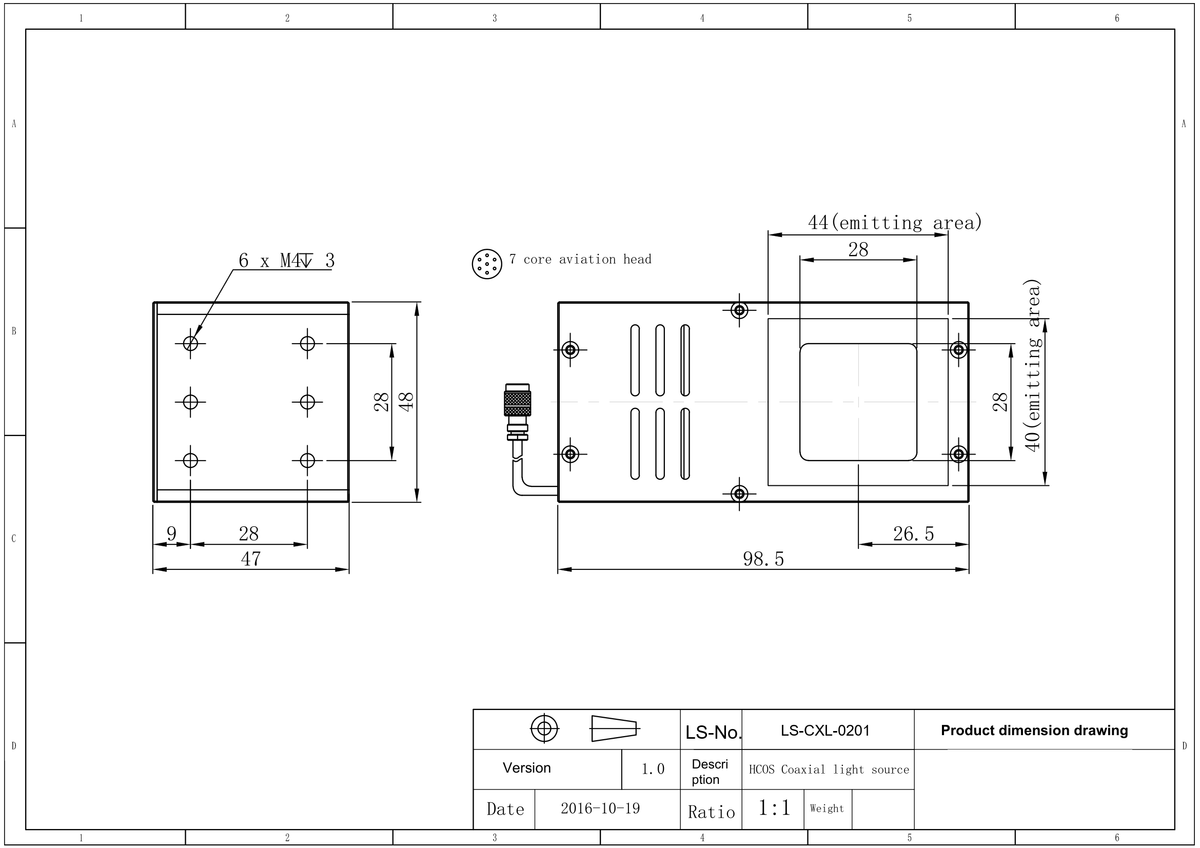

Size
To scale, from the printed dimensionsFeatures of the LS-CXL-0201
- Needs a controller channel or supply of 18 W or more
- A smaller emitting area than the 60 x 60 mm version
Shared by the whole High brightness coaxial light (LS-CXL-S30) series3 points
- Because of the heat dissipation, the light is larger than a standard coaxial light of the same luminous area
- Air cooling heat dissipation
- On-axis light over a field: flat shiny surfaces look bright, scratches and marks dark
Applications
- Flat, shiny parts in a field up to about 44 x 40 mm (its 44 x 40 mm luminous size)
- For all coaxial optical applications
- For high-speed flight photography
- Inspection of reflective surfaces, including dents, damage and defects
- Printed circuit board character and pattern inspection
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Build a system with this partConfigure a systemAsk an engineer
Engineering data
Drive and fit the LS-CXL-0201
Emitting area40 × 44 mmKeep the camera's field of view inside it for an even background.
Operating temperature0 to 40 °C
Mounting and installation

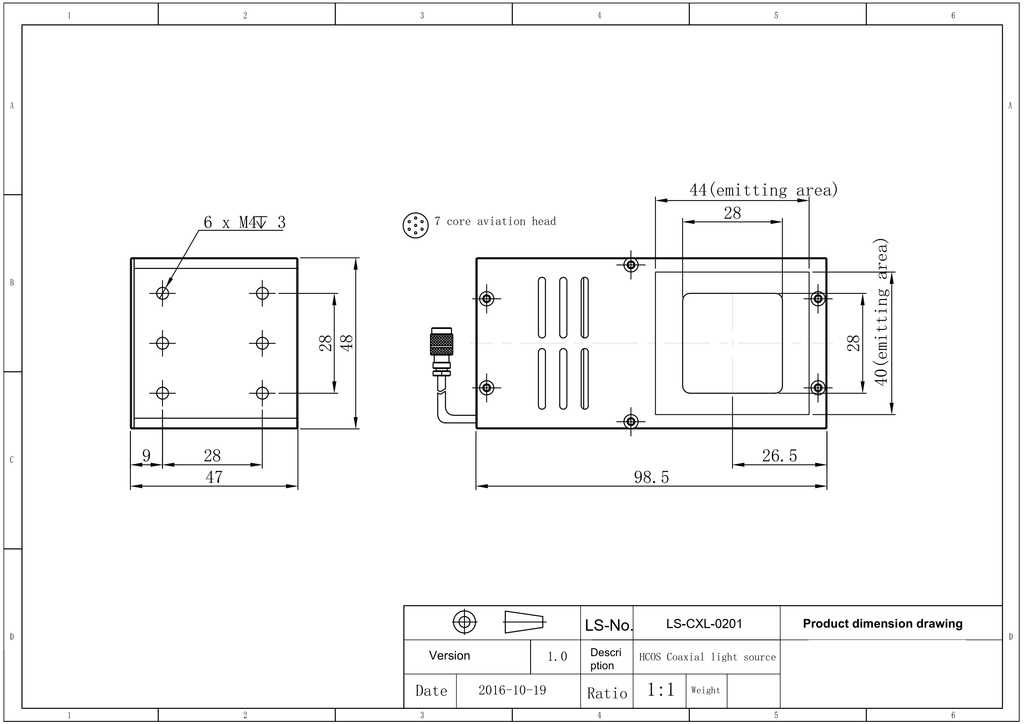

| Mounting | See the dimension drawing |
|---|---|
| Cable | 0.5 m |
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part40 x 44 mm High brightness coaxial light (LS-CXL-0201)LS-CXL-0201-R · Red
$199.00
-
Controllers for this light
Constant current controller (150 W), 2 ch (LS-CTL-0168)
$329.00
Set total $528.00
Added to your quote list.
Controllers for this light
Recommended
Application studies
Where the LS-CXL-0201 is used
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
The LS-CXL-0201 was used in this test
Plastics, rubber and ceramics
Plastic shell edge break
Separate the part's designed steps from real edge loss before setting a limit.Light in sourceLS-CXL-0201 · redExplore the study
Set up with the LS-CXL-0006, the same type of part
Electronics and devices
Reflective tablet-shell edge under coaxial light
A clear contour still needs an unambiguous physical datum.Proposed light housing (spec)111 × 50 × 50 mmExplore the study
Set up with the LS-CXL-0126, the same type of part
Electronics and devices
Watch display module in IR
Use the round outline for position and the flex tail for rotation.Light in sourceLS-CXL-0126 · 940 nmExplore the study
Before you buy
Questions about the LS-CXL-0201
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which controller drives the LS-CXL-0201?
Fit-tested controllers: LS-CTL-0168 (maker-recommended).
How much power does the LS-CXL-0201 draw?
It draws 18 W (red, green, blue, white).
What area does the LS-CXL-0201 light?
The luminous size is 40 x 44 mm.
What temperature range is the LS-CXL-0201 rated for?
Its operating temperature range is 0 to 40 °C.
Learn
Guides for this part
Engineering guides picked for the LS-CXL-0201: how to choose it, set it up and get a better image.
Connector pin lighting for bright, recessed contactsConnector pin lighting usually starts with near-axis coaxial illumination when contacts sit deep inside narrow holes.
Which LED colour gives the best contrast in machine visionPick the light colour that makes the feature and its background reflect differently.
White LED color temperature: specify repeatable inspectionWhite LED color temperature describes the apparent warmth of illumination, not its complete spectrum or its effect on a camera.
Other models in the High brightness coaxial light (LS-CXL-S30) series
See all 5 models in the series- The lowest power R in this series (18 to 164 W)
- The lowest power G/B/W in this series (18 to 164 W)
How this model compares
- Luminous size 40 x 44 mm, the smallest of 5 different sizes in the series (40 x 44 to 300 x 60 mm); next larger area 60 x 60 mm (LS-CXL-0202).
- Up to 18 W over a 40 x 44 mm luminous size works out to about 102 W per 100 cm²: only 2 of the 5 coaxial lights in the series are higher.
- Draws up to 18 W; its listed controller LS-CTL-0168 (2 channels, 150 W) drives up to 2 of these lights, one per channel.
- Compared with LS-CXL-0203: power (red) 18 W here, 53 W there; length 98.5 mm here, 136 mm there.
Swipe to see all columns
| Model | Length | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0201This model | 98.5 mm | $199.00 | Ships in 2-3 weeks | |
| LS-CXL-0202 | 126 mm | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0203 | 136 mm | $319.00 | Ships in 2-3 weeks | View |
| LS-CXL-0204 | 206 mm | $609.00 | Ships in 2-3 weeks | View |
| LS-CXL-0205 | 310 mm | $2,269.00 | Ships in 2-3 weeks | View |
