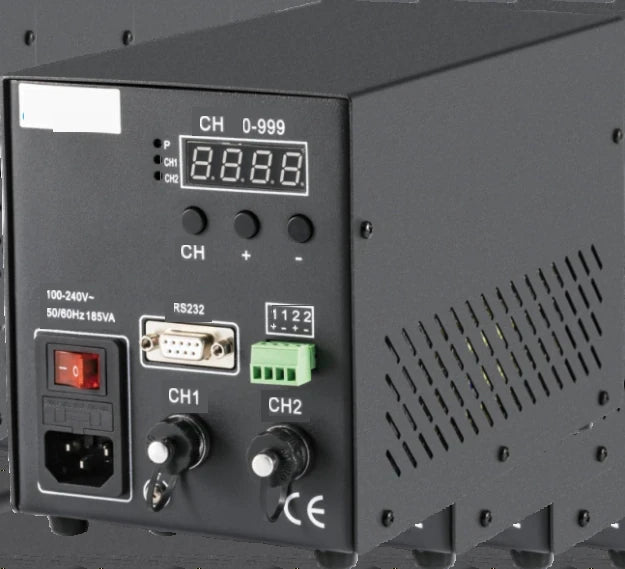

Constant current controller (LS-CTL-S39 series, 150 W), 2 ch, 150 W (LS-CTL-0168)

Model LS-CTL-0168

  • Channels2
  • Output48V
  • InputAC100-240V 50/60Hz
  • Total output150 W
$329.00

In stock - ships the same business day (4 available, order by 2 PM ET)

2.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Constant current controller (LS-CTL-S39 series, 150 W), 2 ch, 150 W (LS-CTL-0168)LS-CTL-0168

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Two-channel constant current controller with 1000-step brightness adjustment and an opto-isolated high-speed external trigger. The constant current output keeps brightness stable and prolongs light life; suitable for the LS-CXL-S30 series of coaxial lights.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0168
Drive methodConstant current
CoolingForced cooling
Light control modeVariable current control; Panel key / RS232
Front panel rating label100-240V~ 50/60Hz 185VA
Matching lightsLS-CXL-S30 high-brightness coaxial lights

Light

Brightness steps1000 (0-999)

Environment and compliance

Operating temperature/humidity0~40 °C, 20~85% RH (non-condensing)
Storage temperature/humidity-20~60 °C, 20~85% RH (non-condensing)

Electrical

Input voltageAC100-240V 50/60Hz
Channels2
Output voltage48V
Max output2.8A (single channel maximum current 1.4A)
Total power150W
Output portdia.12
External trigger voltageDC5V~24V (current about 5.6mA)
Trigger delay<50us
External trigger port1+ / 1- (CH1 external trigger input positive / negative), 2+ / 2- (CH2 external trigger input positive / negative)
Output portdia.12 7-pin aviation connector
Total output (W)150

Mechanical

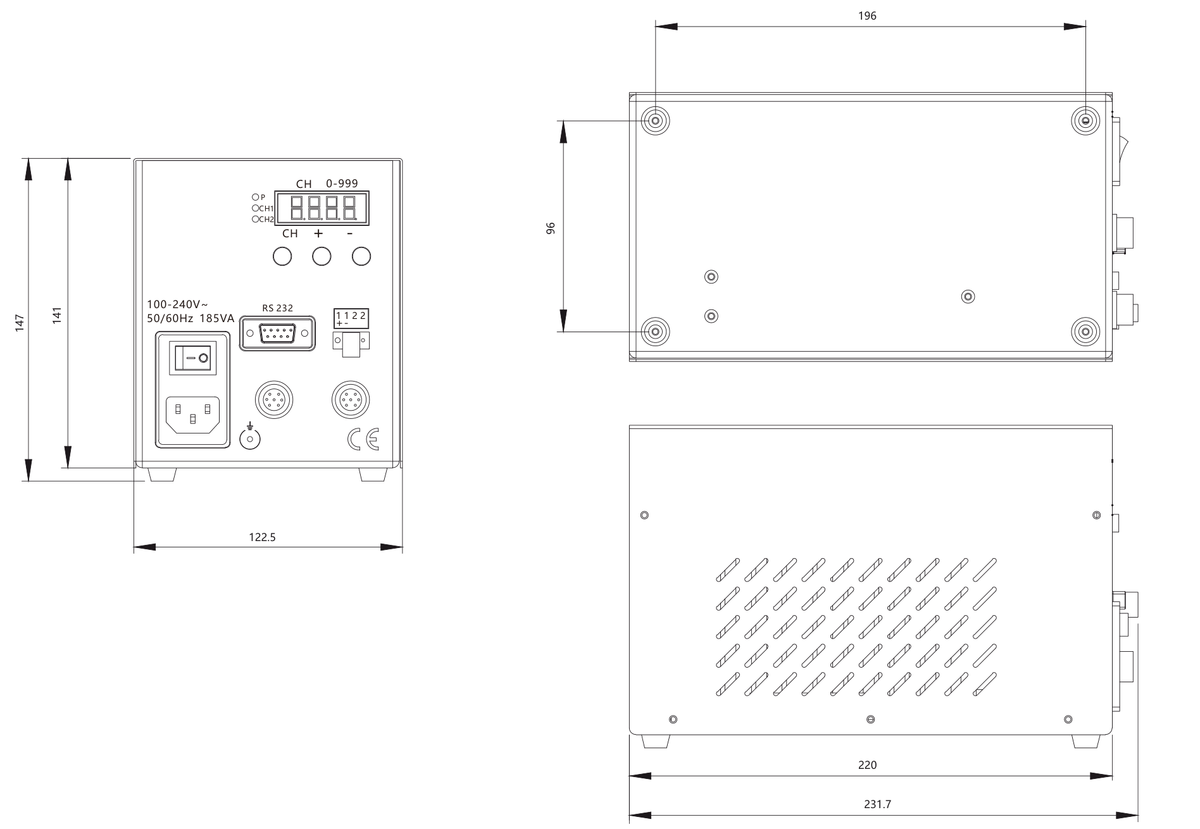

Dimensions (mm)231.7 L x 122.5 W x 147 H (body 220 L, 141 H; mounting holes 196 x 96)
Weight<2300g
