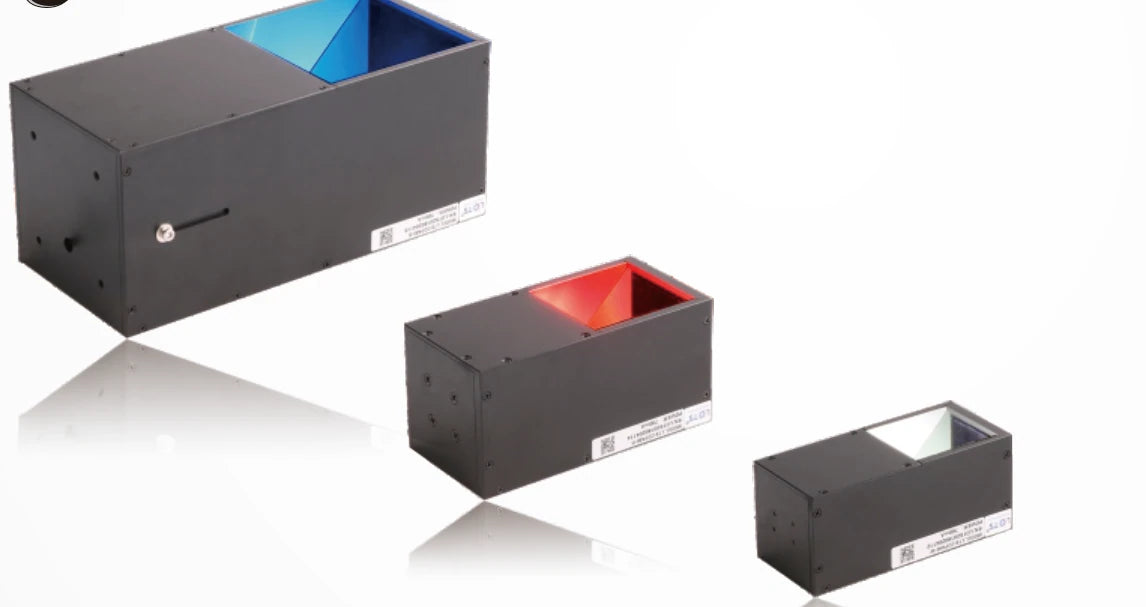

Representative photo of this series
Coaxial lights
38 x 38 mm Collimated coaxial light (LS-CXL-0113)
Model LS-CXL-0113
- ColourRed, Green, Blue, White
- Emitting area38 x 38 (window), emitting 50 x 50
- SizeL121.5xW60xH60(mm)
- Power3W
$169.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Coaxial light with a special optical path design for high parallelism, using high-power LEDs for high luminance; the uniform light rays are easy for software to recognize.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0113 |
|---|---|
| Light spot (LS-CXL-0113-W) | WD 25: dia. 50, 16350 lx; WD 100: dia. 52, 9330 lx; WD 200: dia. 55, 6435 lx |
| Customizable | viewport, length and width, colour and colour temperature, cable length, installation method |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O
| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Cable polarity | 1: +, 2: -, 3: NC |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Emitting surface (mm) | 38 x 38 (window), emitting 50 x 50 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Adapted controller | Constant current controller |
|---|---|
| Power, R (W) | 3 |
| Power, G/B/W (W) | 3 |
| Current | 1000mA |
| Power | 3W |
| Supply voltage (derived) | 24 V DC, derived: all 58 coaxial lights of this range that state a voltage are rated 24 V |
Mechanical
| Weight (g) | 432 |
|---|---|
| Mounting | 4-M3 depth 5 |

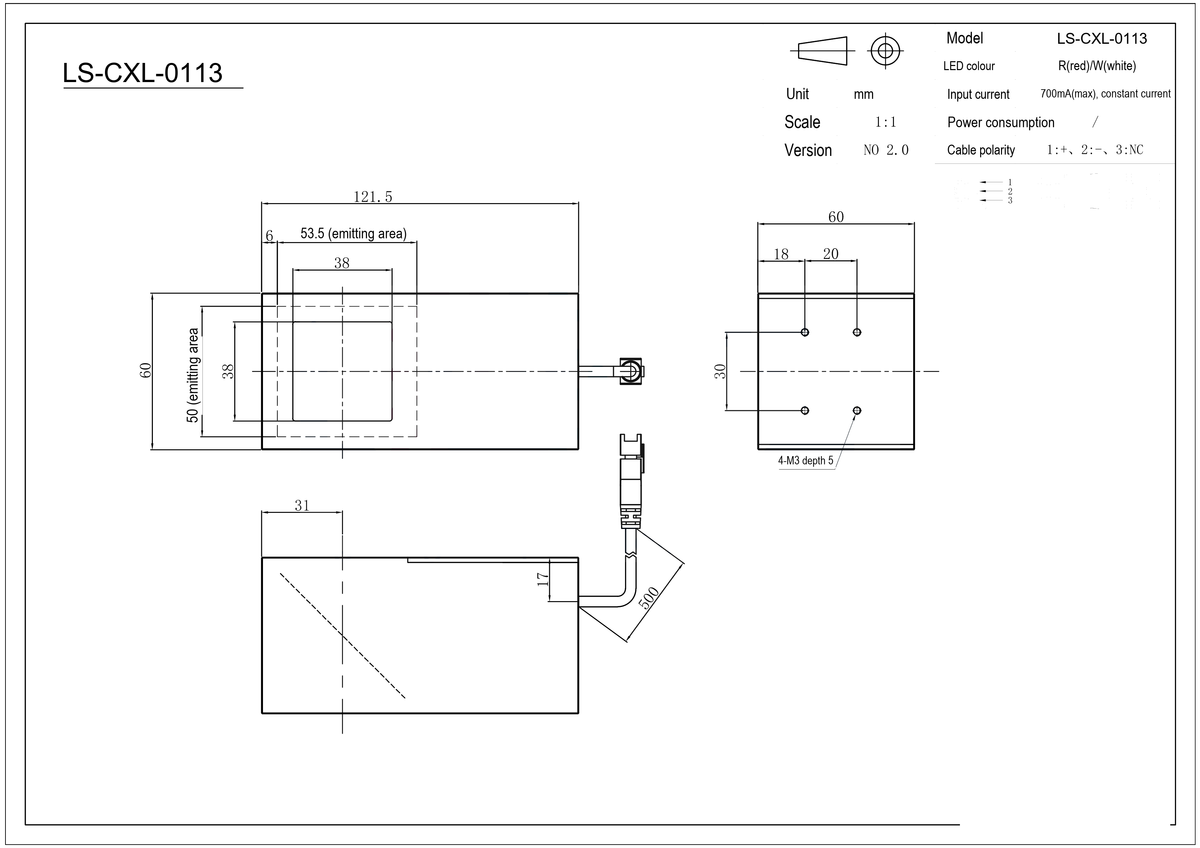

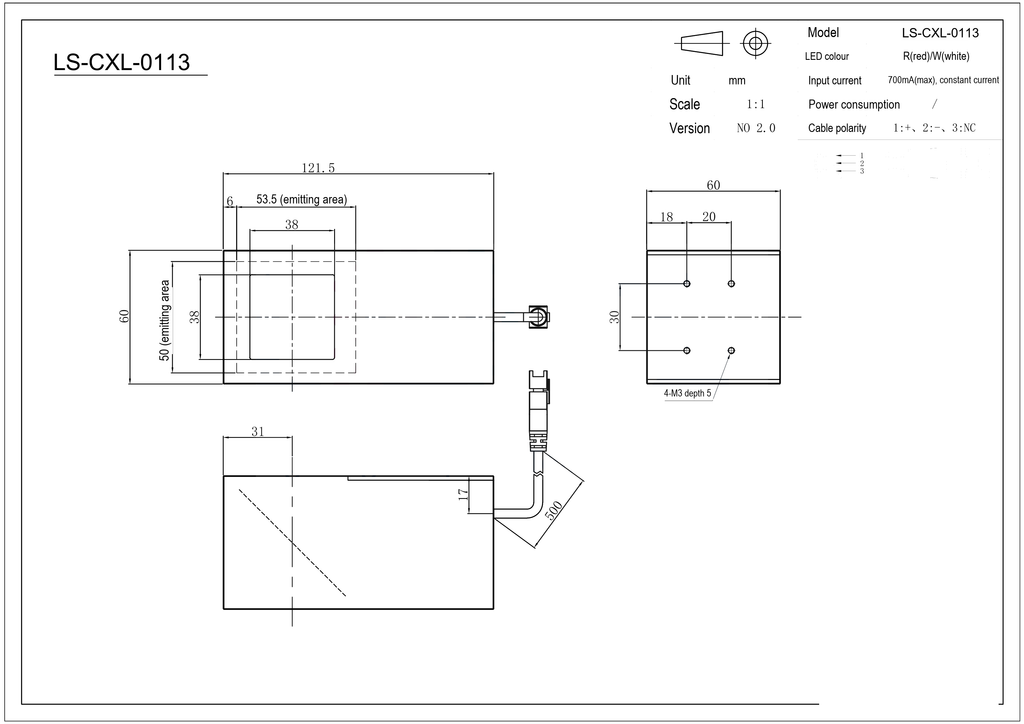

| Dimension | L121.5xW60xH60(mm) |
| Mounting holes | 4-M3 depth 5 |
Other models in the Collimated coaxial light (LS-CXL-S17) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CXL-0112 | 33 x 33 mm | $159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0114 | 70 x 70 mm | $319.00 | Ships in 2-3 weeks | View |
| LS-CXL-0115 | White · 100 x 100 mm | $1,139.00 | Ships in 2-3 weeks | View |
