Representative photo of this series

Light controllers

ABS analog controller, 4 ch, 120 W (LS-CTL-0507)

Model LS-CTL-0507

Channels4
Output24V
Total output120 W
Controlno
TriggerLevel trigger

$349.00

Ships in 2-3 weeks

0.7 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Controller section 'ABS analog controller' of the light controller selection manual (cards P19-P20).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0507
Working mode	0: normally off, 1: on
Manual page code	P20
Control	Analog knob (stepless)

Interfaces and I/O

Communication baud rate	no

Light

Connected light source type	10mA~1A 24V power supply
Brightness levels	Stepless
Luminous mode	Normally on / normally off

Environment and compliance

Operating temperature	-5~50 C

Electrical

Output voltage	24V
Number of channels	4
Built-in power supply	120W
Max input voltage	220VAC
Max output voltage	24V
Max current per channel	1A
Overheat protection	No
Short-circuit protection	No
Millisecond strobe time	no
Microsecond strobe time	no
Trigger mode	Level trigger
Driving mode	Stepless analog constant voltage
Total output (W)	120

Mechanical

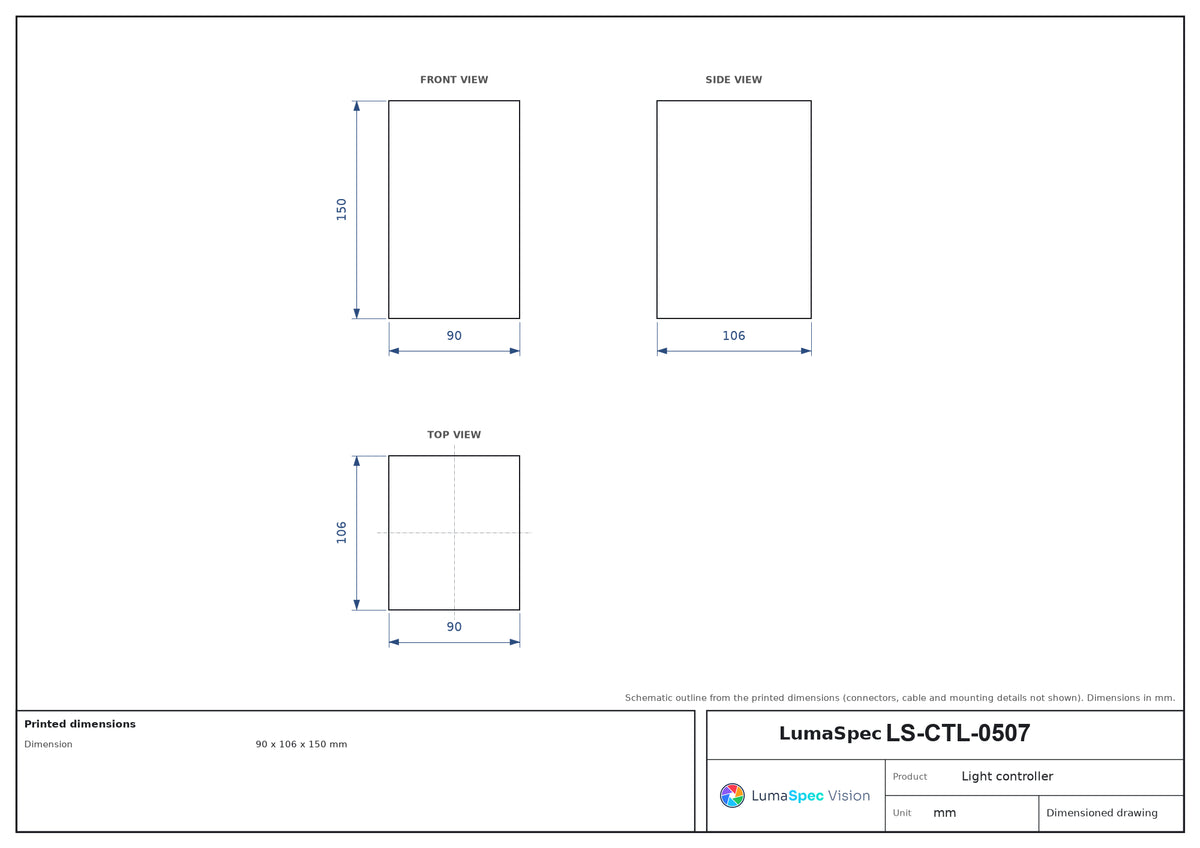

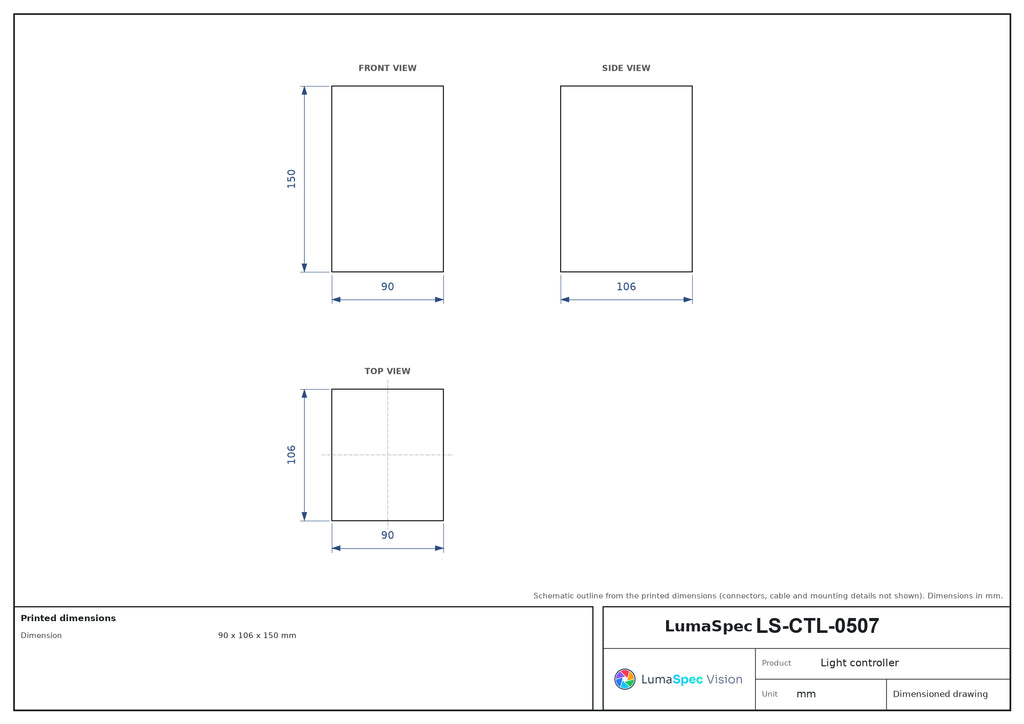

Dimension	90 x 106 x 150 mm
Mounting	Screw or C45 rail installation
Shipping weight	0.70 kg

Other models in the ABS analog controller (LS-CTL-S98) series

See all 3 models

Model	Size / key data	Price	Availability	Link
LS-CTL-0505	2 ch, 65 W	$259.00	Ships in 2-3 weeks	View
LS-CTL-0506	4 ch, 65 W	$319.00	Ships in 2-3 weeks	View
